BREMBO

Brembo 09.C499.1X Brake Disc

SKU: 09.C499.1X
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£132.89 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
ALPHARD / VELLFIRE (_H2_)
Description Cylinder Capacity Horse Power Year
3.5 (GGH20W, GGH20) 3456 CCM 280 HP 04/2008 - 12/2014
2.4 (ANH20W, ANH20) 2362 CCM 170 HP 05/2008 - 12/2014
3.5 (GGH20W) 3456 CCM 275 HP 04/2008 - 12/2014
2.4 (ANH20W) 2362 CCM 167 HP 04/2008 - 12/2014
ALPHARD / VELLFIRE (_H3_)
Description Cylinder Capacity Horse Power Year
3.5 (GGH30W, GGH30) 3456 CCM 275 HP From 02/2015
3.5 (GGH30, GGH30W) 3456 CCM 300 HP 10/2018 - 12/2023
PREVIA III (_R2_, _R5_)
Description Cylinder Capacity Horse Power Year
2.4 (ACR50_, ACR50R) 2362 CCM 170 HP From 10/2005
RAV 4 IV (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 D (ALA40_, ALA40R) 1998 CCM 124 HP 12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R) 1987 CCM 151 HP 12/2012 - 10/2018
2.2 D 4WD (ALA49) 2231 CCM 150 HP 12/2012 - 09/2019
2.0 (ZSA42) 1987 CCM 146 HP 12/2012 - 09/2019
2.0 D 4WD (ALA41_) 1998 CCM 124 HP 01/2013 - 11/2018
2.0 4WD (ZSA44_) 1987 CCM 151 HP 04/2015 - 10/2018
2.5 Hybrid 4WD (AVA44, AVA44_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 D (WWA42_) 1995 CCM 143 HP 10/2015 - 11/2018
2.5 Hybrid (AVA42_) 2494 CCM 197 HP 11/2015 - 11/2018
RAV 4 IV VAN (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi 4WD (ZSA44) 1987 CCM 152 HP 12/2012 - 11/2018
LEXUS
NX (_Z1_)
Description Cylinder Capacity Horse Power Year
200t (AGZ10_, AGZ10R) 1998 CCM 238 HP From 07/2014
200t AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 07/2014
300h (AYZ10_, AYZ10R) 2493 CCM 197 HP From 07/2014
300 AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 09/2017
300h AWD (AYZ15, AYZ15_, AYZ15R) 2494 CCM 197 HP From 07/2014
300h AWD (AYZ15) 2494 CCM 200 HP From 11/2018
300h (AYZ10_, AYZ10R) 2494 CCM 197 HP From 11/2014
RX (_L1_)
Description Cylinder Capacity Horse Power Year
350 AWD (GGL15_, GGL15R) 3456 CCM 277 HP 12/2008 - 08/2015
350 (GGL10_, GGL10W) 3456 CCM 275 HP 01/2009 - 09/2015
450h (GYL10, GYL10_, GYL10R) 3456 CCM 299 HP 03/2009 - 09/2015
450h AWD (GYL15, GYL15_, GYL15R, GYL16W) 3456 CCM 299 HP 03/2009 - 09/2015

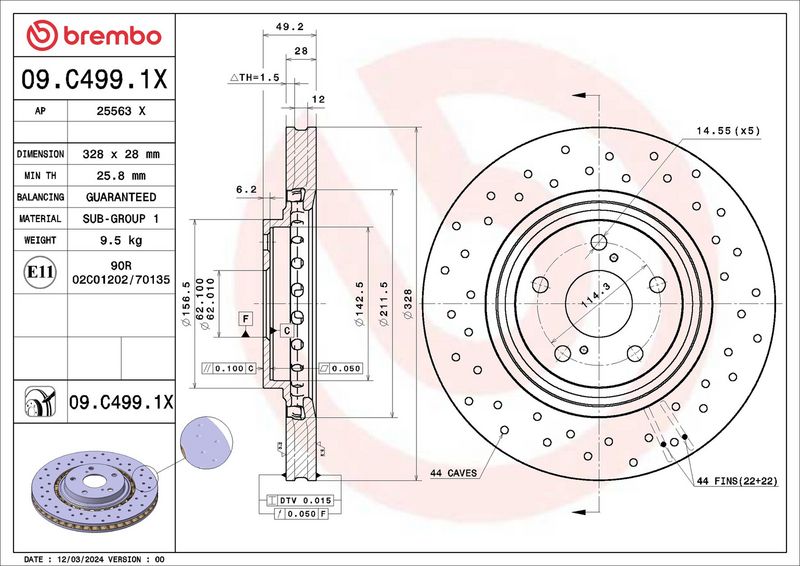

The Brembo 09.C499.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 49.2
Centering Diameter [mm] : 62
Outer Diameter [mm] : 328
Surface : Coated
Minimum thickness [mm] : 25.8
  • Vendor BREMBO
  • SKU 09.C499.1X
  • Barcode 8020584327821
  • TOYOTA : 435120E030 4351248110
  • LEXUS : 435120E030 4351248110
  • TOYOTA (GAC) : 435120E040
  • BLUE PRINT : ADT343278
  • FEBI BILSTEIN : 108464
  • FTE : 9082798
  • MINTEX : MDC2629
  • TEXTAR : 92259403
  • TEXTAR : 92259405
  • TRW : DF6265
