BREMBO

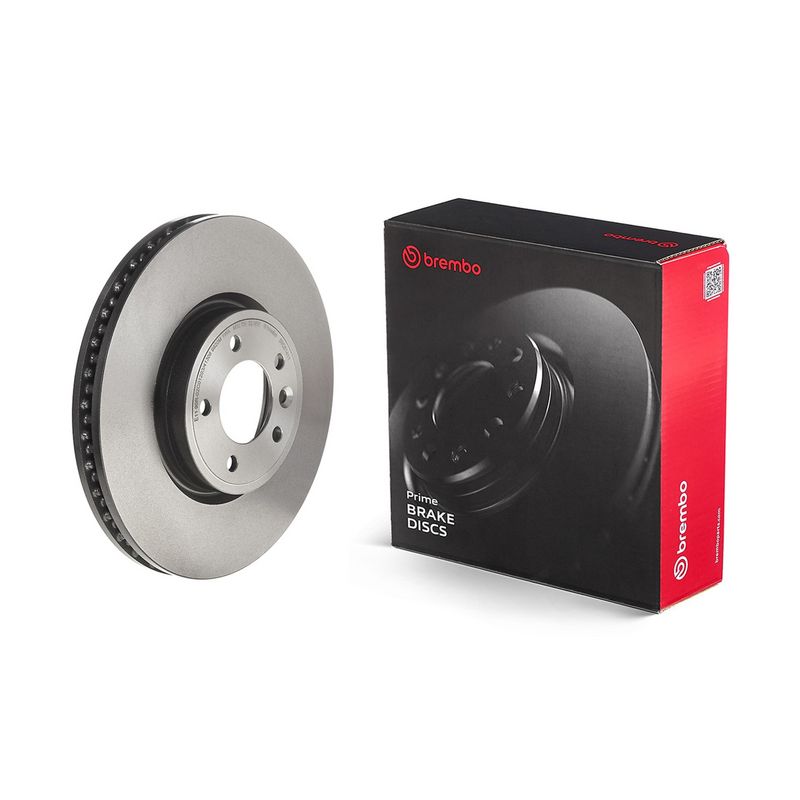

Brembo 09.C514.11 Brake Disc

SKU: 09.C514.11
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£90.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
DISCOVERY V (L462)
Description Cylinder Capacity Horse Power Year
3.0 Td6 4x4 2993 CCM 258 HP From 09/2016
3.0 D 4x4 2993 CCM 249 HP From 09/2016
3.0 D 4x4 2993 CCM 211 HP From 09/2016
3.0 SCV6 4x4 2995 CCM 340 HP From 09/2016
2.0 Td4 4x4 1999 CCM 180 HP From 09/2016
2.0 Sd4 4x4 1999 CCM 241 HP From 09/2016
2.0 Si4 4x4 1997 CCM 300 HP From 09/2017
3.0 SDV6 4x4 2993 CCM 306 HP From 09/2018
D250 MHEV 4x4 2997 CCM 249 HP From 12/2020
D300 MHEV 4x4 2997 CCM 300 HP From 12/2020
P360 MHEV 4x4 2996 CCM 360 HP From 12/2020
D350 MHEV 4x4 2997 CCM 349 HP From 05/2024
DISCOVERY V VAN (L462)
Description Cylinder Capacity Horse Power Year
2.0 Td4 4x4 1999 CCM 179 HP 09/2016 - 12/2018
2.0 Sd4 4x4 1999 CCM 241 HP From 09/2016
3.0 Td6 4x4 2993 CCM 258 HP From 09/2016
3.0 Sdv6 4x4 2993 CCM 306 HP From 09/2018
3.0 Scv6 4x4 2995 CCM 340 HP From 09/2016
3.0 D300 MHEV 4x4 2997 CCM 300 HP From 12/2020
RANGE ROVER IV (L405)
Description Cylinder Capacity Horse Power Year
3.0 SDV6 4x4 2993 CCM 249 HP 08/2012 - 01/2016
3.0 TDV6 4x4 2993 CCM 258 HP 08/2012 - 09/2021
5.0 SCV8 4x4 5000 CCM 510 HP 08/2012 - 09/2021
3.0 SCV6 4x4 2995 CCM 340 HP 10/2013 - 09/2021
3.0 TDV6 4x4 2993 CCM 211 HP 10/2013 - 01/2016
5.0 V8 4x4 5000 CCM 375 HP 12/2013 - 01/2016
5.0 SCV8 4x4 5000 CCM 550 HP 06/2015 - 09/2021
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 09/2021
3.0 SDV6 4x4 2993 CCM 275 HP 10/2018 - 09/2021
RANGE ROVER SPORT II (L494)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 4x4 2995 CCM 340 HP 04/2013 - 12/2019
3.0 TDV6 4x4 2993 CCM 258 HP 04/2013 - 03/2022
3.0 SDV6 4x4 2993 CCM 249 HP 04/2013 - 03/2022
3.0 SDV6 4x4 2993 CCM 306 HP 09/2014 - 03/2022
2.0 SD4 4x4 1999 CCM 241 HP 08/2016 - 03/2022
2.0 Si4 4x4 1997 CCM 300 HP 10/2017 - 03/2022
5.0 SCV8 4x4 4999 CCM 525 HP 11/2017 - 03/2022

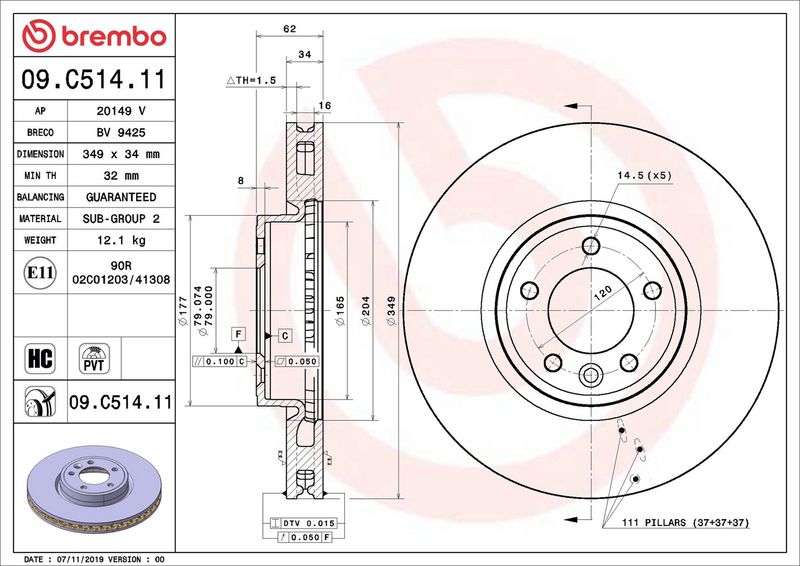

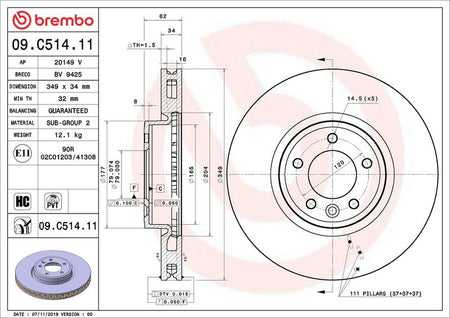

The Brembo 09.C514.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 34 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 34
Number of Holes : 5
Height [mm] : 62
Centering Diameter [mm] : 79
Outer Diameter [mm] : 349
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 32
  • Vendor BREMBO
  • SKU 09.C514.11
  • Barcode 8020584239971
  • LAND ROVER : LR081594 LR161889
  • APEC : DSK3492
  • BLUE PRINT : ADBP430106
  • BORG & BECK : BBD6243S
  • DELPHI : BG9348C
  • FEBI BILSTEIN : 176802
  • HELLA : 8DD 355 132-551
  • MEYLE : 53-83 521 0021/PD
  • MINTEX : MDC2902C
  • NAPA : NBD5712
  • National : NBD2091
  • SKF : VKBD 81273 V1
  • TEXTAR : 92307605
  • TRW : DF6954S
  • VALEO : 673607
