BREMBO

Brembo 09.C522.11 Brake Disc

SKU: 09.C522.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£82.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
XC60 I SUV (156)
Description Cylinder Capacity Horse Power Year
T5 1999 CCM 241 HP 09/2010 - 02/2017
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
2.4 D / D3 / D4 AWD 2400 CCM 163 HP 05/2008 - 02/2017
D5 AWD 2400 CCM 205 HP 07/2009 - 06/2011
2.4 D 2400 CCM 175 HP 04/2009 - 12/2010
2.0 T 1999 CCM 203 HP 12/2009 - 12/2012
3.2 AWD 3192 CCM 243 HP 03/2010 - 12/2015
T6 AWD 2953 CCM 304 HP 03/2010 - 02/2017
D3 / D4 1984 CCM 163 HP 03/2010 - 12/2014
D4 AWD 2400 CCM 181 HP 10/2013 - 12/2015
XC60 I VAN (156)
Description Cylinder Capacity Horse Power Year
D5 AWD 2400 CCM 215 HP 09/2013 - 02/2017

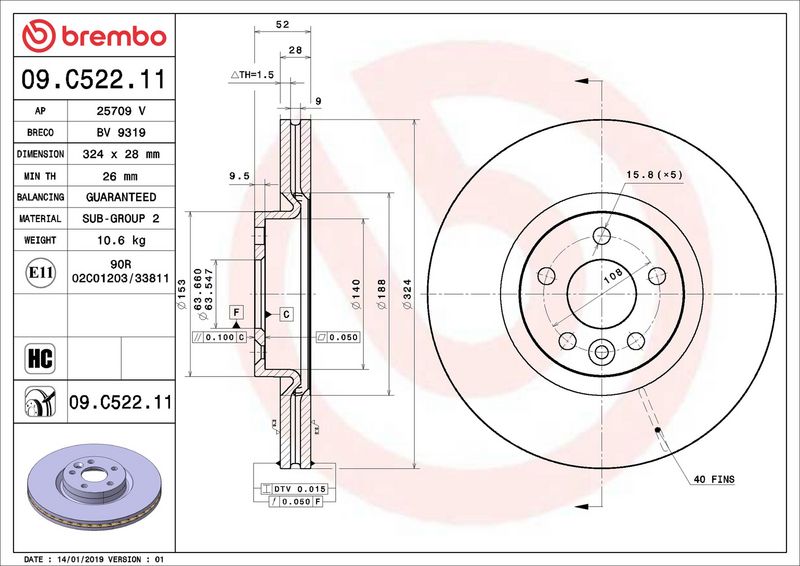

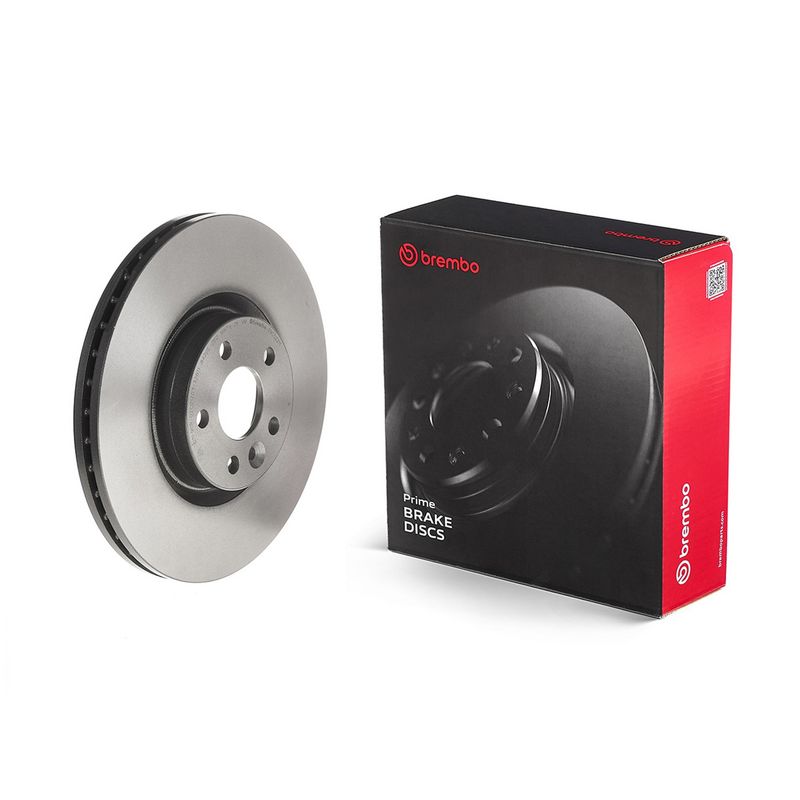

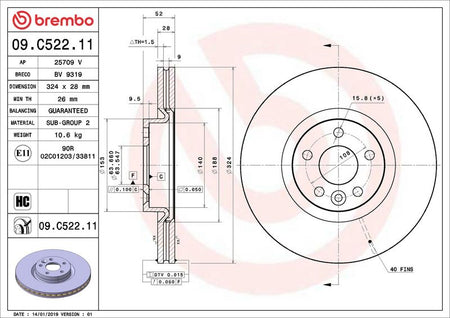

The Brembo 09.C522.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 52
Centering Diameter [mm] : 64
Outer Diameter [mm] : 324
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.C522.11
  • Barcode 8020584232255
  • VOLVO : 31423214 314232140 31423305 314233050
  • APEC : DSK3382
  • APEC : SDK6963
  • BLUE PRINT : ADBP430028
  • BORG & BECK : BBD6202S
  • BOSCH : 0 986 479 J41
  • DELPHI : BG9342C
  • Fahren : FBD6963
  • FEBI BILSTEIN : 171471
  • FTE : 9081353
  • HELLA : 8DD 355 126-661
  • MEYLE : 583 521 0044/PD
  • MINTEX : MDC2816C
  • NAPA : NBD5703
  • National : NBD2032
  • SKF : VKBD 81335 V1
  • TEXTAR : 92293205
  • VALEO : 673205
