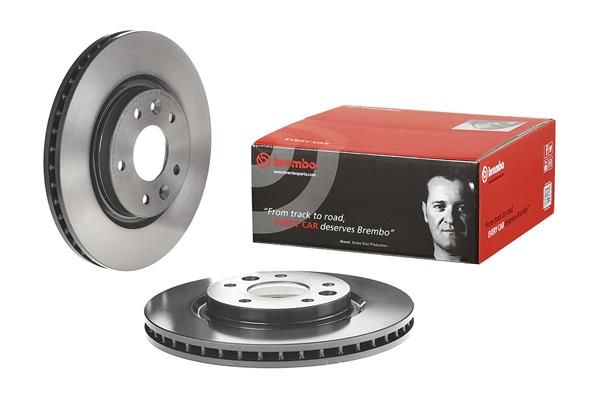

Brembo 09.C541.11 Brake Disc

Position: Front
5.0/5 78 reviews
SKU: 09.C541.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
Regular price £101.22 inc. VAT

Complete the job

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

FORD
KUGA II (DM2)
Description Cylinder Capacity Horse Power Year
1.6 EcoBoost 1596 CCM 150 HP 03/2013 - 09/2014
1.5 EcoBoost 1499 CCM 150 HP 09/2014 - 06/2019
KUGA II VAN
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 150 HP 09/2014 - 12/2019
1.5 EcoBoost 1499 CCM 120 HP 06/2019 - 12/2019
TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV
Description Cylinder Capacity Horse Power Year
1.6 EcoBoost 1596 CCM 150 HP 11/2013 - 12/2022
1.6 TDCi 1560 CCM 95 HP 09/2013 - 12/2022
1.0 EcoBoost 998 CCM 100 HP 11/2013 - 12/2022
1.6 TDCi 1560 CCM 115 HP 09/2013 - 12/2022
1.6 TDCi 1560 CCM 75 HP 09/2013 - 12/2022
1.5 TDCi 1499 CCM 101 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 75 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 120 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 95 HP 08/2016 - 12/2022
TRANSIT CONNECT MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 75 HP From 09/2013
1.6 TDCi 1560 CCM 95 HP From 09/2013
1.6 TDCi 1560 CCM 115 HP From 09/2013
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
TRANSIT CONNECT V408 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 115 HP From 09/2013
1.6 TDCi 1560 CCM 95 HP From 09/2013
1.6 TDCi 1560 CCM 75 HP From 09/2013
1.6 EcoBoost 1596 CCM 150 HP From 11/2013
1.0 EcoBoost 998 CCM 100 HP From 09/2013
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
1.5 TDCi 1499 CCM 95 HP From 03/2016

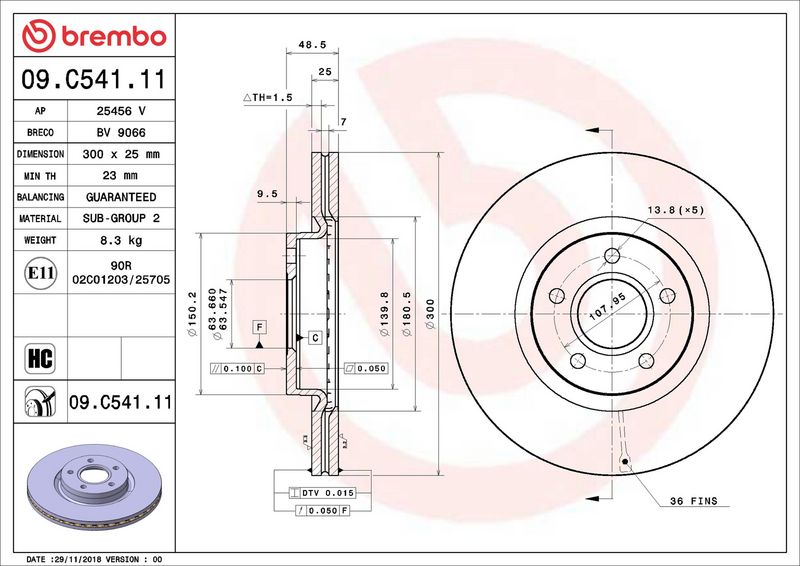

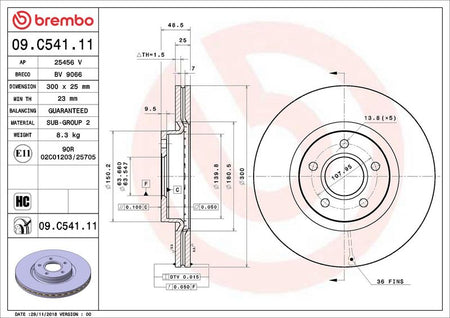

The Brembo 09.C541.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 64
Outer Diameter [mm] : 300
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23
  • Vendor BREMBO
  • SKU 09.C541.11
  • Barcode 8020584238912
  • FORD : 1797226 1825134 1829606 DV611125CA DV611125DA DV611125EA
  • BLUE PRINT : ADF124304
  • BOSCH : 0 986 479 C52
  • DELPHI : BG3895C
  • FEBI BILSTEIN : 24566
  • FTE : 9071080
  • HELLA : 8DD 355 112-191
  • MEYLE : 515 521 5027
  • MEYLE : 583 521 5027/PD
  • MINTEX : MDC1641C
  • SKF : VKBD 80053 V2
  • TEXTAR : 92141300
  • TEXTAR : 92141305
