BREMBO

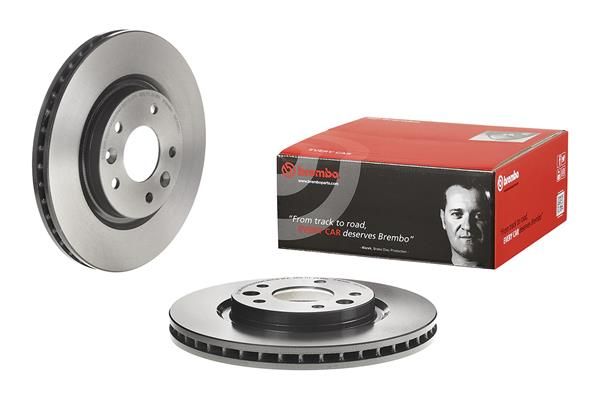

Brembo 09.C545.11 Brake Disc

SKU: 09.C545.11
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£99.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
LEAF (ZE0)
Description Cylinder Capacity Horse Power Year
Electric 109 HP 11/2010 - 12/2017
QASHQAI II (J11, J11_)
Description Cylinder Capacity Horse Power Year
1.2 DIG-T 1197 CCM 116 HP From 11/2013
1.5 dCi 1461 CCM 110 HP From 11/2013
1.6 dCi 1598 CCM 130 HP From 11/2013
1.6 dCi ALL MODE 4x4-i 1598 CCM 130 HP From 11/2013
2.0 (J11E) 1997 CCM 144 HP From 06/2014
1.6 DIG-T 1618 CCM 163 HP From 02/2014
2.0 ALL MODE 4x4-i (J11R) 1997 CCM 144 HP From 12/2013
1.3 DIG-T 1332 CCM 140 HP From 08/2018
1.3 DIG-T 1332 CCM 160 HP From 08/2018
1.5 dCi 1461 CCM 116 HP From 06/2018
1.7 dCi 1749 CCM 150 HP From 01/2019
1.7 dCi ALL MODE 4x4-i 1749 CCM 150 HP From 01/2019
1.3 DIG-T 1332 CCM 158 HP From 10/2020
QASHQAI II VAN (J11_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 110 HP From 05/2015
1.5 dCi 1461 CCM 116 HP From 06/2018
X-TRAIL III (T32_, T32R, T32RR)
Description Cylinder Capacity Horse Power Year
1.6 dCi (T32) 1598 CCM 130 HP From 04/2014
1.6 dCi ALL MODE 4x4-i (NT32) 1598 CCM 130 HP From 04/2014
2.5 ALL MODE 4x4-i (NT32) 2488 CCM 171 HP From 12/2013
2.0 (T32) 1997 CCM 144 HP From 02/2014
1.6 DIG-T (T32) 1618 CCM 163 HP From 06/2015
2.0 ALL MODE 4x4-i (NT32) 1997 CCM 144 HP From 09/2014
1.3 DIG-T 1332 CCM 160 HP From 04/2019
X-TRAIL VAN (T32)
Description Cylinder Capacity Horse Power Year
dCi 1598 CCM 131 HP From 04/2014
dCi 4x4 1598 CCM 131 HP From 04/2014
RENAULT
KADJAR (HA_, HL_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 110 (HLA3) 1461 CCM 110 HP From 06/2015
1.6 dCi 130 (HLA4) 1598 CCM 130 HP From 06/2015
1.6 dCi 130 4x4 (HLA4) 1598 CCM 130 HP From 06/2015
1.2 TCe 130 (HLMR) 1197 CCM 130 HP From 06/2015
1.6 TCe 165 (HLMH) 1618 CCM 163 HP From 11/2016
1.3 TCe 140 (HLNB, HLN1) 1332 CCM 140 HP From 08/2018
1.5 BLUE dCi 115 (HLA6) 1461 CCM 116 HP From 08/2018
1.3 TCe 160 (HLNC) 1332 CCM 160 HP From 08/2018
1.7 Blue dCi 150 4WD (HLA7) 1749 CCM 150 HP From 08/2018
1.7 Blue dCi 150 (HLA7) 1749 CCM 150 HP From 08/2018
1.3 TCe 160 (HLN2) 1332 CCM 158 HP From 07/2021

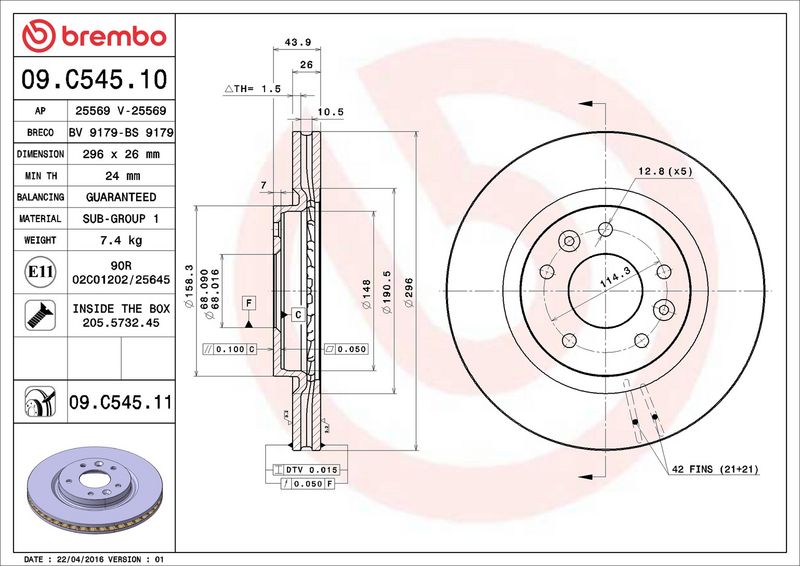

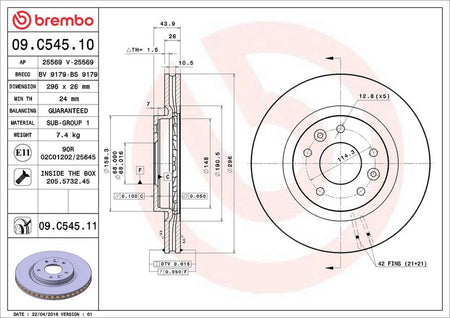

The Brembo 09.C545.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 44
Centering Diameter [mm] : 68
Outer Diameter [mm] : 296
Surface : Coated
Minimum thickness [mm] : 24
  • Vendor BREMBO
  • SKU 09.C545.11
  • Barcode 8020584222430
  • NISSAN : 402064BA0A 402064BTOB 402064EA0A 402064EA0B D02064BA0ARV D02064BA0AVA D02064CL0A
  • RENAULT : 402066624R
  • BLUE PRINT : ADN143176
  • BORG & BECK : BBD5363
  • BOSCH : 0 986 479 D16
  • DELPHI : BG4770C
  • FEBI BILSTEIN : 108392
  • FEBI BILSTEIN : 108604
  • FTE : 9071054
  • FTE : 9081141
  • HELLA : 8DD 355 122-791
  • MEYLE : 36-15 521 0074/PD
  • MINTEX : MDC2695
  • National : NBD1883
  • SKF : VKBD 80047 V2
  • TEXTAR : 92274203
  • TRW : DF6786
  • VALEO : 197758
