BREMBO

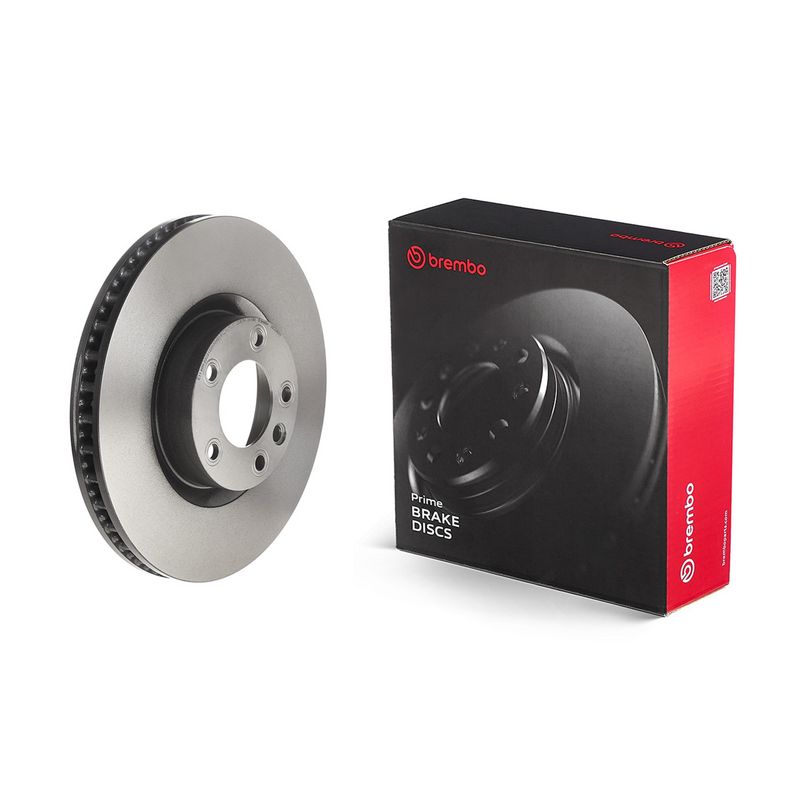

Brembo 09.C549.11 Brake Disc

SKU: 09.C549.11
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£85.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PORSCHE
CAYENNE (92A)
Description Cylinder Capacity Horse Power Year
4.8 Turbo 4806 CCM 500 HP 06/2010 - 05/2014
3.0 Diesel 2967 CCM 239 HP 06/2010 - 05/2018
3.0 Diesel 2967 CCM 245 HP 06/2011 - 05/2018
4.8 Turbo 4806 CCM 540 HP 06/2010 - 05/2014
3.0 Diesel 2967 CCM 211 HP 06/2010 - 05/2018
3.6 3598 CCM 300 HP 06/2010 - 12/2018
4.8 S 4806 CCM 400 HP 06/2010 - 05/2014
3.0 S E-Hybrid 2995 CCM 416 HP 05/2011 - 05/2017
4.8 GTS 4806 CCM 420 HP 06/2012 - 05/2018
4.2 S Diesel 4134 CCM 382 HP 10/2012 - 05/2014
4.8 Turbo S 4806 CCM 550 HP 10/2012 - 05/2014
3.0 Diesel 2967 CCM 262 HP 10/2014 - 05/2018
4.2 S Diesel 4134 CCM 385 HP 10/2014 - 05/2018
3.6 S 3604 CCM 420 HP 10/2014 - 05/2018
4.8 Turbo 4806 CCM 520 HP 10/2014 - 05/2018
VW
TOUAREG (7P5, 7P6)
Description Cylinder Capacity Horse Power Year
3.0 V6 TSI 2995 CCM 290 HP 08/2010 - 03/2018
3.6 V6 FSI 3597 CCM 249 HP 08/2010 - 03/2018
3.0 V6 TDI 2967 CCM 204 HP 01/2010 - 03/2018
3.0 V6 TDI 2967 CCM 245 HP 05/2011 - 03/2018
4.2 V8 FSI 4163 CCM 360 HP 01/2011 - 03/2018
3.6 V6 FSI 3597 CCM 280 HP 04/2010 - 03/2018
3.0 V6 TDI 2967 CCM 240 HP 01/2010 - 03/2018
4.2 V8 TDI 4134 CCM 340 HP 01/2010 - 03/2018
3.0 V6 TSI Hybrid 2995 CCM 379 HP 04/2010 - 03/2018
3.0 V6 TDI 2967 CCM 225 HP 06/2010 - 03/2018
3.0 V6 TDI 2967 CCM 262 HP 09/2014 - 03/2018

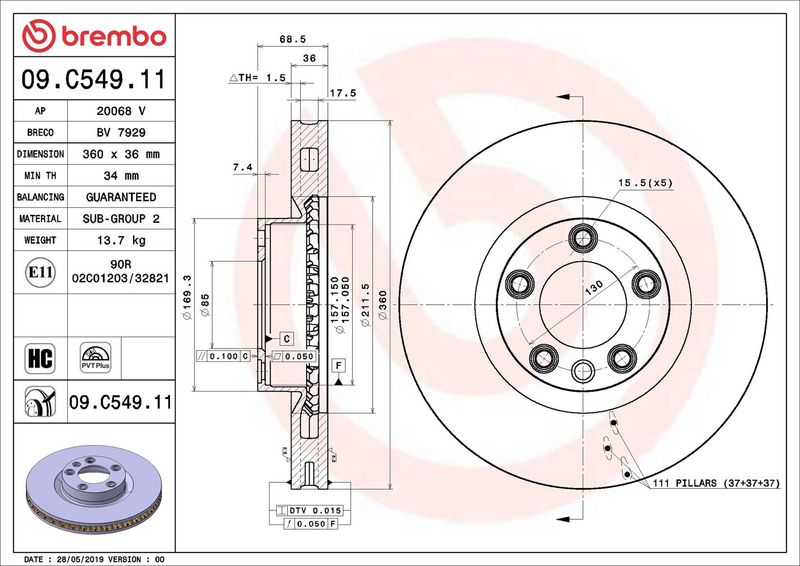

The Brembo 09.C549.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 36 mm brake disc thickness, 5 mounting holes, and 85 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 36
Number of Holes : 5
Height [mm] : 69
Centering Diameter [mm] : 85
Outer Diameter [mm] : 360
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 34
  • Vendor BREMBO
  • SKU 09.C549.11
  • Barcode 8020584239414
  • PORSCHE : 95835140300 95835140301 95835140400 95835140401
  • VW : 7P6615301 7P6615301A 7P6615301B 7P6615302 7P6615302A 7P6615302B
  • BLUE PRINT : ADV184330
  • BLUE PRINT : ADV184331
  • BORG & BECK : BBD5995S
  • BOSCH : 0 986 479 B12
  • BOSCH : 0 986 479 B13
  • DELPHI : BG9100C
  • DELPHI : BG9101C
  • FEBI BILSTEIN : 44080
  • FEBI BILSTEIN : 44081
  • FEBI BILSTEIN : 44082
  • FEBI BILSTEIN : 44083
  • FTE : 9071267
  • HELLA : 8DD 355 123-191
  • HELLA : 8DD 355 123-211
  • MEYLE : 183 521 0043/PD
  • MEYLE : 183 521 0044/PD
  • TEXTAR : 92219505
  • TEXTAR : 92262605
  • TEXTAR : 92262705
