Brembo 09.C644.11 Brake Disc - 1
Brembo 09.C644.11 Brake Disc - 2
Brembo 09.C644.11 Brake Disc - 1
Brembo 09.C644.11 Brake Disc - 2
BREMBO

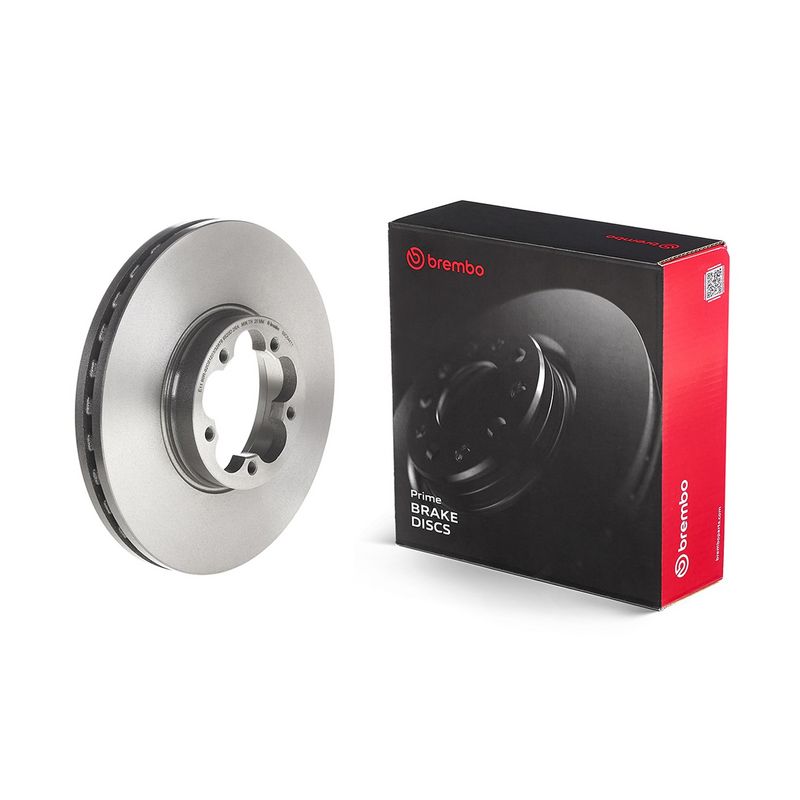

Brembo 09.C644.11 Brake Disc

SKU: 09.C644.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£64.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 12/2014 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.2 TDCi All-wheel Drive 2198 CCM 155 HP 08/2015 - 12/2018
2.0 EcoBlue mHEV 1995 CCM 130 HP From 05/2019
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 06/2024
2.0 EcoBlue RWD 1995 CCM 130 HP From 05/2019
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2015 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue 4x4 1995 CCM 130 HP From 01/2017

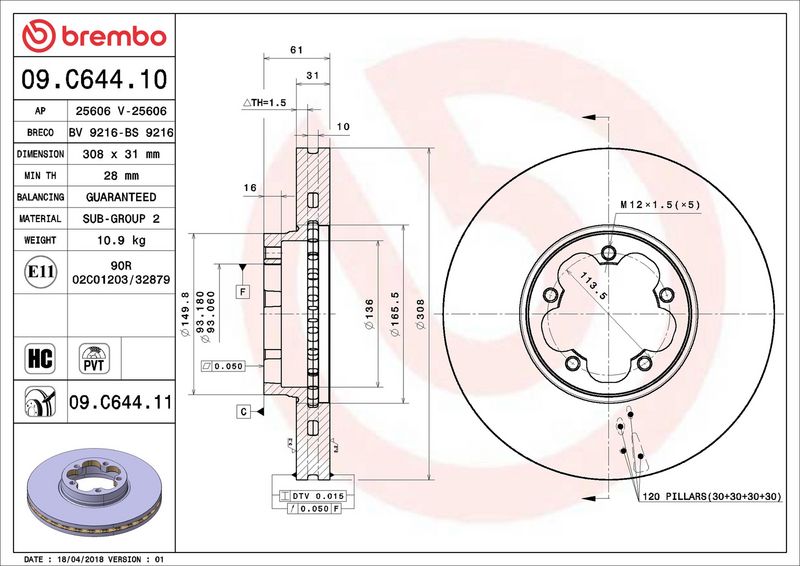

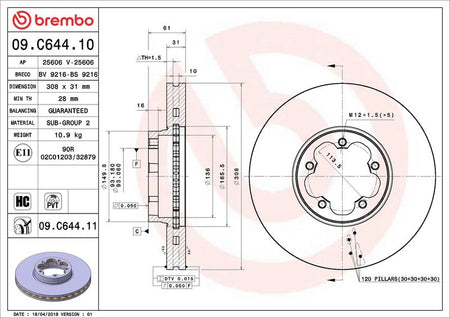

The Brembo 09.C644.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 31 mm brake disc thickness, 5 mounting holes, and 93 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 31
Number of Holes : 5
Height [mm] : 61
Centering Diameter [mm] : 93
Outer Diameter [mm] : 308
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28
  • Vendor BREMBO
  • SKU 09.C644.11
  • Barcode 8020584227275
  • FORD : 1812200 1822205 2226523 2527117 BK311125AB BK311125AC KK311125AA KK311125AB
  • BLUE PRINT : ADF124353
  • BORG & BECK : BBD6074S
  • BOSCH : 0 986 479 C99
  • DELPHI : BG9142C
  • FEBI BILSTEIN : 108689
  • FTE : 9071223
  • FTE : 9081150
  • HELLA : 8DD 355 122-801
  • MEYLE : 715 521 0042/PD
  • MINTEX : MDC2696
  • National : NBD1854
  • SKF : VKBD 81097 V1
  • TEXTAR : 92274303
  • TRW : DF6921S
  • VALEO : 673176
