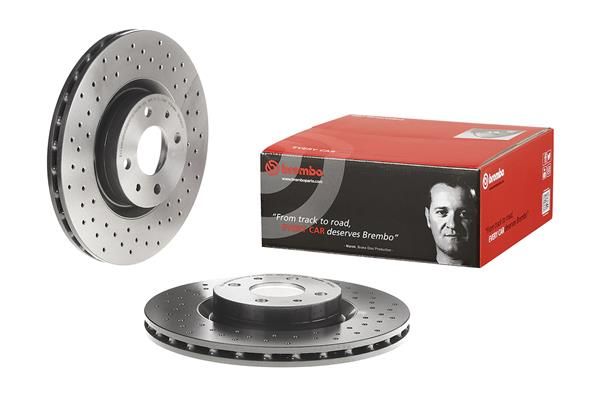

Brembo 09.C645.11 Brake Disc

SKU: 09.C645.11
Your selected vehicle
Out of stock
Out of Stock
£153.32 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ABARTH
500 / 595 / 695
Description Cylinder Capacity Horse Power Year
1.4 (312.AXF11, 312.AXF1A) 1368 CCM 180 HP From 08/2008
1.4 (312.AXD1A) 1368 CCM 135 HP From 08/2008
1.4 (312.AXF11, 312.AXF1A, 312.AXD1A) 1368 CCM 160 HP From 08/2008
1.4 (312.AXF1A, 312.AXD1A) 1368 CCM 140 HP From 05/2010
1.4 (312.AXY11, 312.AXY1A) 1368 CCM 145 HP From 05/2016
1.4 (312.AXZ11) 1368 CCM 165 HP From 05/2016
1.4 (312.AYB11, 312.AYB1A) 1368 CCM 163 HP From 06/2016
500C / 595C / 695C
Description Cylinder Capacity Horse Power Year
1.4 (312.AXF1A, 312.AXD1A) 1368 CCM 160 HP From 05/2011
1.4 (312.AXF11, 312.AXF1A) 1368 CCM 180 HP From 06/2010
1.4 (312.AXD1A) 1368 CCM 135 HP From 05/2008
1.4 (312.AXZ1A) 1368 CCM 165 HP From 05/2016
1.4 (312.AXY1A, 312.AXY11) 1368 CCM 145 HP From 05/2016

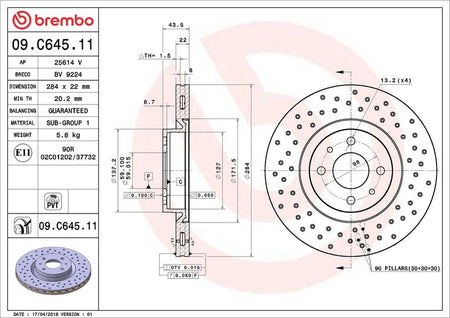

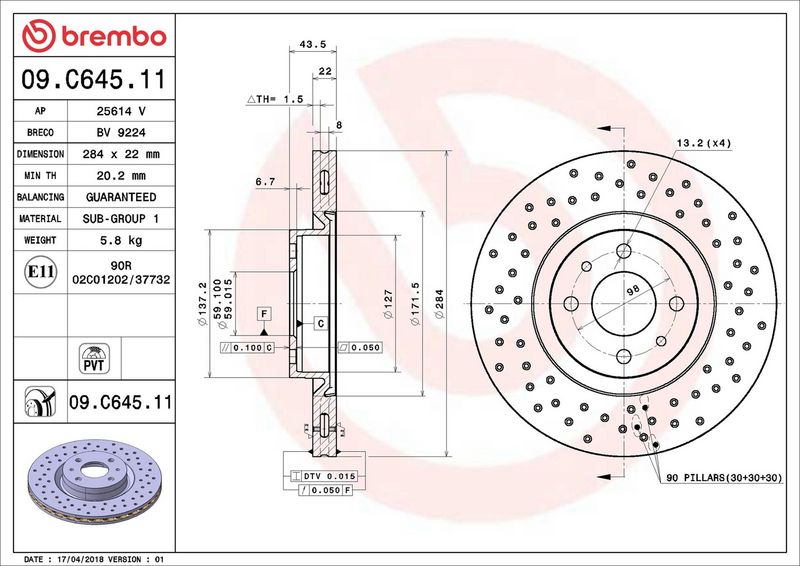

The Brembo 09.C645.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 59 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 22
Number of Holes : 4
Height [mm] : 44
Centering Diameter [mm] : 59
Outer Diameter [mm] : 284
Surface : Coated
Minimum thickness [mm] : 20.2
  • Vendor BREMBO
  • SKU 09.C645.11
  • Barcode 8020584223741
  • ABARTH : 51938383 5741446
  • APEC : DSK3236
  • APEC : SDK6851
  • BLUE PRINT : ADL144319
  • BORG & BECK : BBD5473
  • DELPHI : BG4943C
  • FEBI BILSTEIN : 18546
  • FTE : 9082427
  • HELLA : 8DD 355 102-391
  • MEYLE : 215 521 2007
  • MINTEX : MDC3186C
  • MINTEX : MDC616
  • NAPA : NBD5847
  • National : NBD2027
  • TEXTAR : 92053500
  • TEXTAR : 92053503
  • TEXTAR : 92316103
  • VALEO : 673700
