BREMBO

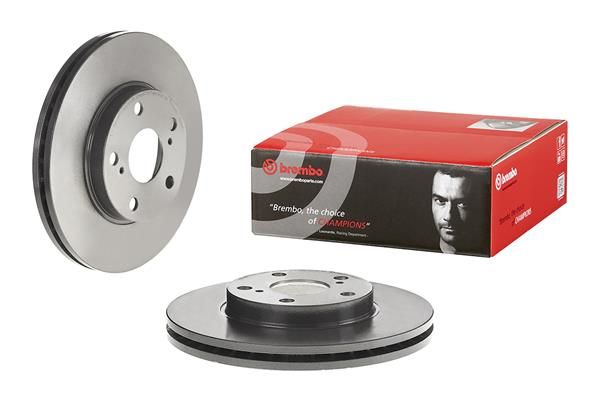

Brembo 09.C648.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.C648.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£82.15 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA

AURIS (_E18_)

Description	Cylinder Capacity	Horse Power	Year
1.4 D-4D (NDE180_, NDE180R)	1364 CCM	90 HP	10/2012 - 12/2018
1.6 (ZRE181_, ZRE185_, ZRE185R, ZRE181R)	1598 CCM	132 HP	10/2012 - 12/2018
1.3 Dual-VVTi (NRE180_, NRE180R)	1329 CCM	99 HP	10/2012 - 12/2018
1.8 Hybrid (ZWE186_, ZWE186R)	1798 CCM	136 HP	10/2012 - 12/2018
1.2 (NRE185_, NRE185R)	1197 CCM	116 HP	03/2015 - 12/2018
1.6 D4-D (WWE185_)	1598 CCM	112 HP	04/2015 - 12/2018

AURIS VAN Hatchback Van (_E18_)

Description	Cylinder Capacity	Horse Power	Year
1.4 D-4D (NDE180_)	1364 CCM	90 HP	03/2013 - 12/2018

AURIS Estate (_E18_)

Description	Cylinder Capacity	Horse Power	Year
1.3 Dual-VVTi (NRE180_)	1329 CCM	99 HP	07/2013 - 12/2018
1.6 (ZRE185_)	1598 CCM	132 HP	07/2013 - 12/2018
1.4 D-4D (NDE180_)	1364 CCM	90 HP	07/2013 - 12/2018
1.8 Hybrid (ZWE186_, ZWE186R, ZWE186H)	1798 CCM	136 HP	07/2013 - 12/2018
1.2 (NRE185_, NRE185R, NRE185H)	1197 CCM	116 HP	03/2015 - 12/2018
1.6 D4-D (WWE185_)	1598 CCM	112 HP	04/2015 - 12/2018

COROLLA Saloon (_E18_, ZRE1_)

Description	Cylinder Capacity	Horse Power	Year
1.3 Dual-VVTi (NRE180_)	1329 CCM	99 HP	06/2013 - 12/2018
1.4 D-4D (NDE180_, NDE170_)	1364 CCM	90 HP	06/2013 - 12/2018
1.6 (ZRE181_)	1598 CCM	132 HP	06/2013 - 12/2018
1.8 VVTi (ZRE172, ZRE182)	1798 CCM	140 HP	06/2013 - 08/2019
1.6 (ZRE171, ZRE181)	1598 CCM	122 HP	06/2013 - 12/2018

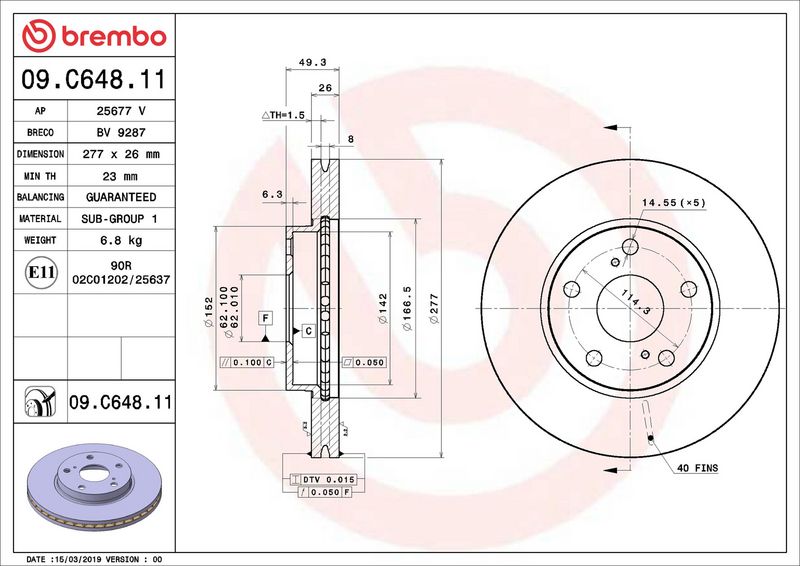

The Brembo 09.C648.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 26

Number of Holes : 5

Height [mm] : 49

Centering Diameter [mm] : 62

Outer Diameter [mm] : 277

Surface : Coated

Minimum thickness [mm] : 23
