BREMBO

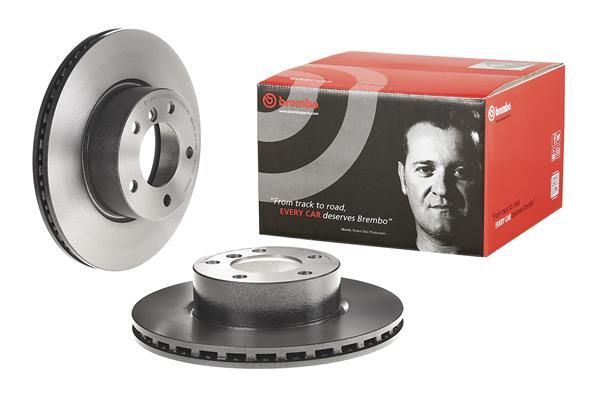

Brembo 09.C649.11 Brake Disc

SKU: 09.C649.11

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£106.86 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW

1 (E87)

Description	Cylinder Capacity	Horse Power	Year
120 i	1995 CCM	156 HP	03/2007 - 06/2011
120 i	1995 CCM	163 HP	03/2007 - 06/2011
120 i	1995 CCM	170 HP	03/2007 - 06/2011

1 (E81)

Description	Cylinder Capacity	Horse Power	Year
120 d	1995 CCM	163 HP	03/2007 - 12/2011
120 i	1995 CCM	170 HP	03/2007 - 09/2012
120 d	1995 CCM	177 HP	03/2007 - 12/2011
120 i	1995 CCM	156 HP	03/2007 - 12/2011
120 i	1995 CCM	163 HP	03/2007 - 12/2011

1 Coupe (E82)

Description	Cylinder Capacity	Horse Power	Year
120 d	1995 CCM	177 HP	09/2007 - 10/2013
125 i	2996 CCM	218 HP	03/2008 - 10/2013
120 d	1995 CCM	163 HP	09/2007 - 10/2013
120 i	1995 CCM	170 HP	10/2007 - 10/2013
128 i	2996 CCM	234 HP	10/2007 - 10/2013
120 i	1995 CCM	156 HP	09/2009 - 10/2013
120 d	1995 CCM	197 HP	09/2007 - 10/2013

1 Convertible (E88)

Description	Cylinder Capacity	Horse Power	Year
120 i	1995 CCM	170 HP	12/2007 - 10/2013
125 i	2996 CCM	218 HP	12/2007 - 10/2013
120 d	1995 CCM	177 HP	03/2008 - 12/2013
120 i	1995 CCM	163 HP	03/2008 - 12/2013
120 d	1995 CCM	163 HP	03/2008 - 12/2013
128 i	2996 CCM	234 HP	12/2007 - 10/2013
120 i	1995 CCM	156 HP	03/2008 - 12/2013
120 d	1995 CCM	197 HP	03/2008 - 12/2013

3 (E90)

Description	Cylinder Capacity	Horse Power	Year
318 d	1995 CCM	136 HP	09/2007 - 10/2011
320 i	1995 CCM	150 HP	12/2004 - 08/2007
325 i	2497 CCM	218 HP	12/2004 - 12/2011
320 d	1995 CCM	163 HP	12/2004 - 10/2011
318 i	1995 CCM	129 HP	09/2005 - 08/2007
318 d	1995 CCM	122 HP	03/2005 - 08/2007
325 xi	2497 CCM	218 HP	09/2005 - 08/2008
320 si	1997 CCM	173 HP	09/2005 - 08/2006

3 Touring (E91)

Description	Cylinder Capacity	Horse Power	Year
318 i	1995 CCM	136 HP	09/2007 - 03/2012
316 d	1995 CCM	116 HP	09/2009 - 06/2012
320 i	1995 CCM	150 HP	09/2005 - 06/2012
325 i	2497 CCM	218 HP	12/2004 - 08/2008
320 d	1995 CCM	163 HP	06/2005 - 06/2012
318 d	1995 CCM	122 HP	09/2005 - 08/2007
318 i	1995 CCM	129 HP	01/2006 - 08/2007

3 Coupe (E92)

Description	Cylinder Capacity	Horse Power	Year
318 i	1995 CCM	143 HP	03/2010 - 12/2013
325 i	2497 CCM	218 HP	06/2006 - 02/2010
320 i	1995 CCM	170 HP	03/2007 - 06/2013
325 i	2996 CCM	218 HP	09/2007 - 06/2013

3 Convertible (E93)

Description	Cylinder Capacity	Horse Power	Year
318 i	1995 CCM	143 HP	03/2010 - 12/2013
320 i	1995 CCM	170 HP	03/2007 - 10/2013

Z4 Roadster (E89)

Description	Cylinder Capacity	Horse Power	Year
sDrive 20 i	1997 CCM	184 HP	09/2011 - 08/2016
sDrive 23 i	2497 CCM	204 HP	03/2009 - 08/2011
sDrive 18 i	1997 CCM	156 HP	04/2013 - 08/2016
sDrive 20 i	1997 CCM	163 HP	09/2011 - 08/2016

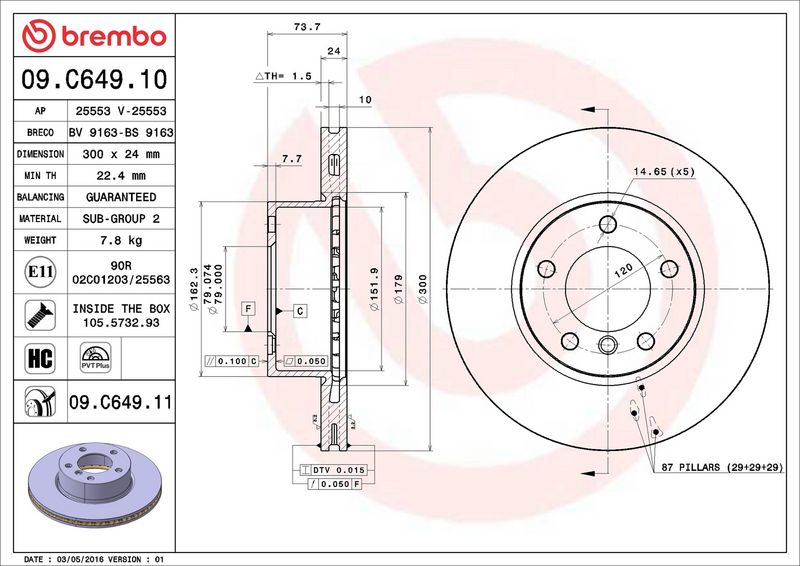

The Brembo 09.C649.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 24

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 74

Centering Diameter [mm] : 79

Outer Diameter [mm] : 300

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 22.4

APEC : DSK2459
APEC : SDK6248
BLUE PRINT : ADB114305
BORG & BECK : BBD4471
BOSCH : 0 986 479 216
DELPHI : BG3998C
Fahren : FBD6248
FEBI BILSTEIN : 24468
FTE : 9071028
HELLA : 8DD 355 111-921
MEYLE : 315 523 3059
MEYLE : 383 523 3059/PD
MINTEX : MDC1745C
NAPA : NBD5315
National : NBD1382
SKF : VKBD 80079 V2
TEXTAR : 92137705
VALEO : 197234

Brembo 09.C649.11 Brake Disc
