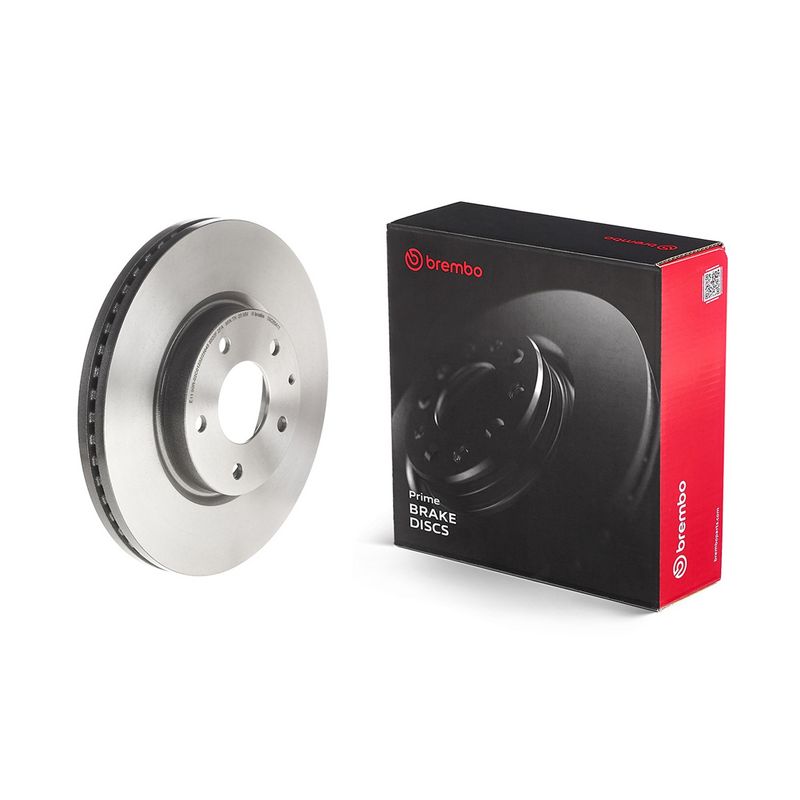

Brembo 09.C654.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.C654.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£70.94 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MAZDA
6 Estate (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FW, GJ692) 2191 CCM 175 HP 08/2012 - 02/2018
2.0 (GJEFW) 1998 CCM 146 HP From 01/2013
2.0 (GJEFW) 1998 CCM 165 HP From 01/2013
2.2 D 2191 CCM 150 HP 10/2012 - 12/2020
2.5 2488 CCM 192 HP From 12/2012
2.2 D AWD 2191 CCM 175 HP From 02/2015
2.2 D AWD 2191 CCM 150 HP 12/2012 - 12/2020
2.5 2488 CCM 194 HP From 03/2018
6 Saloon (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FP, GJ1021, GJ1022, GL1021) 2191 CCM 175 HP From 12/2012
2.0 (GJ2, GL2, GL6) 1998 CCM 146 HP From 01/2013
2.0 (GJEFP) 1998 CCM 165 HP From 01/2013
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 192 HP From 01/2013
2.2 D (GJ2FP) 2191 CCM 150 HP 12/2012 - 11/2020
2.0 1998 CCM 150 HP 12/2012 - 02/2018
2.5 2488 CCM 194 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 231 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 190 HP From 03/2018
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.0 AWD (KEEAW) 1998 CCM 160 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
2.5 AWD 2488 CCM 192 HP 02/2015 - 02/2017

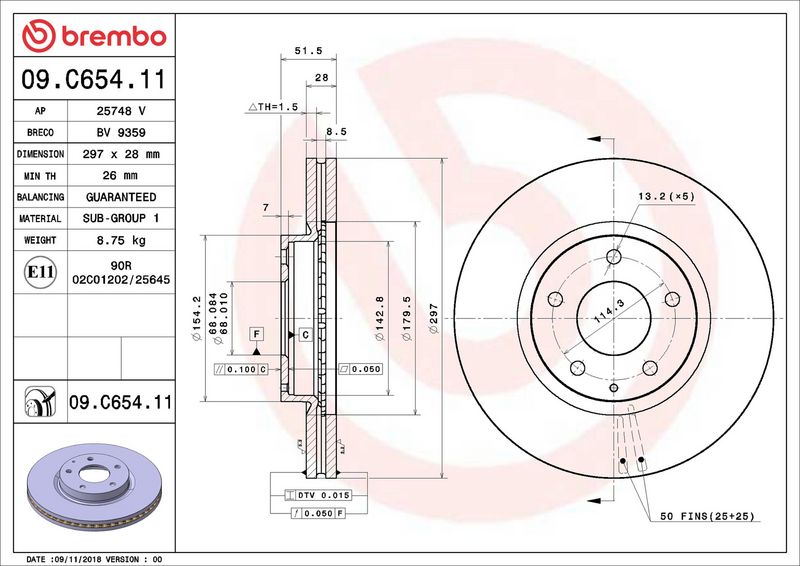

The Brembo 09.C654.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 52
Centering Diameter [mm] : 68
Outer Diameter [mm] : 297
Surface : Coated
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.C654.11
  • Barcode 8020584237342
  • MAZDA : GHP933251 GHP933251A GHR133251 GHR133251A K01133251A K01133251B
  • MAZDA (CHANGAN) : KR1233251A
  • APEC : DSK3023
  • APEC : SDK6763
  • BLUE PRINT : ADM543123
  • BORG & BECK : BBD5302
  • BOSCH : 0 986 479 B15
  • DELPHI : BG4562C
  • Fahren : FBD6763
  • FEBI BILSTEIN : 108417
  • FTE : 9071156
  • HELLA : 8DD 355 119-581
  • MEYLE : 35-15 521 0025/PD
  • MINTEX : MDC2536
  • NAPA : NBD5210
  • SKF : VKBD 80147 V2
  • TEXTAR : 92257403
  • TEXTAR : 92257405
  • TRW : DF8052
