BREMBO

Brembo 09.C657.11 Brake Disc

SKU: 09.C657.11

Your selected vehicle

Out of stock

Out of Stock

£75.88 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PEUGEOT

308 II (LB_, LP_, LW_, LH_, L3_)

Description	Cylinder Capacity	Horse Power	Year
1.6 THP	1598 CCM	156 HP	09/2013 - 06/2021
1.6 THP 125	1598 CCM	125 HP	09/2013 - 06/2021
1.2 VTi 72	1199 CCM	82 HP	09/2013 - 06/2021
1.6 HDi	1560 CCM	92 HP	09/2013 - 06/2021
1.6 HDi / BlueHDi 115	1560 CCM	115 HP	09/2013 - 06/2021
1.2 THP 110	1199 CCM	110 HP	11/2013 - 06/2021
1.2 THP 130	1199 CCM	131 HP	11/2013 - 06/2021
1.6 BlueHDi 120	1560 CCM	120 HP	11/2013 - 06/2021
2.0 BlueHDi 150	1997 CCM	150 HP	11/2013 - 06/2021
1.6 HDi 100	1560 CCM	99 HP	04/2014 - 06/2021
1.6 GT 205	1598 CCM	205 HP	06/2014 - 06/2021
2.0 GT BlueHDi 180	1997 CCM	181 HP	06/2014 - 06/2021
1.6 THP 150	1598 CCM	150 HP	03/2014 - 06/2021
1.6 THP 163	1598 CCM	163 HP	06/2014 - 06/2021

308 SW II (LC_, LJ_, LR_, LX_, L4_)

Description	Cylinder Capacity	Horse Power	Year
1.2 THP 130	1199 CCM	131 HP	03/2014 - 06/2021
1.6 THP 155	1598 CCM	156 HP	03/2014 - 06/2021
1.6 HDi 92	1560 CCM	92 HP	03/2014 - 06/2021
1.6 HDi / BlueHDi 115 (LCBHXM, LCBHXT)	1560 CCM	115 HP	03/2014 - 06/2021
2.0 BlueHDi 150	1997 CCM	150 HP	03/2014 - 06/2021
1.2 THP 110	1199 CCM	110 HP	03/2014 - 06/2021
1.6 BlueHDi 120	1560 CCM	120 HP	03/2014 - 06/2021
1.6 BlueHDi 100	1560 CCM	99 HP	04/2014 - 06/2021
1.6 GT 205	1598 CCM	205 HP	02/2015 - 06/2021
2.0 GT HDi 180 / BlueHDi 180	1997 CCM	181 HP	06/2014 - 06/2021
1.6 VTi (LWNFPA)	1587 CCM	115 HP	03/2014 - 06/2021
1.6 THP 125	1598 CCM	125 HP	03/2014 - 06/2021
1.6 THP 150 (L45GXA)	1598 CCM	150 HP	03/2014 - 06/2021
2.0 GT BlueHDi 180	1997 CCM	179 HP	06/2017 - 06/2021

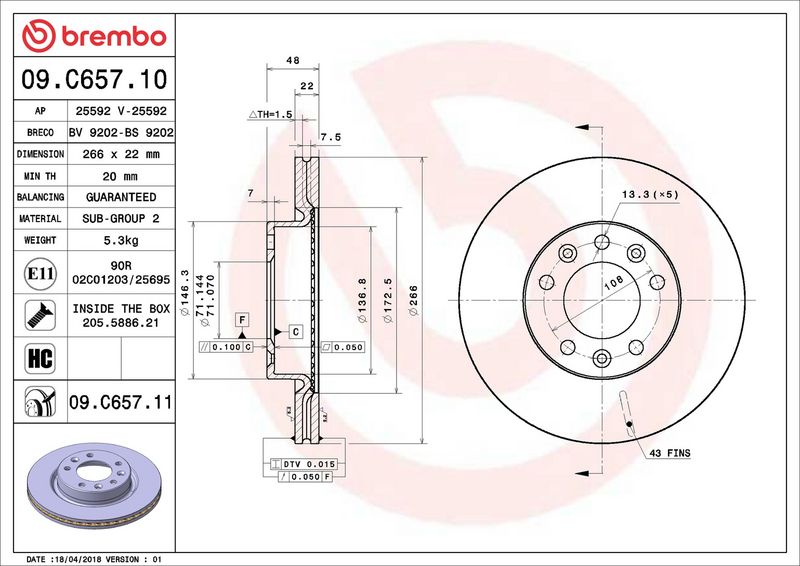

The Brembo 09.C657.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 71 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 22

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 48

Centering Diameter [mm] : 71

Outer Diameter [mm] : 266

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 20

BLUE PRINT : ADP154349
BOSCH : 0 986 479 C34
DELPHI : BG4700C
FEBI BILSTEIN : 105713
FTE : 9072058
HELLA : 8DD 355 120-541
MINTEX : MDC2613
National : NBD1871
SKF : VKBD 80113 V2
TEXTAR : 92269003
TRW : DF6785
VALEO : 197590
VALEO : 673054

Brembo 09.C657.11 Brake Disc
