BREMBO

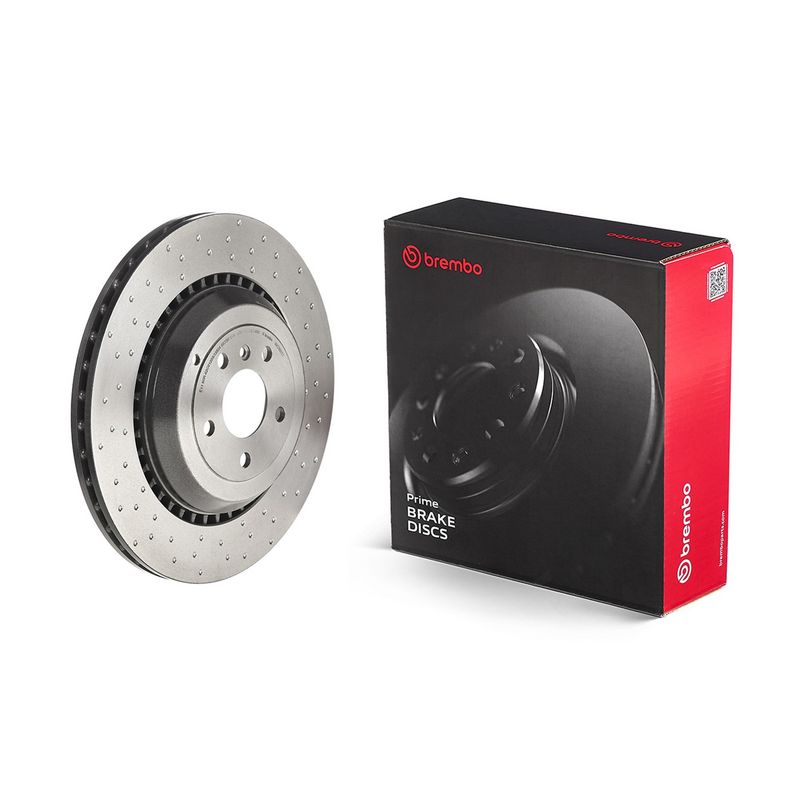

Brembo 09.C660.11 Brake Disc

SKU: 09.C660.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£108.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
M-CLASS (W164)
Description Cylinder Capacity Horse Power Year
ML 63 AMG 4-matic (164.177) 6208 CCM 510 HP 01/2006 - 12/2011
ML 63 AMG 4-matic (164.177) 6208 CCM 510 HP 09/2006 - 12/2011
R-CLASS (W251, V251)
Description Cylinder Capacity Horse Power Year
R 63 AMG 4-matic (251.077, 251.177) 6208 CCM 510 HP 02/2006 - 12/2010

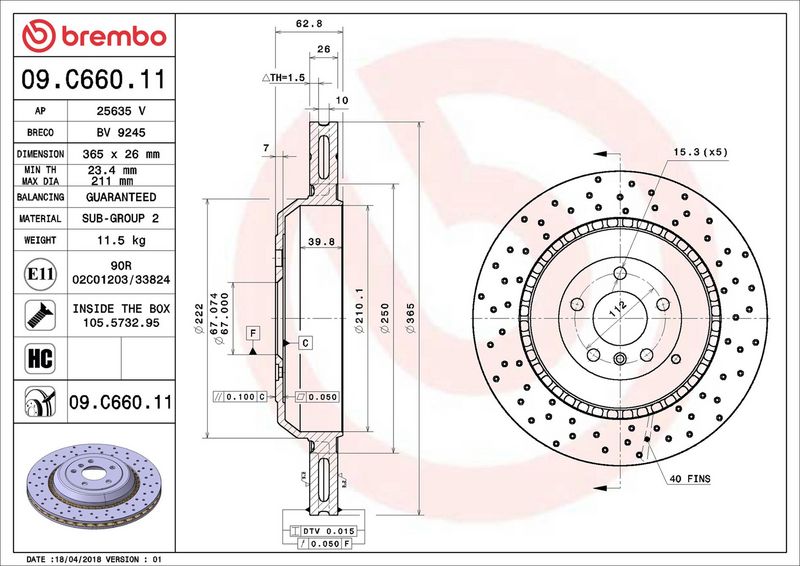

The Brembo 09.C660.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 63
Centering Diameter [mm] : 67
Outer Diameter [mm] : 365
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23.4
  • Vendor BREMBO
  • SKU 09.C660.11
  • Barcode 8020584232279
  • MERCEDES-BENZ : 1644230812 A1644230812
