BREMBO

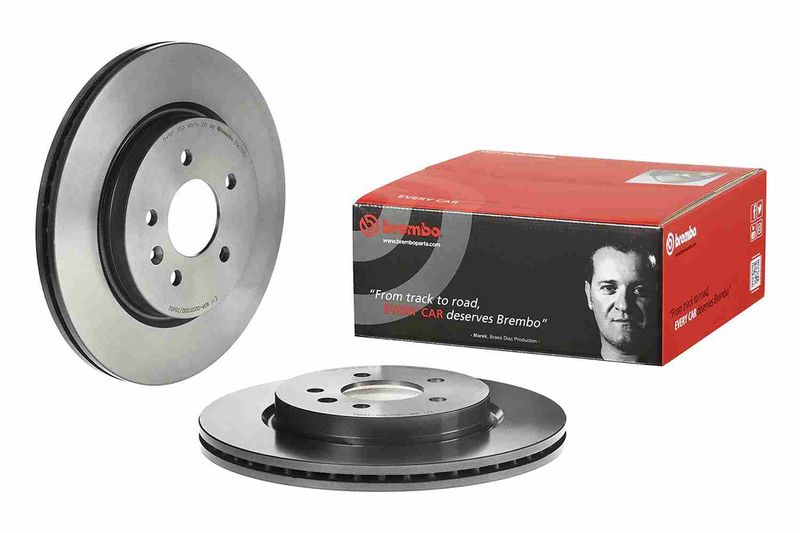

Brembo 09.C711.11 Brake Disc

SKU: 09.C711.11
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£148.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
ZAFIRA TOURER C (P12)
Description Cylinder Capacity Horse Power Year
1.4 (75) 1364 CCM 120 HP 10/2011 - 05/2018
1.4 (75) 1364 CCM 140 HP 10/2011 - 05/2018
1.8 (75) 1796 CCM 140 HP 10/2011 - 05/2018
2.0 CDTi (75) 1956 CCM 165 HP 10/2011 - 10/2014
2.0 CDTi (75) 1956 CCM 130 HP 10/2011 - 11/2018
2.0 CDTi (75) 1956 CCM 110 HP 10/2011 - 10/2014
1.8 (75) 1796 CCM 115 HP 10/2011 - 06/2015
1.6 CNG (75) 1598 CCM 150 HP 10/2011 - 05/2018
1.6 SIDI (75) 1598 CCM 200 HP 07/2013 - 05/2018
1.4 LPG (75) 1364 CCM 140 HP 10/2011 - 05/2018
2.0 BiTurbo CDTI (75) 1956 CCM 194 HP 01/2013 - 10/2014
1.6 (75) 1598 CCM 170 HP 12/2012 - 03/2019
1.6 CDTI (75) 1598 CCM 136 HP 02/2013 - 05/2016
1.6 CDTI (75) 1598 CCM 120 HP 07/2014 - 11/2018
2.0 CDTi (75) 1956 CCM 170 HP 11/2014 - 03/2019
ZAFIRA TOURER C VAN (P12)
Description Cylinder Capacity Horse Power Year
2.0 CDTi (75) 1956 CCM 110 HP 01/2013 - 10/2014
2.0 CDTi (75) 1956 CCM 131 HP 01/2012 - 10/2014
2.0 CDTi (75) 1956 CCM 165 HP 01/2013 - 10/2014
VAUXHALL
ZAFIRA Mk III (P12)
Description Cylinder Capacity Horse Power Year
1.4 (75) 1364 CCM 120 HP 10/2011 - 06/2014
1.4 (75) 1364 CCM 140 HP 10/2011 - 05/2018
1.6 CNG (75) 1598 CCM 150 HP 10/2011 - 04/2016
1.8 (75) 1796 CCM 116 HP 10/2011 - 06/2015
1.8 (75) 1796 CCM 140 HP 10/2011 - 05/2018
2.0 CDTi (75) 1956 CCM 110 HP 09/2011 - 10/2014
2.0 CDTi (75) 1956 CCM 130 HP 10/2011 - 10/2014
2.0 CDTi (75) 1956 CCM 165 HP 10/2011 - 10/2014
2.0 BiTurbo CDTI (75) 1956 CCM 194 HP 11/2012 - 08/2018
1.6 CDTi (75) 1598 CCM 136 HP 02/2013 - 05/2016
2.0 CDTi (75) 1956 CCM 170 HP 11/2014 - 05/2018
1.6 CDTi (75) 1598 CCM 135 HP 07/2013 - 05/2016
1.6 SIDI (75) 1598 CCM 200 HP 07/2013 - 05/2018
1.6 SIDI 1598 CCM 170 HP 12/2012 - 03/2019

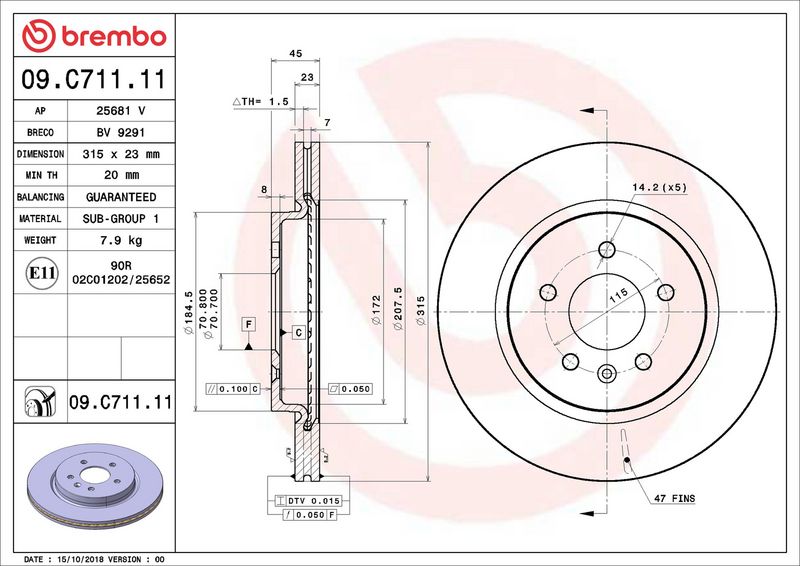

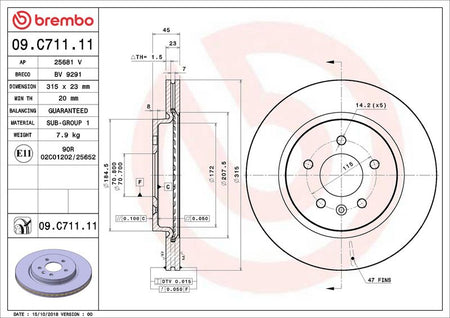

The Brembo 09.C711.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 23 mm brake disc thickness, 5 mounting holes, and 71 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 23
Number of Holes : 5
Height [mm] : 45
Centering Diameter [mm] : 71
Outer Diameter [mm] : 315
Surface : Coated
Minimum thickness [mm] : 20
  • Vendor BREMBO
  • SKU 09.C711.11
  • Barcode 8020584317655
  • OPEL : 13502866 13586855 569090 569093
  • VAUXHALL : 13502866 13586855
  • BLUE PRINT : ADW194324
  • BORG & BECK : BBD5262
  • BOSCH : 0 986 479 C46
  • BOSCH : 0 986 479 U65
  • DELPHI : BG4388C
  • FEBI BILSTEIN : 44047
  • HELLA : 8DD 355 118-281
  • MEYLE : 615 523 0020/PD
  • MINTEX : MDC2363
  • SKF : VKBD 91157 V1
  • TEXTAR : 92239803
  • TRW : DF6371
  • VALEO : 673215
