Brembo 09.C821.11 Brake Disc - 1
Brembo 09.C821.11 Brake Disc - 2
Brembo 09.C821.11 Brake Disc - 1
Brembo 09.C821.11 Brake Disc - 2
BREMBO

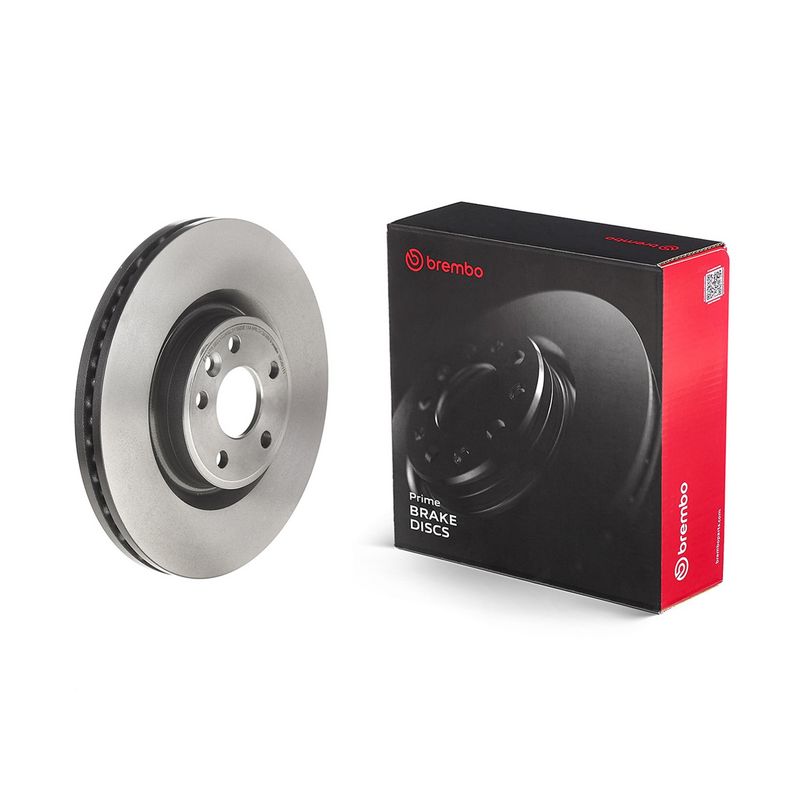

Brembo 09.C821.11 Brake Disc

SKU: 09.C821.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£95.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
E-PACE (X540)
Description Cylinder Capacity Horse Power Year
2.0 P200 AWD 1997 CCM 249 HP From 09/2017
2.0 AWD 1997 CCM 300 HP From 09/2017
2.0 D150 1999 CCM 150 HP From 09/2017
2.0 D150 AWD 1999 CCM 150 HP From 09/2017
2.0 D180 AWD 1999 CCM 179 HP From 09/2017
2.0 D240 AWD 1999 CCM 241 HP From 09/2017
2.0 P200 AWD 1997 CCM 200 HP From 08/2018

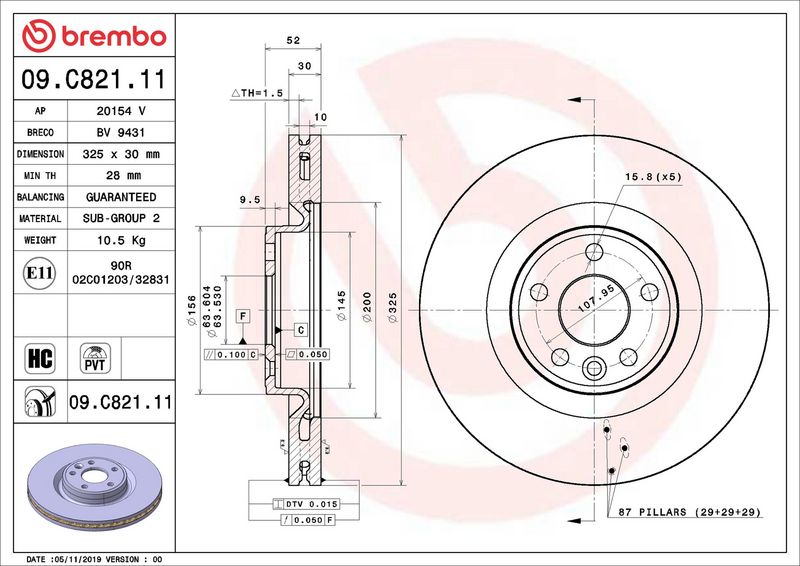

The Brembo 09.C821.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Height [mm] : 52
Centering Diameter [mm] : 64
Outer Diameter [mm] : 325
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28
  • Vendor BREMBO
  • SKU 09.C821.11
  • Barcode 8020584310038
  • JAGUAR : J9C2136
  • JAGUAR (CHERY) : J9C2136
  • BLUE PRINT : ADJ134365
  • BORG & BECK : BBD6086S
  • DELPHI : BG9183C
  • FEBI BILSTEIN : 108638
  • HELLA : 8DD 355 123-111
  • MEYLE : 53-83 521 0019/PD
  • MINTEX : MDC3014C
  • TEXTAR : 92278603
  • TEXTAR : 92278605
  • TRW : DF6848S
