BREMBO

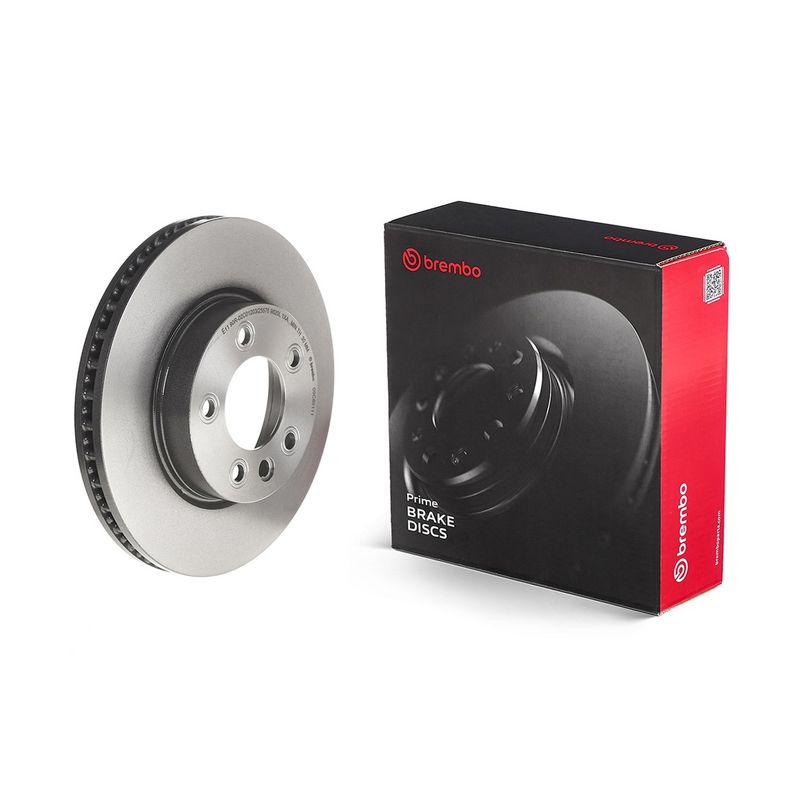

Brembo 09.C881.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.C881.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£99.13 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

PORSCHE

CAYENNE (9PA)

Description	Cylinder Capacity	Horse Power	Year
S 4.5	4511 CCM	340 HP	09/2002 - 09/2007
Turbo 4.5	4511 CCM	450 HP	09/2002 - 09/2007
3.2	3189 CCM	250 HP	10/2003 - 09/2007
Turbo S 4.5	4511 CCM	500 HP	01/2004 - 09/2007
Turbo S 4.5	4511 CCM	521 HP	05/2002 - 05/2006
3.6	3598 CCM	290 HP	02/2007 - 09/2010
S 4.8	4806 CCM	385 HP	02/2007 - 09/2010
Turbo S 4.8	4806 CCM	500 HP	02/2007 - 09/2010
GTS 4.8	4806 CCM	405 HP	10/2007 - 09/2010
3.0 TDI	2967 CCM	240 HP	02/2009 - 09/2010
Turbo S 4.8	4806 CCM	550 HP	08/2008 - 09/2010

TOUAREG (7LA, 7L6, 7L7)

Description	Cylinder Capacity	Horse Power	Year
3.2 V6	3189 CCM	220 HP	10/2002 - 11/2006
5.0 V10 TDI	4921 CCM	313 HP	10/2002 - 05/2010
4.2 V8	4172 CCM	310 HP	12/2002 - 11/2006
2.5 R5 TDI	2461 CCM	174 HP	01/2003 - 05/2010
3.2 V6	3189 CCM	241 HP	11/2004 - 11/2006
3.0 V6 TDI	2967 CCM	225 HP	11/2004 - 05/2010
6.0 W12	5998 CCM	450 HP	08/2004 - 05/2010
3.6 V6 FSI	3597 CCM	280 HP	10/2005 - 05/2010
4.2 V8 FSI	4163 CCM	350 HP	06/2006 - 05/2010
3.0 V6 TDI	2967 CCM	240 HP	11/2007 - 05/2010
2.5 R5 TDI	2461 CCM	163 HP	08/2003 - 05/2010
3.0 TDI	2967 CCM	211 HP	04/2006 - 05/2010

TOUAREG (7P5, 7P6)

Description	Cylinder Capacity	Horse Power	Year
3.0 V6 TSI	2995 CCM	290 HP	08/2010 - 03/2018
3.6 V6 FSI	3597 CCM	249 HP	08/2010 - 03/2018
3.0 V6 TDI	2967 CCM	204 HP	01/2010 - 03/2018
3.0 V6 TDI	2967 CCM	245 HP	05/2011 - 03/2018
4.2 V8 FSI	4163 CCM	360 HP	01/2011 - 03/2018
3.6 V6 FSI	3597 CCM	280 HP	04/2010 - 03/2018
3.0 V6 TDI	2967 CCM	240 HP	01/2010 - 03/2018
4.2 V8 TDI	4134 CCM	340 HP	01/2010 - 03/2018
3.0 V6 TSI Hybrid	2995 CCM	379 HP	04/2010 - 03/2018
3.0 V6 TDI	2967 CCM	225 HP	06/2010 - 03/2018
3.0 V6 TDI	2967 CCM	262 HP	09/2014 - 03/2018

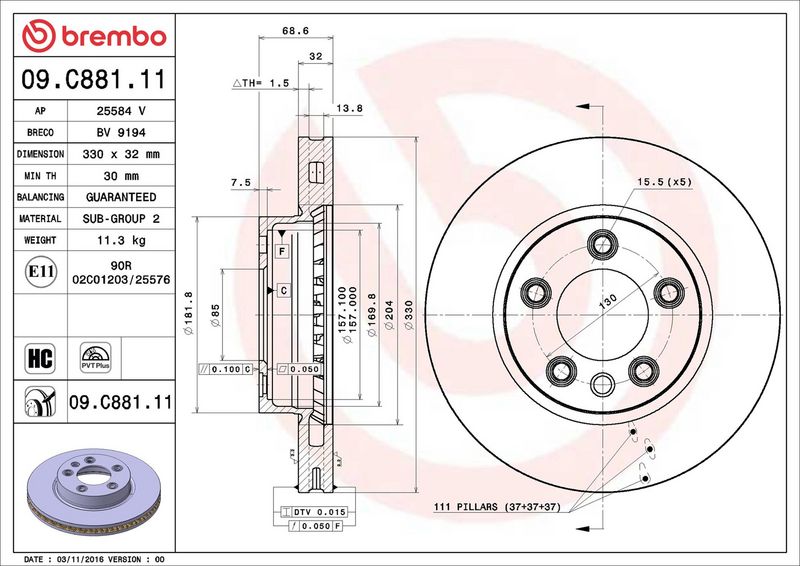

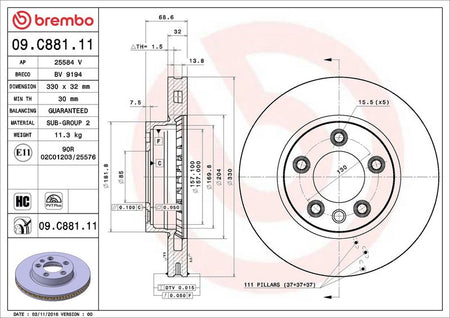

The Brembo 09.C881.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 85 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 32

Number of Holes : 5

Height [mm] : 69

Centering Diameter [mm] : 85

Outer Diameter [mm] : 330

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 30

Tightening Torque [Nm] : 160
