Brembo 09.C894.11 Brake Disc - 1
Brembo 09.C894.11 Brake Disc - 2
Brembo 09.C894.11 Brake Disc - 1
Brembo 09.C894.11 Brake Disc - 2
BREMBO

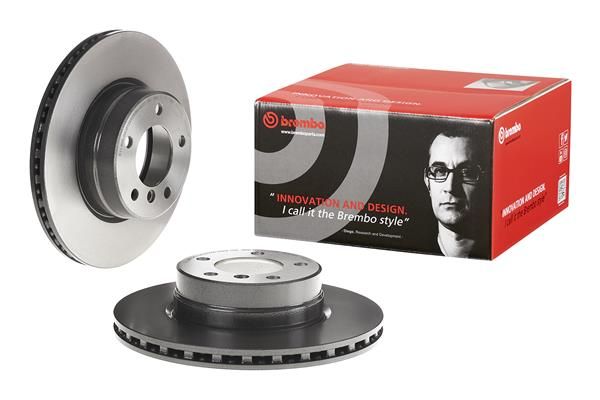

Brembo 09.C894.11 Brake Disc

SKU: 09.C894.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£112.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
5 (E60)
Description Cylinder Capacity Horse Power Year
520 i 2171 CCM 170 HP 07/2003 - 03/2010
525 i 2494 CCM 192 HP 09/2003 - 02/2005
525 d 2497 CCM 177 HP 06/2004 - 03/2010
523 i 2497 CCM 177 HP 10/2004 - 02/2007
525 i 2497 CCM 218 HP 03/2005 - 12/2009
520 d 1995 CCM 163 HP 09/2005 - 12/2009
5 Touring (E61)
Description Cylinder Capacity Horse Power Year
525 i 2494 CCM 192 HP 06/2004 - 12/2010
525 d 2497 CCM 177 HP 03/2004 - 03/2007
523 i 2497 CCM 177 HP 10/2004 - 02/2007
525 i 2497 CCM 218 HP 03/2005 - 05/2010
520 d 1995 CCM 163 HP 04/2005 - 05/2010
525 d 2497 CCM 163 HP 03/2004 - 03/2007

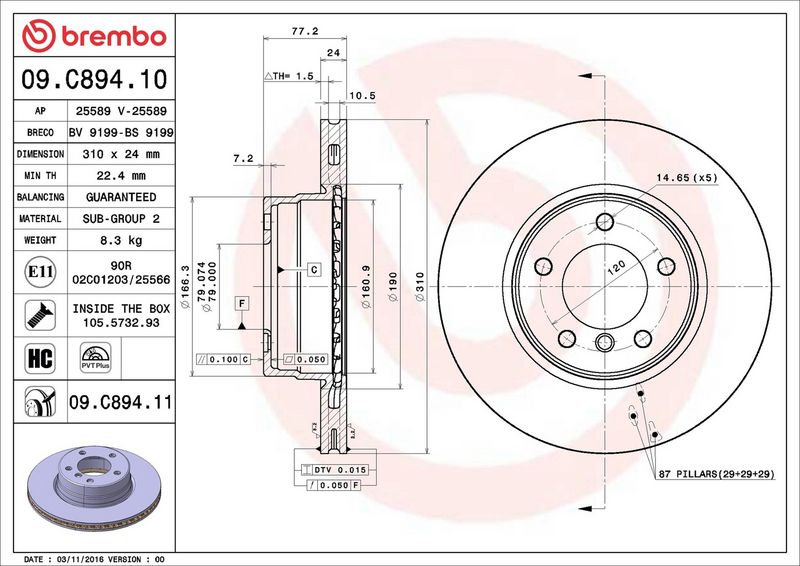

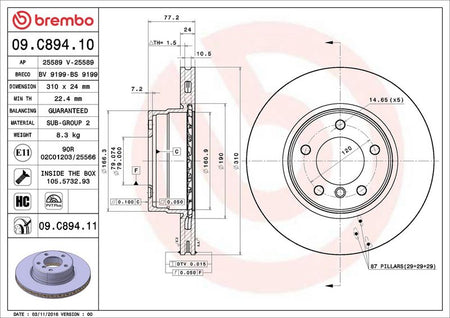

The Brembo 09.C894.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 77
Centering Diameter [mm] : 79
Outer Diameter [mm] : 310
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.C894.11
  • Barcode 8020584231722
  • BMW : 34116756745 34116764021 34116778967 34116864059
  • BMW (BRILLIANCE) : 34116756745 34116764021 34116864059
  • APEC : DSK2256
  • APEC : SDK6260
  • BLUE PRINT : ADB114362
  • BORG & BECK : BBD4407
  • BOSCH : 0 986 479 055
  • BOSCH : 0 986 479 S29
  • DELPHI : BG3870
  • Fahren : FBD6260
  • FEBI BILSTEIN : 24342
  • FTE : 9071216
  • FTE : 9082576
  • HELLA : 8DD 355 109-901
  • MEYLE : 315 521 3061
  • MEYLE : 383 521 3061/PD
  • MINTEX : MDC1658C
  • NAPA : NBD5082
  • SKF : VKBD 80196 V2
  • TEXTAR : 92122505
  • VALEO : 186732
  • VALEO : 672667
