BREMBO

Brembo 09.C896.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.C896.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£101.22 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW

X3 (E83)

Description	Cylinder Capacity	Horse Power	Year
3.0 sd	2993 CCM	286 HP	09/2006 - 08/2008

X5 (E53)

Description	Cylinder Capacity	Horse Power	Year
4.4 i	4398 CCM	286 HP	01/2000 - 09/2003
3.0 d	2925 CCM	184 HP	04/2001 - 09/2003
3.0 i	2979 CCM	231 HP	04/2000 - 10/2006
4.4 i	4398 CCM	320 HP	10/2003 - 10/2006
3.0 d	2993 CCM	218 HP	10/2003 - 09/2006
3.0 d	2993 CCM	211 HP	10/2003 - 09/2006

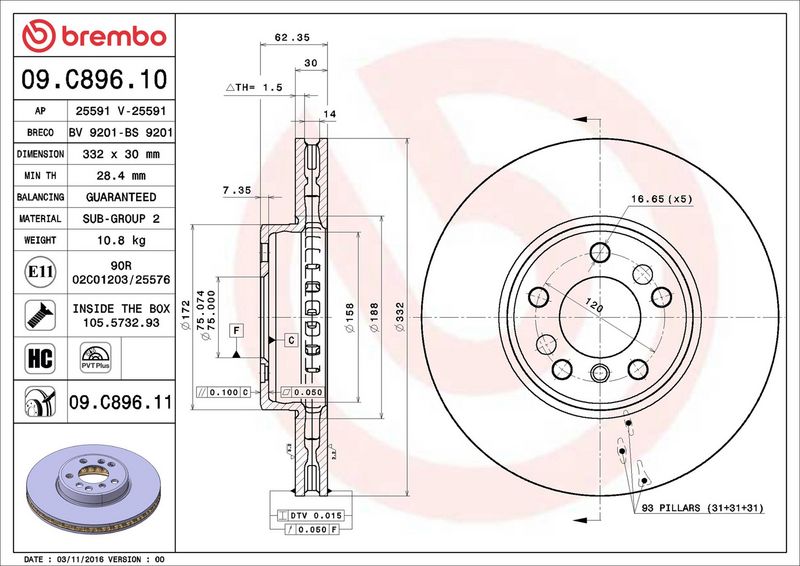

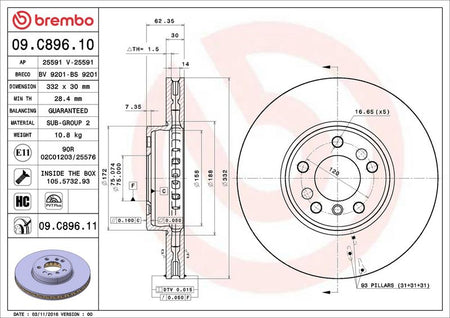

The Brembo 09.C896.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 30

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 62

Centering Diameter [mm] : 75

Outer Diameter [mm] : 332

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 28.4
