Brembo 09.C930.11 Brake Disc - 1
Brembo 09.C930.11 Brake Disc - 2
Brembo 09.C930.11 Brake Disc - 1
Brembo 09.C930.11 Brake Disc - 2
BREMBO

Brembo 09.C930.11 Brake Disc

5.0/5 78 reviews
SKU: 09.C930.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£106.24 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

TOYOTA
CROWN (CRS_, JZS_, GRS18_, UZS_)
Description Cylinder Capacity Horse Power Year
3.0 (GRS182) 2994 CCM 256 HP 09/2003 - 01/2008
LEXUS
GS (_S19_)
Description Cylinder Capacity Horse Power Year
450h (GRS191_, GWS191_, GRS191R, GWS191R) 3456 CCM 345 HP 02/2006 - 11/2011
300 (GRS190_, GRS190R) 2995 CCM 249 HP 04/2005 - 11/2011
430 (UZS190_, UZS190R) 4293 CCM 283 HP 04/2005 - 11/2011
460 (URS190_, URS190R) 4608 CCM 347 HP 09/2007 - 11/2011
GS (_L1_)
Description Cylinder Capacity Horse Power Year
450h (GWL10_, GWL10R) 3456 CCM 345 HP 03/2012 - 09/2018
250 (GRL11_, GRL11R) 2499 CCM 209 HP From 01/2012
450h (GWL10_, GWL10, GWL10R) 3456 CCM 345 HP 03/2012 - 09/2018
300h (AWL10_, AWL10R) 2494 CCM 223 HP From 10/2013
200t (ARL10_, ARL10R) 1998 CCM 245 HP From 09/2015
300 (ARL10_, ARL10R) 1998 CCM 245 HP From 09/2017
IS II (_E2_)
Description Cylinder Capacity Horse Power Year
200d (ALE20_, ALE20R) 2231 CCM 150 HP 07/2010 - 07/2012
250 (GSE20) 2499 CCM 208 HP 08/2005 - 03/2013
220d (ALE20) 2231 CCM 177 HP 08/2005 - 07/2012
250 AWD (GSE25_) 2499 CCM 208 HP 10/2005 - 03/2013
IS C (GSE2_)
Description Cylinder Capacity Horse Power Year
250 (GSE20) 2499 CCM 208 HP 04/2009 - 06/2015
IS III (_E3_)
Description Cylinder Capacity Horse Power Year
200t (ASE30) 1998 CCM 245 HP From 08/2015
300 (ASE30_, ASE30R) 1998 CCM 245 HP From 10/2017
RC (_C1_)
Description Cylinder Capacity Horse Power Year
200t (ASC10) 1998 CCM 245 HP From 08/2015
300 (ASC10_, ASC10R) 1998 CCM 245 HP From 11/2017

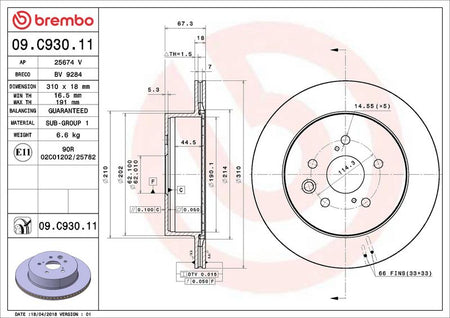

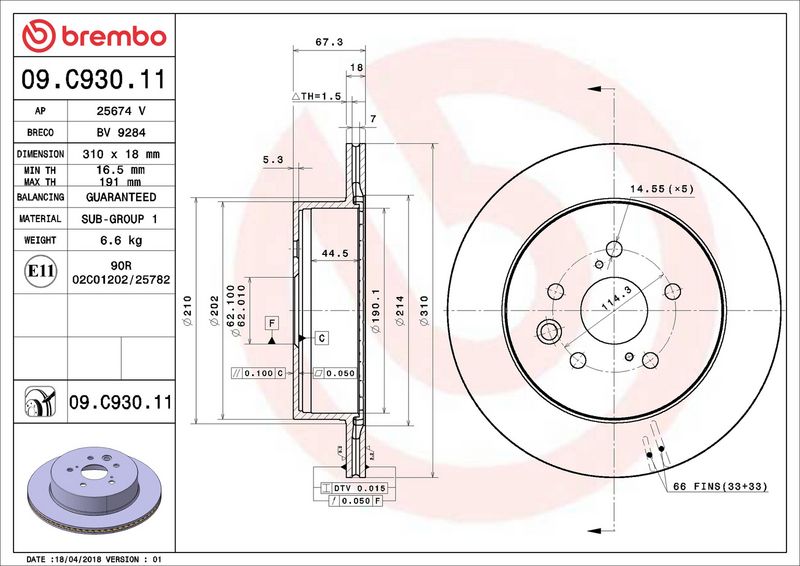

The Brembo 09.C930.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 18 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 18
Number of Holes : 5
Height [mm] : 67
Centering Diameter [mm] : 62
Outer Diameter [mm] : 310
Surface : Coated
Minimum thickness [mm] : 16.5
  • Vendor BREMBO
  • SKU 09.C930.11
  • Barcode 8020584232309
  • TOYOTA : 4243130290 4243130330
  • LEXUS : 4243130290 4243130310 4243130330
  • TOYOTA (FAW) : 424310N020
  • APEC : DSK2558
  • APEC : SDK6525
  • BLUE PRINT : ADT343203
  • BORG & BECK : BBD4535
  • BOSCH : 0 986 479 615
  • DELPHI : BG4024
  • Fahren : FBD6525
  • FEBI BILSTEIN : 108546
  • FTE : 9072806
  • FTE : 9082777
  • HELLA : 8DD 355 112-881
  • MEYLE : 30-15 523 0036
  • MINTEX : MDC2250
  • NAPA : NBD5616
  • SKF : VKBD 90386 V2
  • TEXTAR : 92148003
  • TRW : DF6063
  • TRW : DF6691
  • VALEO : 672686
