BREMBO

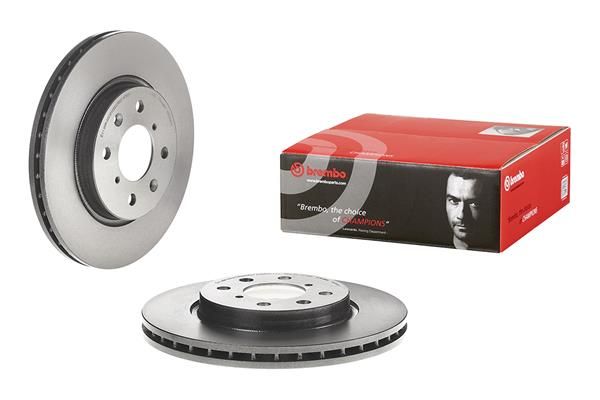

Brembo 09.C934.11 Brake Disc

SKU: 09.C934.11

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£92.43 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI

SWIFT III (FZ, NZ)

Description	Cylinder Capacity	Horse Power	Year
1.2 (AZH412, ZC72S)	1242 CCM	94 HP	10/2010 - 04/2017
1.3 DDiS (AZG413D, ZC02S, ZC92S)	1248 CCM	75 HP	10/2010 - 04/2017
1.2 (AZG412, ZC72S)	1242 CCM	90 HP	10/2010 - 04/2017
1.6 (AZG416, AZH416, RS416, ZC32S, ZA32S)	1586 CCM	136 HP	01/2012 - 04/2017

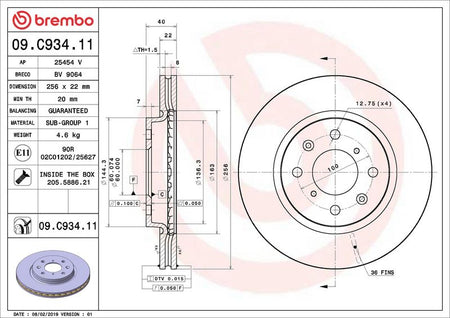

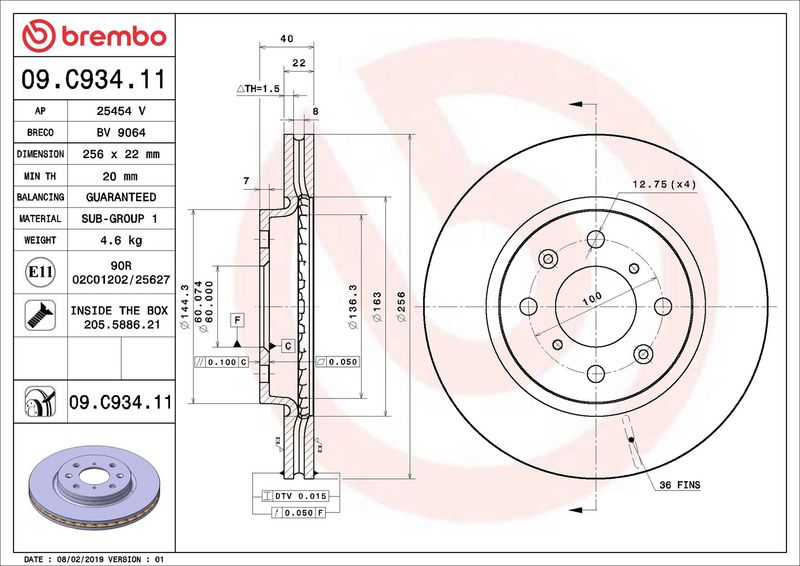

The Brembo 09.C934.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 22

Number of Holes : 4

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 40

Centering Diameter [mm] : 60

Outer Diameter [mm] : 256

Surface : Coated

Minimum thickness [mm] : 20

BLUE PRINT : ADK84338
BORG & BECK : BBD5217
BOSCH : 0 986 479 788
DELPHI : BG4340
FEBI BILSTEIN : 108497
FTE : 9072156
HELLA : 8DD 355 117-371
MEYLE : 33-15 521 0018/PD
MINTEX : MDC2304
SKF : VKBD 80228 V2
TEXTAR : 92232803
TRW : DF6232

Brembo 09.C934.11 Brake Disc
