Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.C936.11 Brake Disc - 1
Brembo 09.C936.11 Brake Disc - 2
Brembo 09.C936.11 Brake Disc - 1
Brembo 09.C936.11 Brake Disc - 2
BREMBO

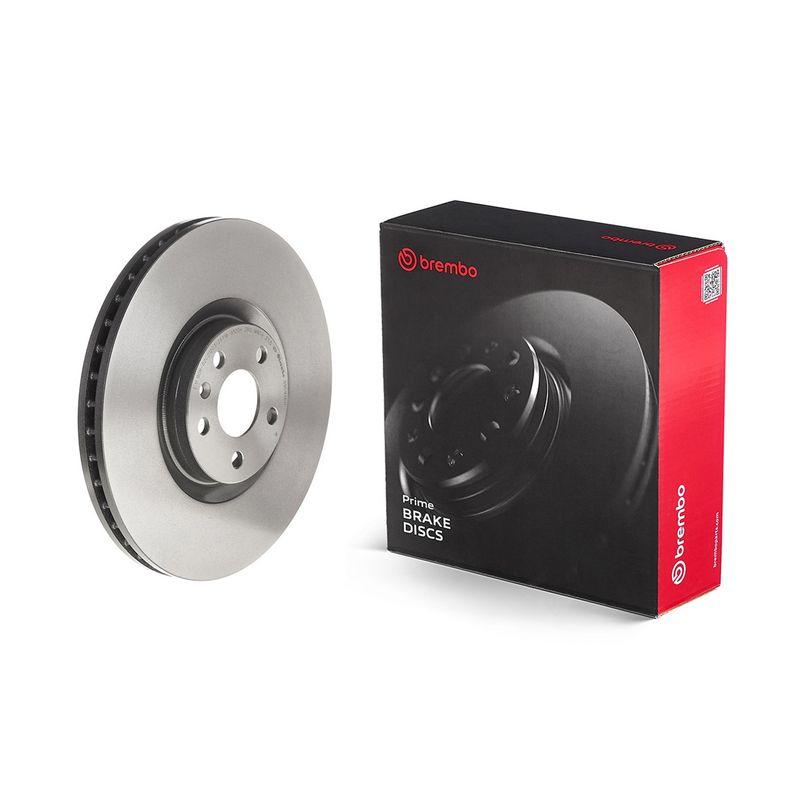

Brembo 09.C936.11 Brake Disc

SKU: 09.C936.11
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£74.47 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
C40 (539)
Description Cylinder Capacity Horse Power Year
Recharge AWD 408 HP 10/2021 - 12/2024
Recharge 231 HP 04/2022 - 12/2022
Recharge 238 HP 01/2023 - 12/2024
Recharge 252 HP 01/2023 - 12/2024
Recharge AWD 408 HP 11/2022 - 12/2024
EC40 (539)
Description Cylinder Capacity Horse Power Year
EV 238 HP From 04/2024
EV 252 HP From 04/2024
EV AWD 442 HP From 04/2024
EV AWD 408 HP From 04/2024
EX40 (536)
Description Cylinder Capacity Horse Power Year
EV 238 HP From 04/2024
EV 252 HP From 04/2024
EV AWD 442 HP From 04/2024
EV AWD 408 HP From 04/2024
S60 III (224)
Description Cylinder Capacity Horse Power Year
T5 1969 CCM 250 HP 02/2019 - 12/2021
T4 1969 CCM 190 HP 02/2019 - 12/2021
T8 Twin Engine AWD 1969 CCM 390 HP 02/2019 - 12/2022
T6 Twin Engine AWD 1969 CCM 340 HP 02/2019 - 12/2022
T5 AWD 1969 CCM 250 HP From 02/2019
T6 AWD 1969 CCM 310 HP 05/2019 - 12/2021
T5 AWD 1969 CCM 254 HP 05/2019 - 12/2021
T5 AWD 1969 CCM 249 HP 05/2019 - 12/2021
T5 Polestar 1969 CCM 253 HP 07/2019 - 12/2021
T4 Polestar 1969 CCM 210 HP 07/2019 - 12/2021
B4 Mild-Hybrid 1969 CCM 197 HP From 03/2020
B5 Mild-Hybrid 1969 CCM 250 HP From 03/2020
B5 Mild-Hybrid AWD 1969 CCM 250 HP From 03/2020
S90 II (234)
Description Cylinder Capacity Horse Power Year
T6 AWD 1969 CCM 320 HP 03/2016 - 12/2021
D5 AWD 1969 CCM 235 HP 03/2016 - 12/2021
D4 1969 CCM 190 HP 03/2016 - 12/2021
T5 1969 CCM 254 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
D3 1969 CCM 150 HP 03/2016 - 12/2021
2.0 1969 CCM 249 HP 03/2016 - 12/2021
T4 1969 CCM 190 HP 10/2017 - 12/2021
T6 AWD 1969 CCM 310 HP 10/2017 - 12/2021
T5 1969 CCM 250 HP 10/2017 - 12/2021
T8 Hybrid AWD 1969 CCM 390 HP 04/2018 - 12/2022
D4 1969 CCM 163 HP 09/2018 - 12/2021
T8 Hybrid Polestar AWD 1969 CCM 317 HP From 01/2019
T5 Drive-E Polestar 1969 CCM 253 HP 10/2017 - 12/2021
D4 Drive-E Polestar 1969 CCM 200 HP 03/2016 - 12/2021
V60 II (225)
Description Cylinder Capacity Horse Power Year
T5 1969 CCM 250 HP 02/2018 - 12/2021
T6 AWD 1969 CCM 310 HP 02/2018 - 12/2021
T8 Plug-in Hybrid AWD 1969 CCM 390 HP 02/2018 - 12/2022
D3 1969 CCM 150 HP 02/2018 - 12/2021
D4 1969 CCM 190 HP 02/2018 - 12/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 12/2021
D4 AWD 1969 CCM 190 HP 09/2018 - 12/2021
D4 Polestar 1969 CCM 200 HP 02/2018 - 12/2021
T6 Plug-in Hybrid AWD 1969 CCM 340 HP 03/2019 - 12/2022
T8 Plug-in Hybrid Polestar AWD 1969 CCM 405 HP 05/2019 - 12/2022
T4 1969 CCM 190 HP From 05/2019
T5 AWD 1969 CCM 250 HP 09/2018 - 12/2021
2.0 T6 Drive-E Polestar AWD 1969 CCM 326 HP 02/2018 - 12/2021
T5 Polestar 1969 CCM 253 HP 07/2019 - 12/2021
T5 Polestar AWD 1969 CCM 253 HP From 07/2019
V60 II Cross Country (227)
Description Cylinder Capacity Horse Power Year
B4 Mild-Hybrid AWD 1969 CCM 197 HP From 10/2020
B5 Mild-Hybrid AWD 1969 CCM 249 HP From 03/2022
D4 AWD 1969 CCM 190 HP 12/2018 - 12/2021
T5 AWD 1969 CCM 250 HP 12/2018 - 12/2021
B5 Mild-Hybrid AWD 1969 CCM 250 HP From 01/2020
V90 II Cross Country (236)
Description Cylinder Capacity Horse Power Year
T5 AWD 1969 CCM 254 HP 10/2016 - 12/2018
T5 AWD 1969 CCM 249 HP 03/2016 - 12/2021
T5 AWD 1969 CCM 250 HP From 10/2017
D4 AWD 1969 CCM 163 HP From 09/2018
T5 Polestar AWD 1969 CCM 253 HP From 10/2017
B5 Mild Hybrid AWD 1969 CCM 250 HP From 03/2020
B5 Mild-Hybrid 1969 CCM 249 HP From 03/2022
T6 AWD 1969 CCM 320 HP From 10/2016
D5 AWD 1969 CCM 235 HP From 10/2016
D4 AWD 1969 CCM 190 HP From 10/2016
T6 AWD 1969 CCM 310 HP From 10/2017
B6 Mild-Hybrid AWD 1969 CCM 299 HP From 03/2020
B5 Mild Hybrid AWD 1969 CCM 235 HP From 12/2020
B4 Mild-Hybrid AWD 1969 CCM 197 HP From 10/2020
B5 Mild Hybrid Polestar AWD 1969 CCM 245 HP From 11/2021
V90 II Estate (235)
Description Cylinder Capacity Horse Power Year
T5 1969 CCM 254 HP 03/2016 - 12/2018
T6 AWD 1969 CCM 320 HP 03/2016 - 12/2018
D4 1969 CCM 190 HP 03/2016 - 12/2021
D5 AWD 1969 CCM 235 HP 03/2016 - 12/2021
T8 Plug-in-Hybrid AWD 1969 CCM 407 HP 03/2016 - 12/2018
D3 1969 CCM 150 HP 03/2016 - 12/2021
D3 AWD 1969 CCM 150 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
T5 1969 CCM 250 HP 10/2017 - 12/2021
T6 AWD 1969 CCM 310 HP 10/2017 - 12/2021
T4 1969 CCM 190 HP 10/2017 - 12/2021
T8 Hybrid AWD 1969 CCM 390 HP 04/2018 - 12/2022
D4 1969 CCM 163 HP 09/2018 - 12/2021
T8 Plug-in Hybrid Polestar AWD 1969 CCM 317 HP 05/2018 - 12/2022
T6 Polestar AWD 1969 CCM 326 HP 10/2017 - 12/2021
XC40 (536)
Description Cylinder Capacity Horse Power Year
T5 AWD 1969 CCM 247 HP 10/2017 - 09/2021
D4 AWD 1969 CCM 190 HP 10/2017 - 09/2021
T4 1969 CCM 190 HP 09/2018 - 12/2021
T4 AWD 1969 CCM 190 HP From 09/2018
T3 1477 CCM 156 HP 03/2018 - 03/2019
D3 1969 CCM 150 HP 09/2018 - 09/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 09/2021
T5 AWD 1969 CCM 249 HP 10/2017 - 12/2022
D4 Polestar AWD 1969 CCM 200 HP 01/2019 - 09/2021
T3 1477 CCM 163 HP 03/2019 - 12/2022
T5 Plug-in Hybrid 1477 CCM 262 HP From 06/2019
T2 1477 CCM 129 HP From 06/2019
T5 Polestar AWD 1969 CCM 249 HP 10/2017 - 09/2019
B4 Mild-Hybrid AWD 1969 CCM 197 HP From 09/2019
B4 Mild-Hybrid 1969 CCM 197 HP From 09/2019
XC60 II (246)
Description Cylinder Capacity Horse Power Year
D4 AWD 1969 CCM 190 HP 03/2017 - 12/2021
D5 AWD 1969 CCM 235 HP 03/2017 - 12/2022
T5 AWD 1969 CCM 254 HP 03/2017 - 12/2021
T6 AWD 1969 CCM 320 HP 03/2017 - 12/2021
T8 Hybrid AWD 1969 CCM 407 HP 03/2017 - 12/2022
T5 1969 CCM 254 HP From 03/2017
T5 1969 CCM 250 HP 10/2017 - 12/2020
T5 AWD 1969 CCM 250 HP 10/2017 - 12/2020
T6 AWD 1969 CCM 310 HP 10/2017 - 12/2021
T5 AWD 1969 CCM 249 HP 10/2017 - 12/2021
T8 Hybrid AWD 1969 CCM 390 HP 02/2018 - 12/2022
D4 1969 CCM 190 HP 03/2017 - 12/2021
D3 1969 CCM 150 HP 03/2017 - 12/2021
T4 1969 CCM 190 HP 09/2018 - 12/2021
D4 1969 CCM 163 HP 12/2018 - 12/2021
XC90 II (256)
Description Cylinder Capacity Horse Power Year
T6 AWD 1969 CCM 320 HP 09/2014 - 12/2018
D5 AWD 1969 CCM 224 HP 09/2014 - 12/2016
T8 Hybrid AWD 1969 CCM 407 HP 06/2015 - 12/2018
D4 1969 CCM 190 HP 06/2015 - 12/2018
D4 AWD 1969 CCM 190 HP 10/2015 - 12/2018
T5 AWD 1969 CCM 254 HP 06/2015 - 12/2021
T8 Hybrid AWD 1969 CCM 405 HP 06/2015 - 12/2022
D5 AWD 1969 CCM 235 HP 03/2016 - 12/2019
T5 AWD 1969 CCM 249 HP 02/2016 - 12/2018
T6 AWD 1969 CCM 310 HP 10/2017 - 12/2021
T5 AWD 1969 CCM 250 HP 10/2017 - 12/2020
T6 Polestar AWD 1969 CCM 334 HP 01/2017 - 12/2021
B5 Mild-Hybrid AWD 1969 CCM 235 HP From 04/2019
T6 Polestar AWD 1969 CCM 326 HP 10/2017 - 12/2021
T5 Polestar AWD 1969 CCM 253 HP 07/2019 - 12/2020
POLESTAR
POLESTAR 2 (534)
Description Cylinder Capacity Horse Power Year
EV 408 HP 04/2019 - 12/2023
EV 231 HP From 04/2021
EV 224 HP 04/2021 - 12/2022
EV 476 HP From 01/2023
EV 272 HP From 03/2023
EV 299 HP From 03/2023
EV 421 HP From 03/2023

The Brembo 09.C936.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

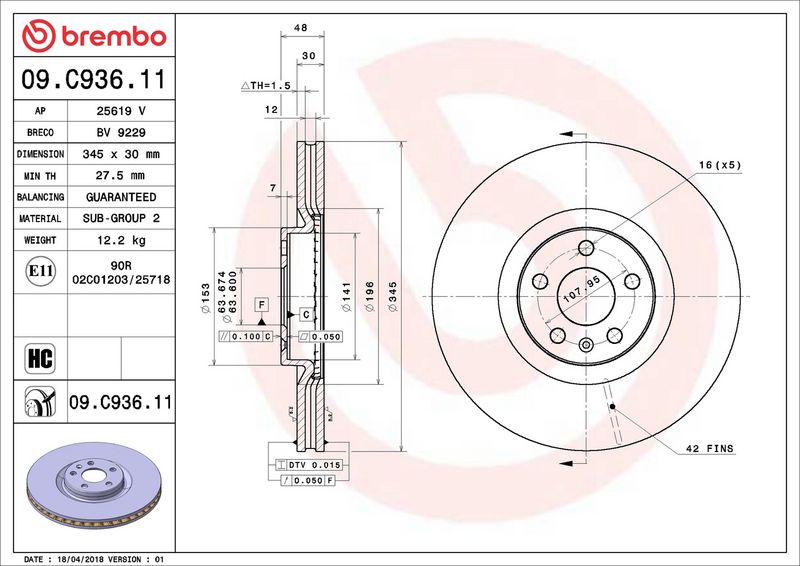

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Height [mm] : 48
Centering Diameter [mm] : 64
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 27.5
  • Vendor BREMBO
  • SKU 09.C936.11
  • Barcode 8020584228975
  • VOLVO : 31400568 314005680 31471752 314717520 32300811
  • VOLVO ASIA : 31471752 32300811
  • POLESTAR : 32301268
  • APEC : DSK3328
  • BLUE PRINT : ADF124378
  • BORG & BECK : BBD6165S
  • BOSCH : 0 986 479 J42
  • DELPHI : BG9231C
  • FEBI BILSTEIN : 107725
  • FTE : 9081354
  • HELLA : 8DD 355 126-371
  • MEYLE : 583 521 0045/PD
  • MINTEX : MDC2788C
  • NAPA : NBD5695
  • National : NBD1992
  • SKF : VKBD 81327 V1
  • TEXTAR : 92289805
  • TRW : DF6939S
  • VALEO : 672695
