BREMBO

Brembo 09.D061.11 Brake Disc

SKU: 09.D061.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£155.38 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
F-TYPE Convertible (X152)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 2995 CCM 340 HP From 10/2012
3.0 SCV6 S 2995 CCM 380 HP From 10/2012
5.0 SCV8 S 5000 CCM 495 HP From 10/2012
3.0 SCV6 S AWD 2995 CCM 380 HP From 12/2014
5.0 SCV8 R 5000 CCM 551 HP From 10/2013
5.0 SCV8 R AWD 5000 CCM 551 HP From 12/2014
5.0 SCV8 SVR / SCV8 P575 R AWD 5000 CCM 575 HP From 12/2015
SCV6 400 SPORT 2995 CCM 400 HP From 11/2016
SCV6 400 SPORT AWD 2995 CCM 400 HP From 11/2016
2.0 Ti4 1997 CCM 300 HP From 07/2017
5.0 SCV8 SVR 5000 CCM 575 HP From 05/2015
5.0 SCV8 P450 5000 CCM 450 HP From 12/2019
5.0 SCV8 P450 AWD 5000 CCM 450 HP From 12/2019
F-TYPE Coupe (X152)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 2995 CCM 340 HP From 10/2013
3.0 SCV6 S 2995 CCM 380 HP From 10/2013
5.0 SCV8 R 5000 CCM 551 HP From 10/2013
3.0 SCV6 S AWD 2995 CCM 380 HP From 12/2014
5.0 SCV8 R AWD 5000 CCM 551 HP From 12/2014
5.0 SCV8 SVR / SCV8 P575 R 5000 CCM 575 HP From 12/2015
3.0 SCV6 400 SPORT 2995 CCM 400 HP From 11/2016
3.0 SCV6 400 SPORT AWD 2995 CCM 400 HP From 11/2016
2.0 Ti4 1997 CCM 300 HP From 07/2017
5.0 SCV8 P450 5000 CCM 450 HP From 12/2019
5.0 SCV8 P450 AWD 5000 CCM 450 HP From 12/2019
XJ (X351)
Description Cylinder Capacity Horse Power Year
3.0 SDV6 2993 CCM 275 HP 10/2009 - 04/2016
5.0 V8 5000 CCM 385 HP 10/2009 - 12/2019
3.0 SCV6 2995 CCM 340 HP 03/2012 - 12/2019
2.0 Ti4 1999 CCM 241 HP 05/2012 - 12/2019
3.0 V6 2967 CCM 238 HP 01/2011 - 12/2019
3.0 SCV6 AWD 2995 CCM 340 HP 10/2012 - 12/2019
3.0 SDV6 2993 CCM 300 HP 04/2015 - 12/2019

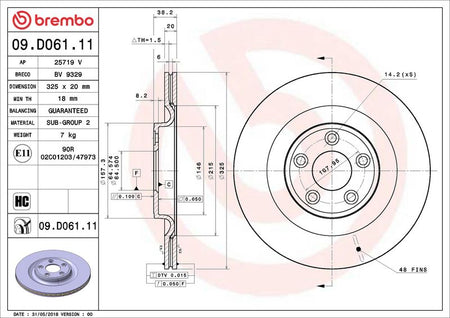

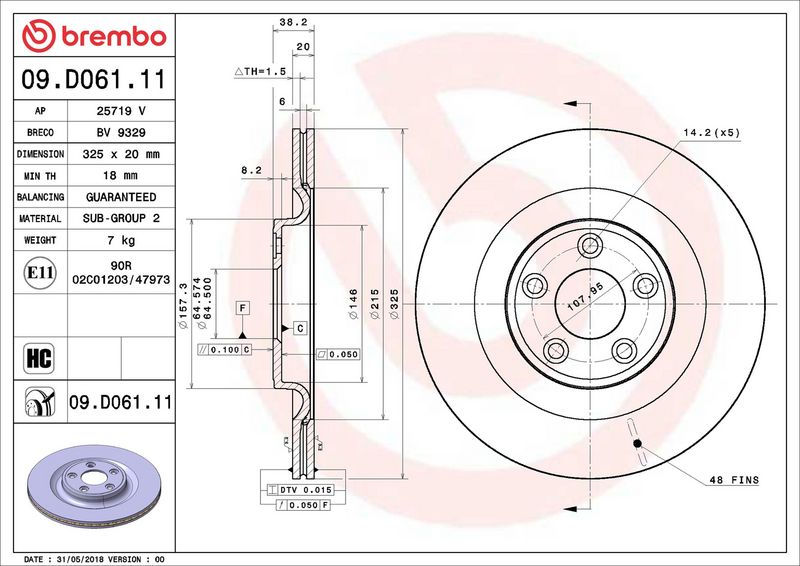

The Brembo 09.D061.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 65 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 20
Number of Holes : 5
Height [mm] : 38
Centering Diameter [mm] : 65
Outer Diameter [mm] : 325
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 18
  • Vendor BREMBO
  • SKU 09.D061.11
  • Barcode 8020584235706
  • JAGUAR : C2D27617 C2D61073 C2S27617 T2R5941
  • APEC : DSK3200
  • APEC : DSK3489
  • APEC : SDK6991
  • BLUE PRINT : ADJ134360
  • BORG & BECK : BBD5472
  • DELPHI : BG4833C
  • DELPHI : BG5356C
  • FEBI BILSTEIN : 106299
  • HELLA : 8DD 355 115-581
  • MEYLE : 18-15 523 0008/PD
  • MEYLE : 18-15 523 0012/PD
  • MINTEX : MDC2955C
  • National : NBD2161
  • SKF : VKBD 90897 V1
  • TEXTAR : 92319905
  • TRW : DF6816S
