BREMBO

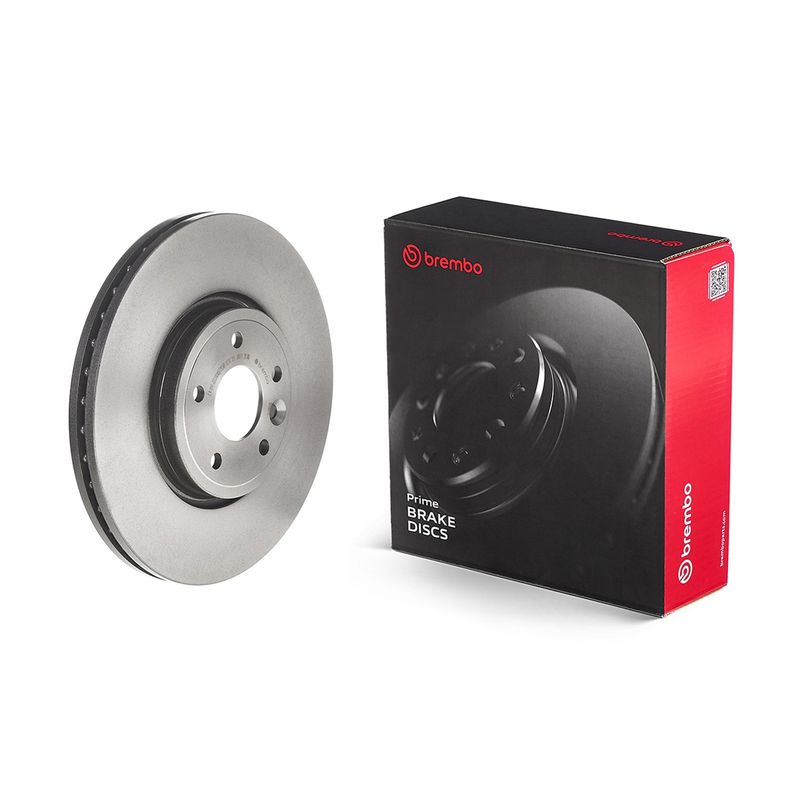

Brembo 09.D062.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.D062.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£117.15 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

JAGUAR

XE (X760)

Description	Cylinder Capacity	Horse Power	Year
2.0 D	1999 CCM	163 HP	From 03/2015
2.0 D	1999 CCM	180 HP	From 03/2015
2.0	1999 CCM	200 HP	From 03/2015
2.0	1999 CCM	241 HP	From 03/2015
2.0 D AWD	1999 CCM	180 HP	From 10/2015
2.0 D AWD	1999 CCM	241 HP	From 02/2017
2.0	1997 CCM	250 HP	From 02/2017
2.0 AWD	1997 CCM	250 HP	From 02/2017
2.0 AWD	1997 CCM	300 HP	From 06/2017
2.0	1997 CCM	200 HP	From 02/2017

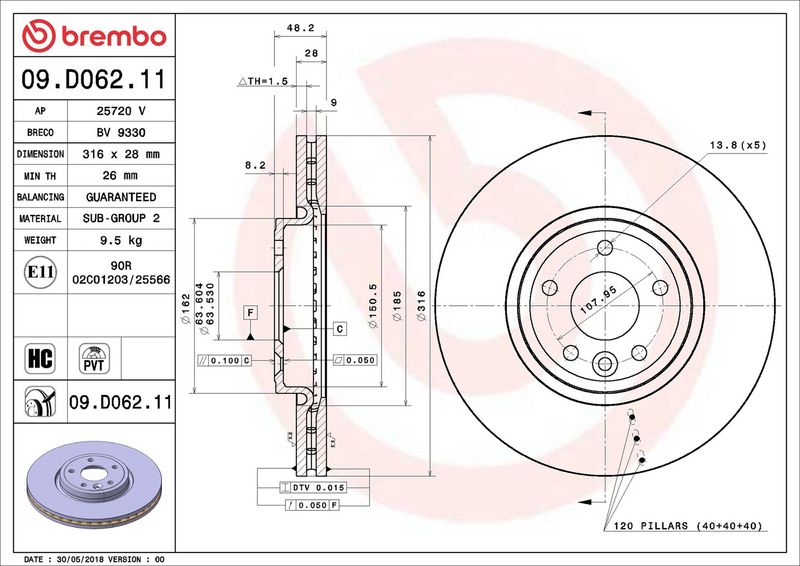

The Brembo 09.D062.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 28

Number of Holes : 5

Height [mm] : 48

Centering Diameter [mm] : 64

Outer Diameter [mm] : 316

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 26
