Brembo 09.D064.11 Brake Disc - 1
Brembo 09.D064.11 Brake Disc - 2
Brembo 09.D064.11 Brake Disc - 1
Brembo 09.D064.11 Brake Disc - 2
BREMBO

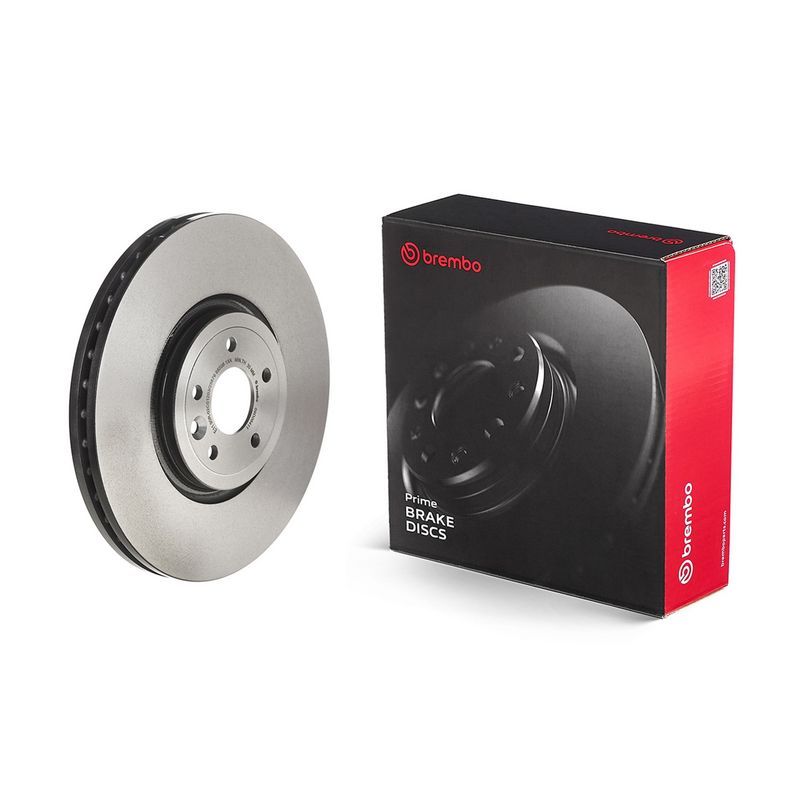

Brembo 09.D064.11 Brake Disc

SKU: 09.D064.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£147.13 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
XE (X760)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 03/2015
2.0 D 1999 CCM 180 HP From 03/2015
2.0 1999 CCM 200 HP From 03/2015
2.0 1999 CCM 241 HP From 03/2015
3.0 S 2995 CCM 340 HP From 03/2015
2.0 D AWD 1999 CCM 180 HP From 10/2015
2.0 D AWD 1999 CCM 241 HP From 02/2017
2.0 1997 CCM 250 HP From 02/2017
2.0 AWD 1997 CCM 250 HP From 02/2017
3.0 S 2995 CCM 381 HP From 02/2017
2.0 AWD 1997 CCM 300 HP From 06/2017
2.0 1997 CCM 300 HP From 06/2017
2.0 1997 CCM 200 HP From 02/2017
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
XF II (X260)
Description Cylinder Capacity Horse Power Year
3.0 2995 CCM 340 HP From 05/2015
3.0 2995 CCM 380 HP From 05/2015
2.0 1999 CCM 241 HP From 05/2015
3.0 D 2993 CCM 300 HP From 05/2015
3.0 AWD 2995 CCM 340 HP From 07/2015
3.0 AWD 2995 CCM 380 HP From 07/2015
2.0 1997 CCM 200 HP From 03/2017
2.0 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 300 HP From 09/2017
XF SPORTBRAKE (X260)
Description Cylinder Capacity Horse Power Year
3.0 D 2993 CCM 300 HP From 07/2017
2.0 1997 CCM 250 HP From 07/2017
3.0 AWD 2995 CCM 380 HP From 07/2017
3.0 2995 CCM 380 HP From 07/2017
2.0 1997 CCM 200 HP From 07/2017
2.0 AWD 1997 CCM 300 HP From 08/2018
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
2.0 D200 MHEV AWD 1997 CCM 204 HP From 11/2020

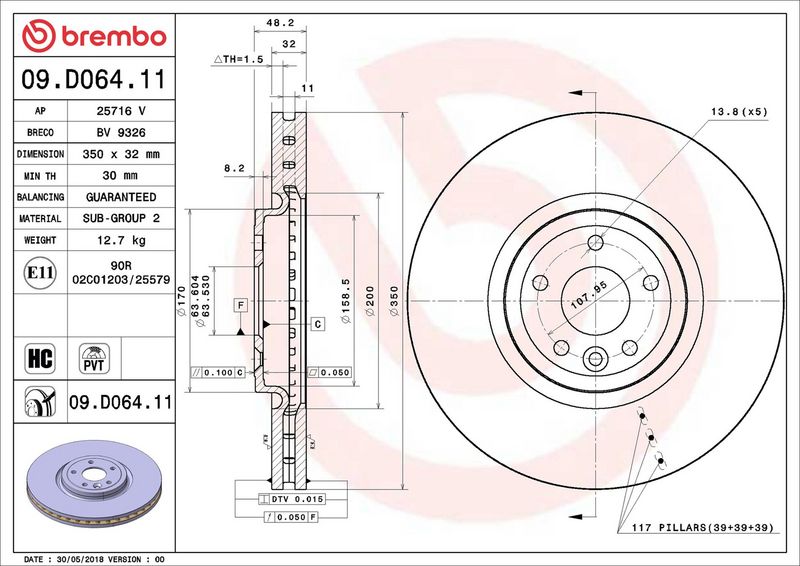

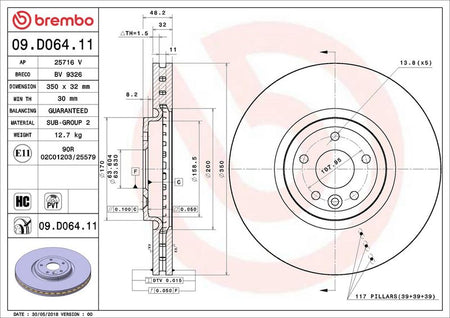

The Brembo 09.D064.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Height [mm] : 48
Centering Diameter [mm] : 64
Outer Diameter [mm] : 350
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 30
  • Vendor BREMBO
  • SKU 09.D064.11
  • Barcode 8020584234617
  • JAGUAR : T4N1803
  • APEC : DSK3184
  • APEC : SDK6990
  • BLUE PRINT : ADJ134367
  • BORG & BECK : BBD6103S
  • BOSCH : 0 986 479 G33
  • DELPHI : BG9167C
  • FEBI BILSTEIN : 108677
  • FTE : 9082903
  • HELLA : 8DD 355 132-471
  • MEYLE : 18-83 521 0014/PD
  • MINTEX : MDC2906C
  • NAPA : NBD5841
  • National : NBD2084
  • TEXTAR : 92308105
