Brembo 09.D064.21 Brake Disc - 1
Brembo 09.D064.21 Brake Disc - 2
Brembo 09.D064.21 Brake Disc - 1
Brembo 09.D064.21 Brake Disc - 2
BREMBO

Brembo 09.D064.21 Brake Disc

SKU: 09.D064.21
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£141.29 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
F-PACE (X761)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 AWD 2995 CCM 340 HP From 09/2015
3.0 SCV6 AWD 2995 CCM 380 HP From 09/2015
3.0 SDV6 AWD 2993 CCM 300 HP From 09/2015
2.0 TD4 1999 CCM 180 HP From 09/2015
2.0 TD4 AWD 1999 CCM 180 HP From 09/2015
2.0 TD4 1999 CCM 163 HP From 02/2017
2.0 SD4 AWD 1999 CCM 241 HP From 02/2017
2.0 Ti4 AWD 1997 CCM 250 HP From 02/2017
2.0 Ti4 AWD 1997 CCM 300 HP From 06/2017
2.0 Ti4 1997 CCM 250 HP From 09/2017
2.0 D165 MHEV 1997 CCM 163 HP From 10/2020
2.0 D200 MHEV 1997 CCM 204 HP From 10/2020
3.0 D300 MHEV 2997 CCM 300 HP From 10/2020
3.0 P400 MHEV 2996 CCM 400 HP From 10/2020
I-PACE (X590)
Description Cylinder Capacity Horse Power Year
EV400 AWD 400 HP From 02/2018
EV320 AWD 321 HP From 10/2020
LAND ROVER
RANGE ROVER VELAR (L560)
Description Cylinder Capacity Horse Power Year
2.0 D180 TD4 4x4 1999 CCM 180 HP From 03/2017
2.0 D240 SD4 4x4 1999 CCM 241 HP From 03/2017
3.0 P380 SCV6 4x4 2995 CCM 380 HP From 03/2017
2.0 P250 Si4 4x4 1997 CCM 250 HP From 03/2017
3.0 D300 SDV6 4x4 2993 CCM 300 HP From 03/2017
2.0 P300 Si4 4x4 1997 CCM 300 HP From 03/2017
3.0 D275 SDV6 4x4 2993 CCM 275 HP From 04/2018
3.0 P340 SCV6 4x4 2995 CCM 340 HP From 04/2018
2.0 D200 MHEV 4x4 1997 CCM 204 HP From 07/2020
3.0 D300 MHEV 4x4 2997 CCM 300 HP From 07/2020
3.0 P400 MHEV 4x4 2995 CCM 400 HP From 07/2020
2.0 P400 Hybrid 4x4 1997 CCM 404 HP From 07/2020

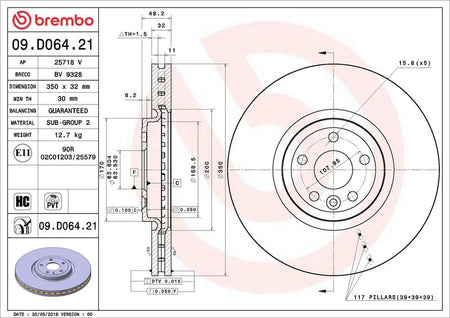

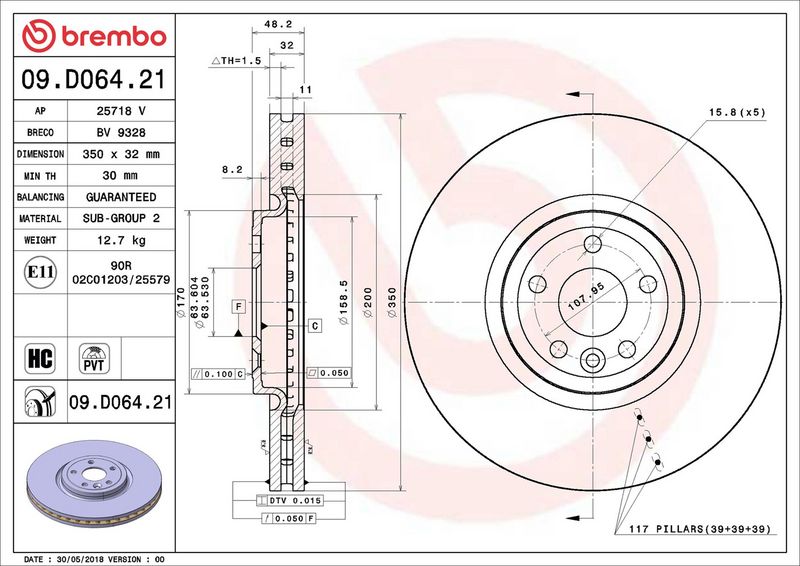

The Brembo 09.D064.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Height [mm] : 48
Centering Diameter [mm] : 64
Outer Diameter [mm] : 350
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 30
  • Vendor BREMBO
  • SKU 09.D064.21
  • Barcode 8020584234624
  • JAGUAR : LR090685 T4A2343 T4K5014
  • LAND ROVER : LR090685
  • BLUE PRINT : ADJ134374
  • BORG & BECK : BBD6144S
  • BOSCH : 0 986 479 G33
  • DELPHI : BG9178C
  • FEBI BILSTEIN : 107221
  • FTE : 9082903
  • HELLA : 8DD 355 132-481
  • MEYLE : 18-83 521 0014/PD
  • MINTEX : MDC2907C
  • National : NBD2089
  • TEXTAR : 92308205
