Brembo 09.D065.11 Brake Disc - 1
Brembo 09.D065.11 Brake Disc - 2
Brembo 09.D065.11 Brake Disc - 1
Brembo 09.D065.11 Brake Disc - 2
BREMBO

Brembo 09.D065.11 Brake Disc

SKU: 09.D065.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£77.54 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
2 Hatchback (DL, DJ)
Description Cylinder Capacity Horse Power Year
1.5 D (DJ5FS) 1499 CCM 105 HP From 08/2014
1.5 SKYACTIV-G (DJLFS) 1496 CCM 115 HP From 08/2014
1.5 1496 CCM 75 HP From 08/2014
1.5 SKYACTIV-G 1496 CCM 90 HP From 08/2014
1.5 (DJ2HA) 1496 CCM 107 HP From 11/2014
1.5 SKYACTIV-G M Hybrid 1496 CCM 90 HP From 08/2019
1.5 SKYACTIV-G M Hybrid 1496 CCM 75 HP From 08/2019
1.5 E-SKYACTIV G 1496 CCM 116 HP From 10/2021
MX-5 IV (ND__)
Description Cylinder Capacity Horse Power Year
1.5 (ND2E, ND5R) 1496 CCM 131 HP From 06/2015
1.5 (ND6E, ND5RC) 1496 CCM 132 HP From 05/2018
MX-5 RF Targa (ND)
Description Cylinder Capacity Horse Power Year
1.5 1496 CCM 131 HP From 08/2017
1.5 (ND6E) 1496 CCM 132 HP From 05/2018

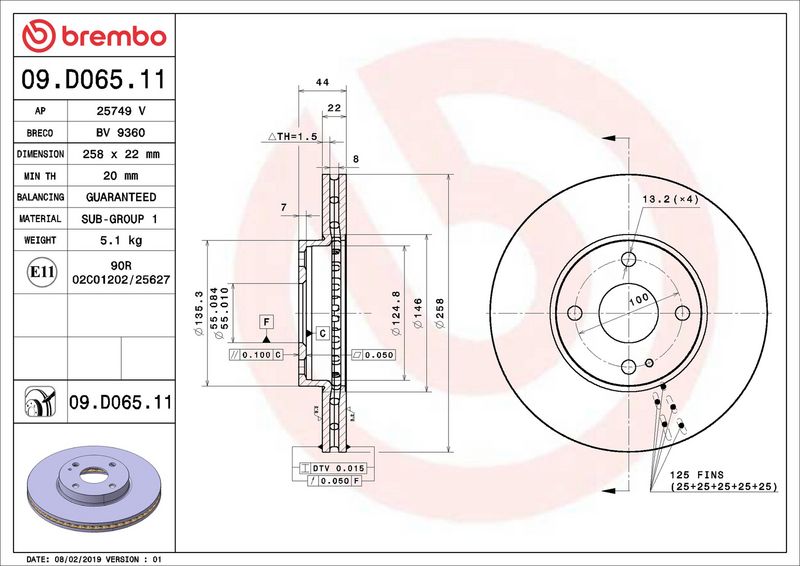

The Brembo 09.D065.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 4
Height [mm] : 44
Centering Diameter [mm] : 55
Outer Diameter [mm] : 258
Surface : Coated
Minimum thickness [mm] : 20
  • Vendor BREMBO
  • SKU 09.D065.11
  • Barcode 8020584236222
  • MAZDA : D09T33251 DA6A33251 DA6A33251A DA7R33251
  • BLUE PRINT : ADM543136
  • BORG & BECK : BBD5476
  • BOSCH : 0 986 479 E56
  • DELPHI : BG4942C
  • FEBI BILSTEIN : 170740
  • FTE : 9082629
  • HELLA : 8DD 355 131-821
  • MEYLE : 35-15 521 0045/PD
  • MINTEX : MDC2849C
  • National : NBD2015
  • SKF : VKBD 81134 V2
  • TEXTAR : 92300903
  • TRW : DF6793
  • VALEO : 673401
