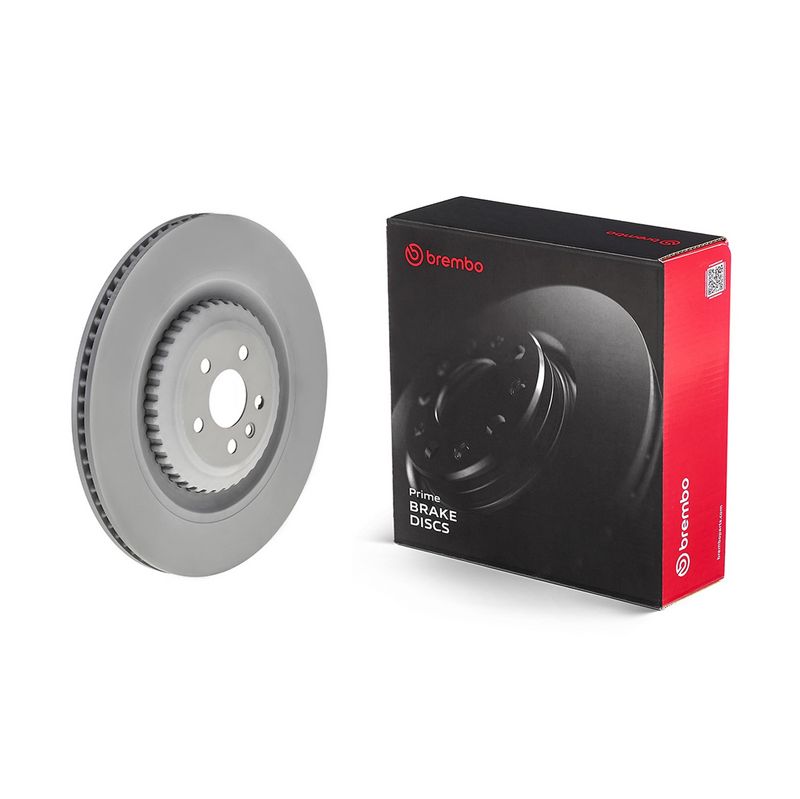

Brembo 09.D070.23 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.D070.23

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£334.40 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

JAGUAR

F-PACE (X761)

Description	Cylinder Capacity	Horse Power	Year
3.0 SCV6 AWD	2995 CCM	340 HP	From 09/2015
3.0 SCV6 AWD	2995 CCM	380 HP	From 09/2015
2.0 Ti4 AWD	1997 CCM	250 HP	From 02/2017
2.0 Ti4 AWD	1997 CCM	300 HP	From 06/2017
5.0 SCV8 SVR AWD	5000 CCM	551 HP	From 08/2018
3.0 P400 MHEV	2996 CCM	400 HP	From 10/2020

LAND ROVER

RANGE ROVER VELAR (L560)

Description	Cylinder Capacity	Horse Power	Year
5.0 SCV8 4x4	5000 CCM	551 HP	From 01/2019

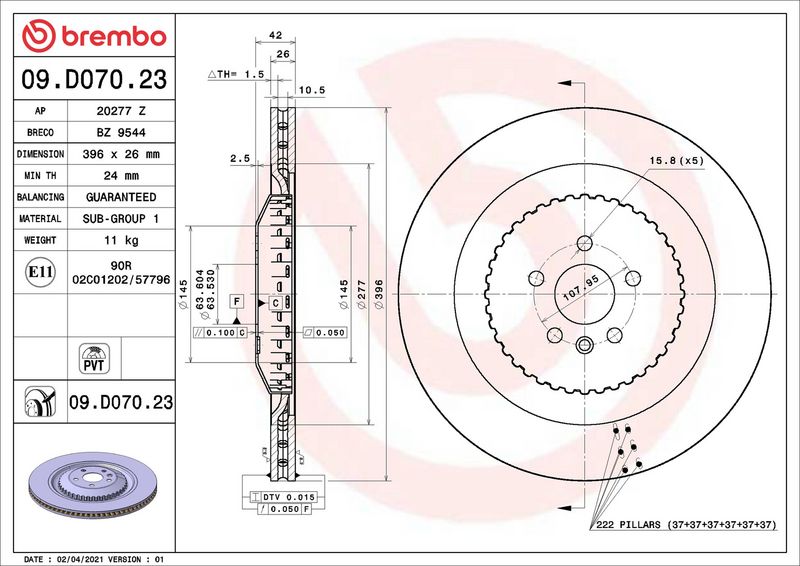

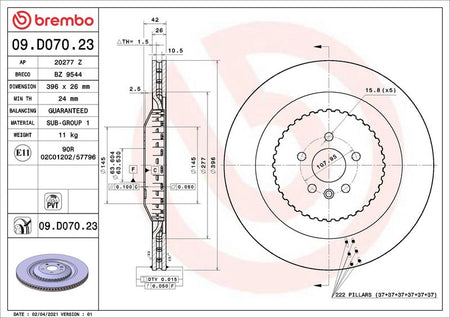

The Brembo 09.D070.23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Steel Brake Disc Hub disc construction, 26 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Type : two-piece brake disc

Brake Disc Type : Steel Brake Disc Hub

Brake Disc Thickness [mm] : 26

Number of Holes : 5

Height [mm] : 42

Centering Diameter [mm] : 64

Outer Diameter [mm] : 396

Surface : Coated

Minimum thickness [mm] : 24
