BREMBO

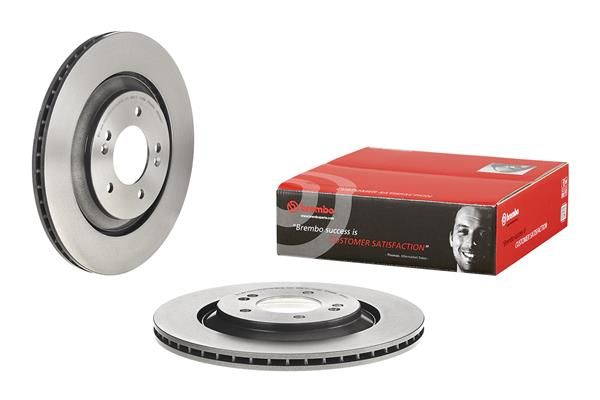

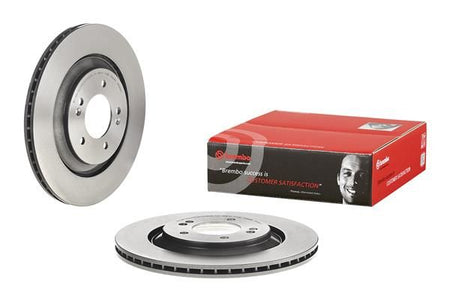

Brembo 09.D085.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.D085.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£95.17 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

HYUNDAI

i30 (PDE, PD, PDEN)

Description	Cylinder Capacity	Horse Power	Year
2.0 N	1998 CCM	250 HP	From 07/2017
2.0 N	1998 CCM	275 HP	From 07/2017

i30 FASTBACK (PDE, PDEN)

Description	Cylinder Capacity	Horse Power	Year
2.0 N	1998 CCM	250 HP	From 11/2017
2.0 N	1998 CCM	275 HP	11/2017 - 09/2020
2.0 N	1998 CCM	280 HP	From 03/2021

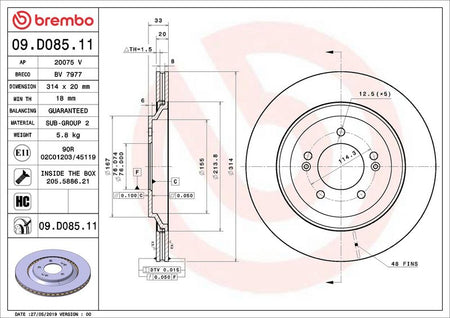

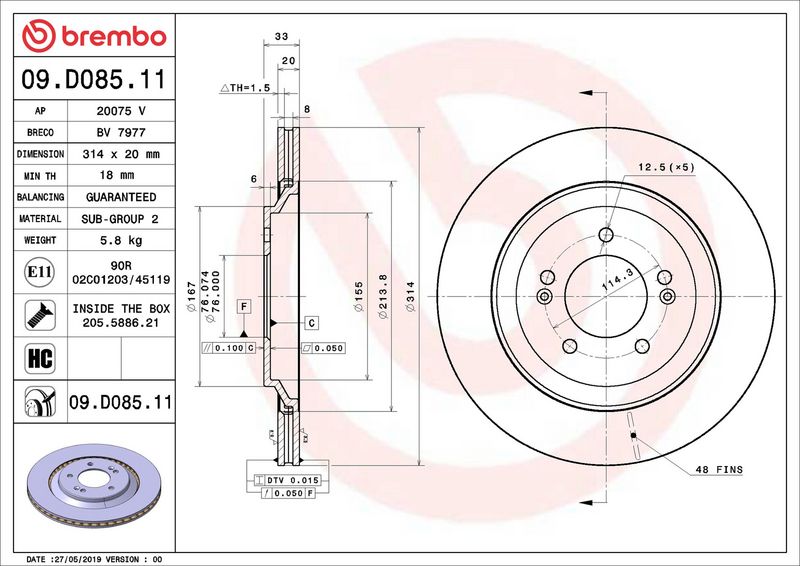

The Brembo 09.D085.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 76 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 20

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 33

Centering Diameter [mm] : 76

Outer Diameter [mm] : 314

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 18
