Brembo 09.D103.11 Brake Disc
Your selected vehicle
Regular price
£89.23
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

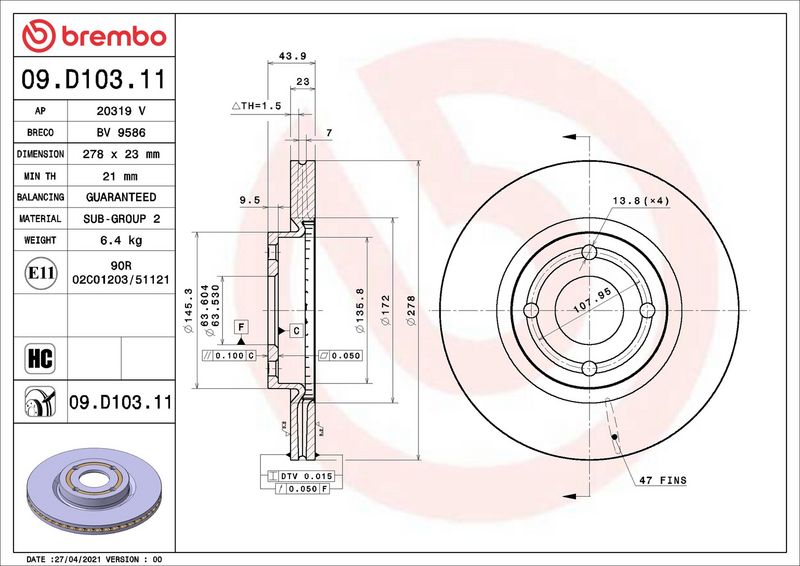

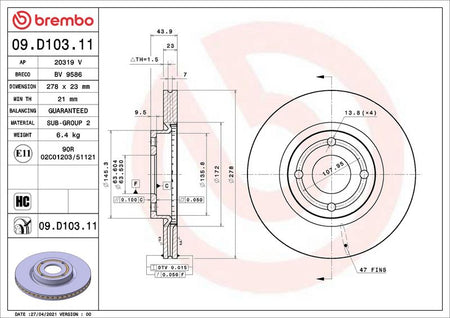

The Brembo 09.D103.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 23 mm brake disc thickness, 4 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
internally vented
Brake Disc Thickness [mm] :
23
Number of Holes :
4
Height [mm] :
44
Centering Diameter [mm] :
64
Outer Diameter [mm] :
278
Machining :
High-carbon
Surface :
Coated
Minimum thickness [mm] :
21
- Vendor BREMBO
- SKU 09.D103.11
- FORD : 2272661 K1BC1125AB
- BLUE PRINT : ADF124338
- DELPHI : BG4569C
- FEBI BILSTEIN : 105848
- MINTEX : MDC2864C
- TEXTAR : 92303203
