Brembo 09.D241.23 Brake Disc - 1
Brembo 09.D241.23 Brake Disc - 2
Brembo 09.D241.23 Brake Disc - 1
Brembo 09.D241.23 Brake Disc - 2
BREMBO

Brembo 09.D241.23 Brake Disc

SKU: 09.D241.23
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£159.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
DISCOVERY SPORT (L550)
Description Cylinder Capacity Horse Power Year
2.0 D 4x4 1999 CCM 150 HP From 12/2014
2.2 D 4x4 2179 CCM 150 HP From 09/2014
2.2 D 4x4 2179 CCM 190 HP From 09/2014
2.0 4x4 1999 CCM 241 HP From 11/2014
2.0 D 4x4 1999 CCM 180 HP From 06/2015
2.0 D 1999 CCM 150 HP From 08/2015
2.0 4x4 1997 CCM 290 HP From 08/2017
2.0 D 4x4 1999 CCM 241 HP From 08/2017
2.0 Si4 FLEX 4x4 1997 CCM 241 HP From 12/2018
2.0 D150 MHEV 4x4 1999 CCM 150 HP From 05/2019
2.0 D180 MHEV 4x4 1999 CCM 179 HP From 05/2019
2.0 D240 MHEV 4x4 1999 CCM 241 HP From 05/2019
2.0 P200 MHEV 4x4 1997 CCM 200 HP From 05/2019
2.0 P250 MHEV 4x4 1997 CCM 250 HP From 05/2019
2.0 P250 4x4 1997 CCM 249 HP From 05/2019
RANGE ROVER EVOQUE Convertible (L538)
Description Cylinder Capacity Horse Power Year
2.0 4x4 1999 CCM 241 HP 11/2015 - 12/2019
RANGE ROVER EVOQUE (L551)
Description Cylinder Capacity Horse Power Year
2.0 D150 MHEV 4x4 1999 CCM 150 HP From 12/2018
2.0 D180 MHEV 4x4 1999 CCM 180 HP From 12/2018
2.0 D240 MHEV 4x4 1999 CCM 241 HP From 12/2018
2.0 P200 MHEV 4x4 1997 CCM 200 HP From 12/2018
2.0 P250 MHEV 4x4 1997 CCM 249 HP From 12/2018
2.0 P300 MHEV 4x4 1997 CCM 300 HP From 12/2018
2.0 D150 4x4 1999 CCM 150 HP From 12/2018
2.0 D180 4x4 1999 CCM 180 HP From 12/2018
2.0 P200 4x4 1997 CCM 200 HP From 12/2018
2.0 P250 4x4 1997 CCM 250 HP From 12/2018
2.0 D150 1999 CCM 150 HP From 12/2018
1.5 P300e Hybrid 4x4 1498 CCM 309 HP From 02/2020
2.0 D165 MHEV 4x4 1997 CCM 163 HP From 07/2020
2.0 D200 MHEV 4x4 1997 CCM 204 HP From 07/2020
2.0 D165 1997 CCM 163 HP From 07/2020
LAND ROVER (CHERY)
DISCOVERY SPORT (L550)
Description Cylinder Capacity Horse Power Year
P250 S Mild Hybrid All-wheel Drive 1997 CCM 249 HP From 02/2020

The Brembo 09.D241.23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Steel Brake Disc Hub disc construction, 20 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

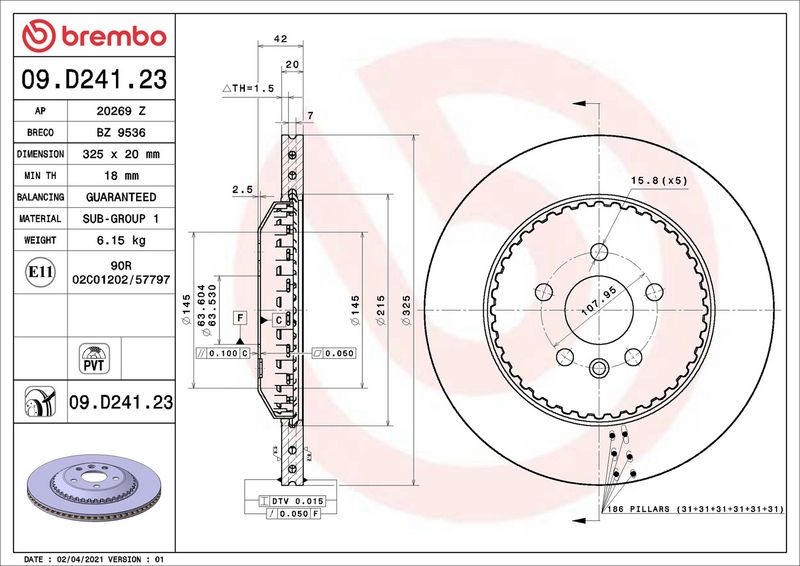

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Steel Brake Disc Hub
Brake Disc Thickness [mm] : 20
Number of Holes : 5
Height [mm] : 42
Centering Diameter [mm] : 64
Outer Diameter [mm] : 325
Surface : Coated
Minimum thickness [mm] : 18
  • Vendor BREMBO
  • SKU 09.D241.23
  • Barcode 8020584315989
  • LAND ROVER : LR114564 LR161919
  • APEC : DSK3503B
  • BLUE PRINT : ADBP430263
  • BORG & BECK : BBD6370
  • DELPHI : BG9561BC
  • FEBI BILSTEIN : 199172
