BREMBO

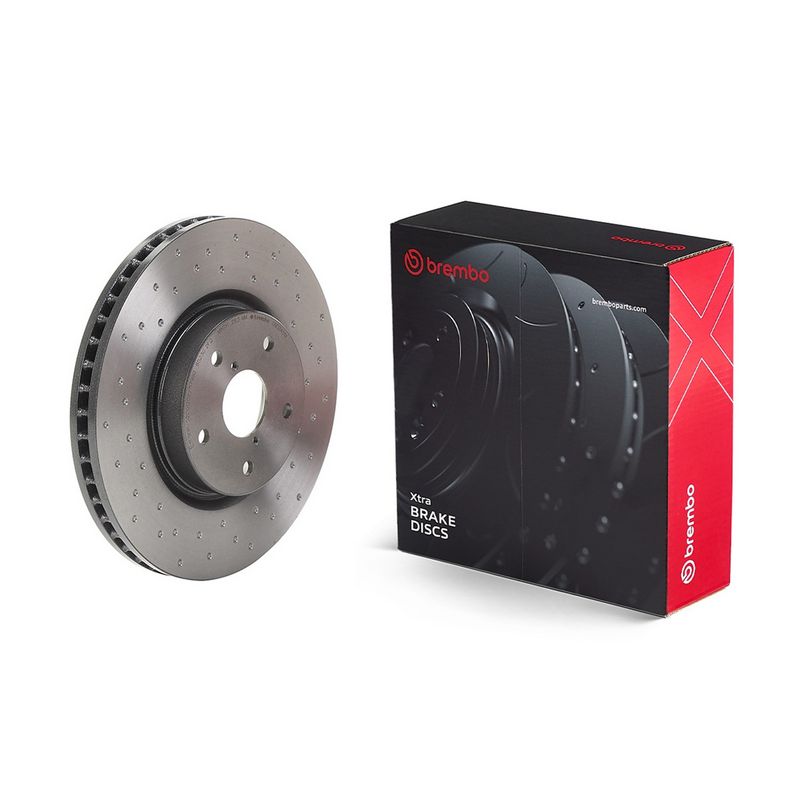

Brembo 09.D245.1X Brake Disc

SKU: 09.D245.1X
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£146.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU
LEGACY VI (BN)
Description Cylinder Capacity Horse Power Year
3.6 i AWD (BNF) 3630 CCM 260 HP From 01/2015
LEVORG
Description Cylinder Capacity Horse Power Year
1.6 AWD (VM4) 1599 CCM 170 HP From 09/2015
OUTBACK (BS)
Description Cylinder Capacity Horse Power Year
2.5 AWD (BS9) 2498 CCM 175 HP 03/2015 - 12/2019
3.6 AWD (BSF) 3630 CCM 260 HP From 10/2014
2.0 D AWD (BSD) 1998 CCM 150 HP From 03/2015
WRX Saloon (GJ)
Description Cylinder Capacity Horse Power Year
2.0 AWD (GK6, GK8) 1998 CCM 268 HP From 09/2013

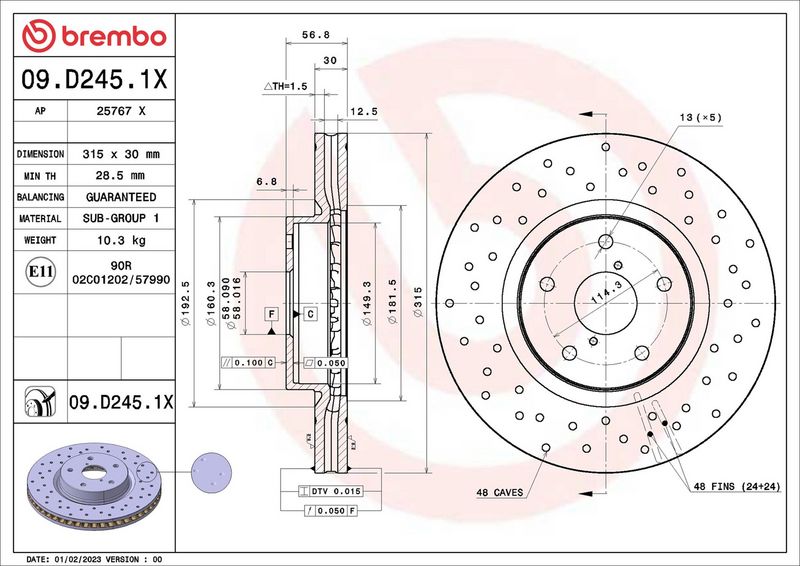

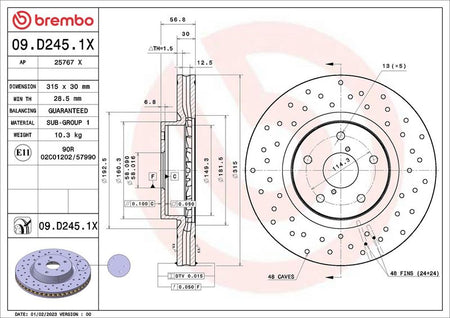

The Brembo 09.D245.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 58 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Height [mm] : 56.8
Centering Diameter [mm] : 58
Outer Diameter [mm] : 315
Surface : Coated
Minimum thickness [mm] : 28.5
  • Vendor BREMBO
  • SKU 09.D245.1X
  • Barcode 8020584322949
  • SUBARU : 26300AL010 26300AL04A
  • BLUE PRINT : ADS74336
  • BOSCH : 0 986 479 D63
  • FEBI BILSTEIN : 170766
