BREMBO

Brembo 09.D247.11 Brake Disc

SKU: 09.D247.11
Your selected vehicle
Out of stock
Out of Stock
£72.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
BALENO (FW, EW)
Description Cylinder Capacity Horse Power Year
1.0 (A1K310) 998 CCM 111 HP From 02/2016
1.2 (A1K412) 1242 CCM 90 HP From 02/2016
1.2 Hybrid (A1K412) 1242 CCM 90 HP From 02/2016
SWIFT V (AZ)
Description Cylinder Capacity Horse Power Year
1.0 (A2L310) 998 CCM 111 HP From 04/2017
1.0 SHVS (A2L310) 998 CCM 111 HP From 04/2017
1.2 (A2L412, ZC83S) 1242 CCM 90 HP From 04/2017
1.2 SHVS (A2L412) 1242 CCM 90 HP From 04/2017
1.2 SHVS AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 Hybrid (Mild Hybrid) (A2L412) 1197 CCM 83 HP From 06/2020
1.2 Hybrid (Mild Hybrid) AllGrip (A2L412) 1197 CCM 83 HP From 06/2020

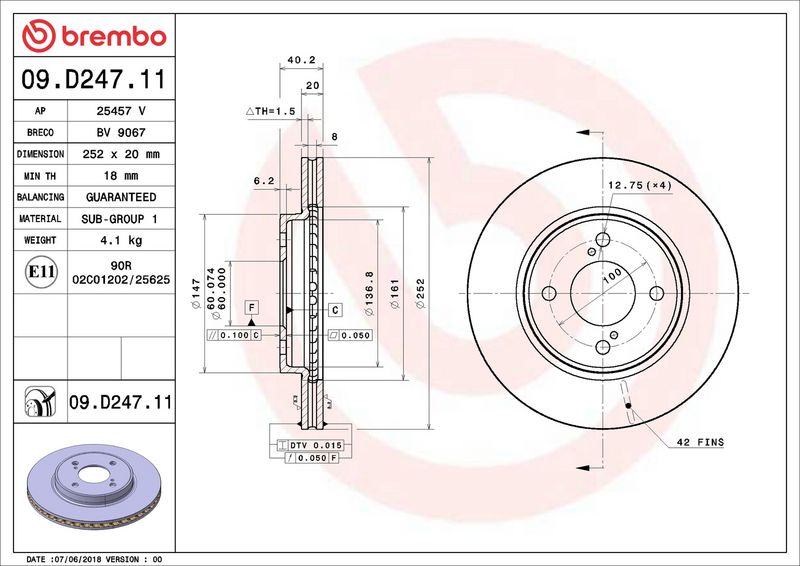

The Brembo 09.D247.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 4 mounting holes, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 20
Number of Holes : 4
Height [mm] : 40
Centering Diameter [mm] : 60
Outer Diameter [mm] : 252
Surface : Coated
Minimum thickness [mm] : 18
  • Vendor BREMBO
  • SKU 09.D247.11
  • Barcode 8020584234631
  • SUZUKI : 5531152R50 55311M69P10
  • APEC : DSK3378
  • APEC : SDK6944
  • BLUE PRINT : ADK84349
  • BLUE PRINT : ADK84350
  • BORG & BECK : BBD5520
  • BOSCH : 0 986 479 F37
  • DELPHI : BG4971C
  • Fahren : FBD6944
  • FEBI BILSTEIN : 170724
  • FEBI BILSTEIN : 170725
  • FTE : 9082813
  • HELLA : 8DD 355 132-051
  • MEYLE : 33-15 521 0022/PD
  • MINTEX : MDC2869C
  • NAPA : NBD5158
  • National : NBD2033
  • TEXTAR : 92303703
  • TRW : DF6738
