Brembo 09.D414.11 Brake Disc - 1
Brembo 09.D414.11 Brake Disc - 2
Brembo 09.D414.11 Brake Disc - 1
Brembo 09.D414.11 Brake Disc - 2
BREMBO

Brembo 09.D414.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.D414.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£99.05 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SSANGYONG
TIVOLI
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 128 HP From 04/2015
1.6 All-wheel Drive 1597 CCM 128 HP From 03/2015
1.6 XDi 160 1597 CCM 116 HP From 04/2015
1.6 XDi 160 All-wheel Drive 1597 CCM 116 HP From 04/2015
1.6 XDi 160 1597 CCM 113 HP From 04/2015
1.6 CNG 1597 CCM 128 HP From 07/2018
1.5 1497 CCM 163 HP From 06/2019
1.5 All-wheel Drive 1497 CCM 163 HP From 06/2019
1.6 XDi 160 1597 CCM 136 HP From 06/2019
1.6 XDi 160 All-wheel Drive 1597 CCM 136 HP From 06/2019
1.2 1197 CCM 128 HP From 03/2020
1.5 1497 CCM 135 HP From 12/2021
TIVOLI GRAND
Description Cylinder Capacity Horse Power Year
1.5 T-GDi 1497 CCM 163 HP From 06/2021
1.2 T-GDi 1197 CCM 128 HP From 06/2021
XLV SUV
Description Cylinder Capacity Horse Power Year
e-XGi 160 1597 CCM 128 HP From 04/2016
e-XGi 160 All-wheel Drive 1597 CCM 128 HP From 04/2016
e-XDi 160 1597 CCM 116 HP From 04/2016
e-XDi 160 All-wheel Drive 1597 CCM 116 HP From 04/2016
e-XGi 160 1597 CCM 126 HP From 05/2016
1.6 CNG 1597 CCM 128 HP From 07/2018

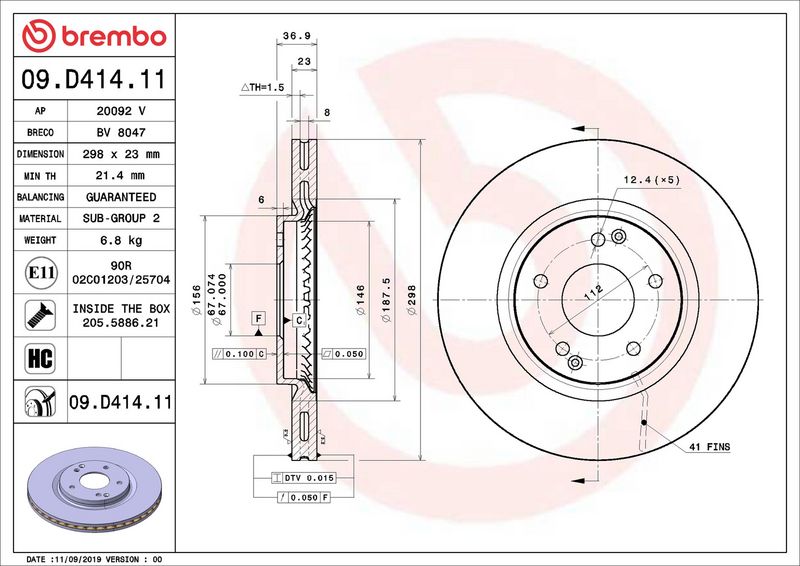

The Brembo 09.D414.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 23 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 23
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 37
Centering Diameter [mm] : 67
Outer Diameter [mm] : 298
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 21.4
  • Vendor BREMBO
  • SKU 09.D414.11
  • Barcode 8020584310809
  • SSANGYONG : 4144135000 4144135001 4144135002
  • APEC : DSK3292
  • APEC : SDK6989
  • BLUE PRINT : ADG043218
  • BORG & BECK : BBD5504
  • BOSCH : 0 986 479 H05
  • DELPHI : BG4970C
  • FEBI BILSTEIN : 170698
  • HELLA : 8DD 355 134-171
  • MINTEX : MDC3006C
  • NAPA : NBD5854
  • National : NBD2109
  • TEXTAR : 92324903
  • TRW : DF6884S
