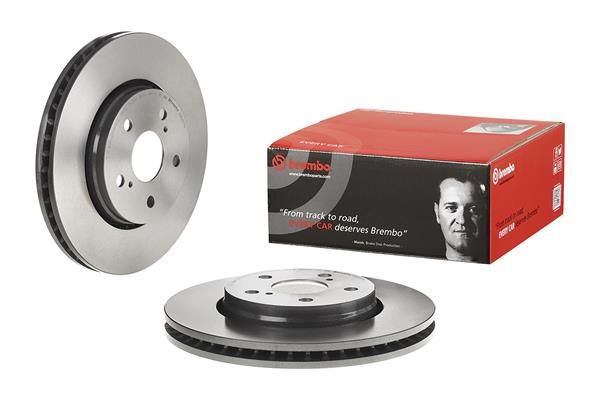

Brembo 09.D417.11 Brake Disc - 1

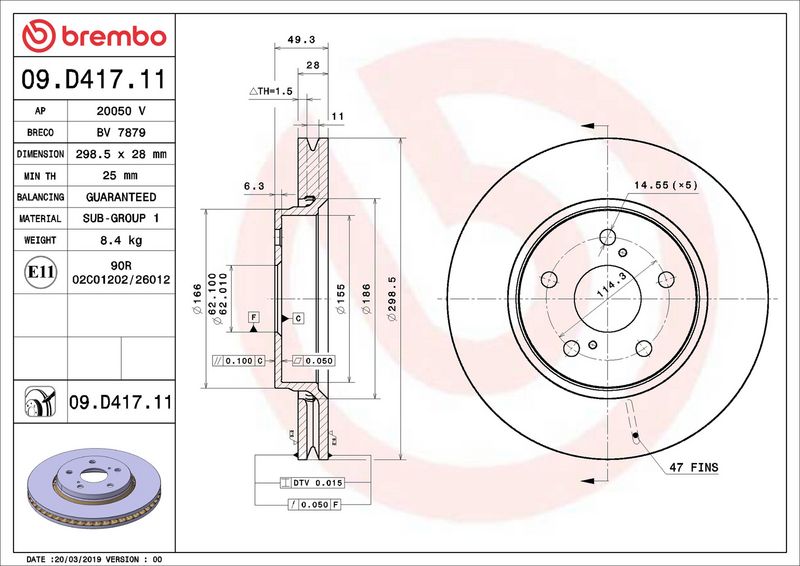

Brembo 09.D417.11 Brake Disc - 2
Brembo 09.D417.11 Brake Disc - 1
Brembo 09.D417.11 Brake Disc - 2
BREMBO

Brembo 09.D417.11 Brake Disc

SKU: 09.D417.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£103.51 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
C-HR (_X1_)
Description Cylinder Capacity Horse Power Year
1.2 (NGX10_, NGX10R) 1197 CCM 116 HP From 10/2016
1.2 4WD (NGX50_, NGX50R) 1197 CCM 116 HP From 10/2016
1.8 Hybrid (ZYX10_, ZYX11_, ZYX10R, ZYX11R) 1798 CCM 122 HP From 10/2016
1.2 4WD (NGX50) 1197 CCM 131 HP From 10/2016
2.0 Hybrid (MAXH10) 1987 CCM 184 HP From 10/2019
C-HR VAN (_X1_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZYX10, ZYX11) 1798 CCM 122 HP From 10/2016
COROLLA Hatchback (_E21_, _EA1_, _EH1_)
Description Cylinder Capacity Horse Power Year
2.0 Hybrid (MZEH12) 1987 CCM 180 HP From 02/2019
2.0 Hybrid (MZEH12) 1987 CCM 184 HP From 05/2021
2.0 Hybrid (MZEH19) 1987 CCM 196 HP From 01/2023
COROLLA Estate (_E21_)
Description Cylinder Capacity Horse Power Year
2.0 Hybrid (MZEH12) 1987 CCM 180 HP From 02/2019
2.0 Hybrid (MZEH12) 1987 CCM 184 HP From 05/2021
2.0 Hybrid (MZEH19) 1987 CCM 196 HP From 01/2023

The Brembo 09.D417.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 62
Outer Diameter [mm] : 299
Surface : Coated
Minimum thickness [mm] : 25
  • Vendor BREMBO
  • SKU 09.D417.11
  • Barcode 8020584238943
  • TOYOTA : 43512F4010
  • BLUE PRINT : ADT343316
  • BORG & BECK : BBD5502
  • BOSCH : 0 986 479 F49
  • DELPHI : BG4952C
  • FTE : 9082638
  • MEYLE : 30-15 521 0134/PD
  • MINTEX : MDC2934C
  • National : NBD1971
  • SKF : VKBD 81391 V1
  • TEXTAR : 92315703
  • TRW : DF6986S
  • VALEO : 672703
