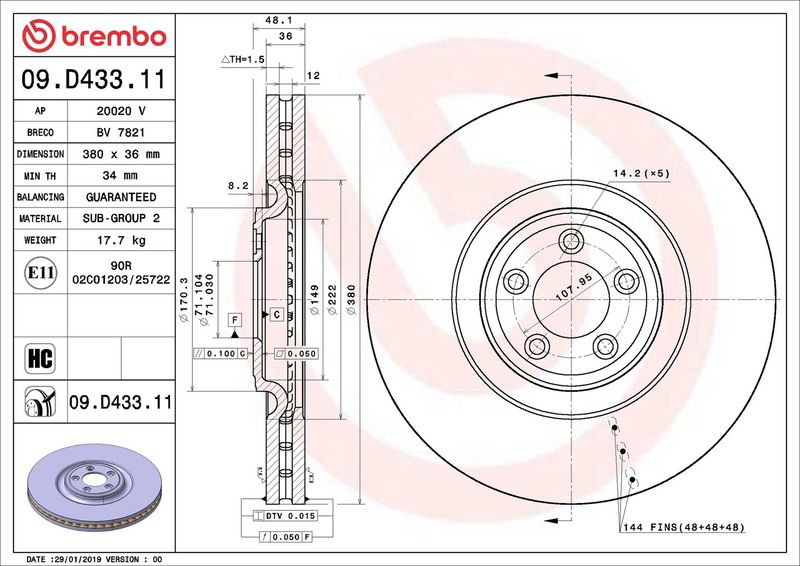

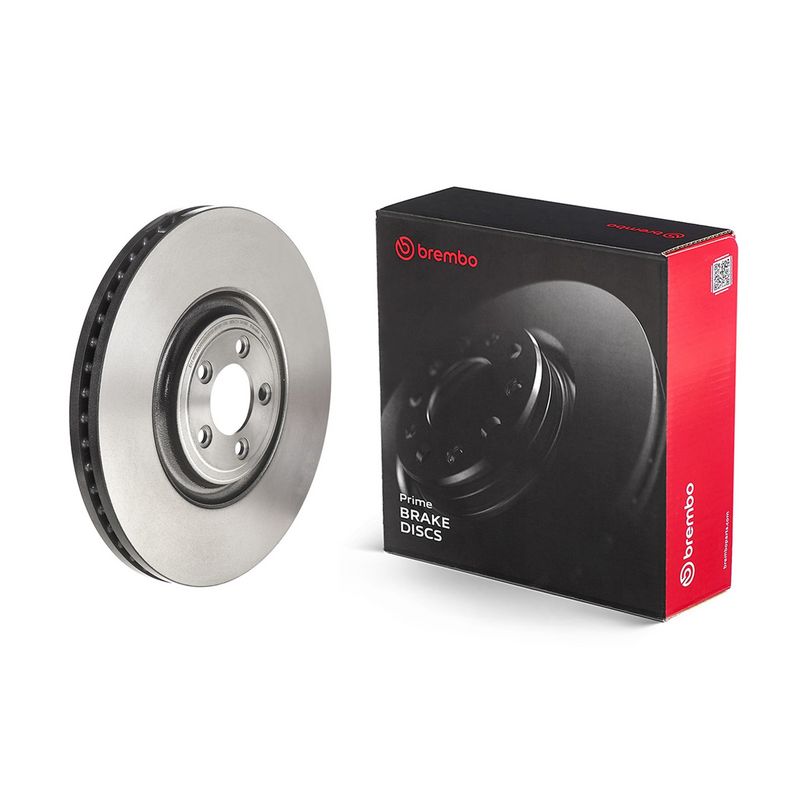

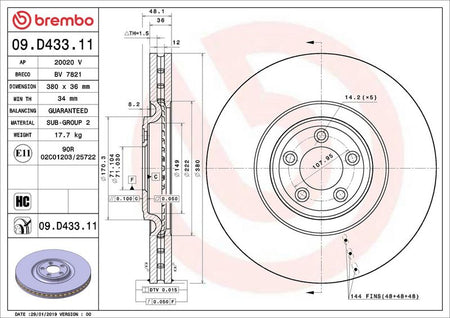

Brembo 09.D433.11 Brake Disc - 1
Brembo 09.D433.11 Brake Disc - 2
Brembo 09.D433.11 Brake Disc - 1
Brembo 09.D433.11 Brake Disc - 2
BREMBO

Brembo 09.D433.11 Brake Disc

SKU: 09.D433.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£142.79 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
F-TYPE Convertible (X152)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 2995 CCM 340 HP From 10/2012
3.0 SCV6 S 2995 CCM 380 HP From 10/2012
5.0 SCV8 S 5000 CCM 495 HP From 10/2012
3.0 SCV6 S AWD 2995 CCM 380 HP From 12/2014
5.0 SCV8 R 5000 CCM 551 HP From 10/2013
5.0 SCV8 R AWD 5000 CCM 551 HP From 12/2014
5.0 SCV8 SVR / SCV8 P575 R AWD 5000 CCM 575 HP From 12/2015
SCV6 400 SPORT 2995 CCM 400 HP From 11/2016
SCV6 400 SPORT AWD 2995 CCM 400 HP From 11/2016
2.0 Ti4 1997 CCM 300 HP From 07/2017
5.0 SCV8 SVR 5000 CCM 575 HP From 05/2015
5.0 SCV8 P450 5000 CCM 450 HP From 12/2019
5.0 SCV8 P450 AWD 5000 CCM 450 HP From 12/2019
F-TYPE Coupe (X152)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 2995 CCM 340 HP From 10/2013
3.0 SCV6 S 2995 CCM 380 HP From 10/2013
5.0 SCV8 R 5000 CCM 551 HP From 10/2013
3.0 SCV6 S AWD 2995 CCM 380 HP From 12/2014
5.0 SCV8 R AWD 5000 CCM 551 HP From 12/2014
5.0 SCV8 SVR / SCV8 P575 R 5000 CCM 575 HP From 12/2015
3.0 SCV6 400 SPORT 2995 CCM 400 HP From 11/2016
3.0 SCV6 400 SPORT AWD 2995 CCM 400 HP From 11/2016
2.0 Ti4 1997 CCM 300 HP From 07/2017
5.0 SCV8 P450 5000 CCM 450 HP From 12/2019
5.0 SCV8 P450 AWD 5000 CCM 450 HP From 12/2019
XF I (X250)
Description Cylinder Capacity Horse Power Year
5.0 Kompressor 5000 CCM 471 HP 01/2009 - 04/2015
5.0 Kompressor 5000 CCM 510 HP 03/2009 - 04/2015
XF SPORTBRAKE (X250)
Description Cylinder Capacity Horse Power Year
5.0 XFR-S 5000 CCM 550 HP 02/2013 - 04/2014
XJ (X351)
Description Cylinder Capacity Horse Power Year
5.0 SCV8 5000 CCM 471 HP 10/2009 - 12/2019
5.0 SCV8 5000 CCM 550 HP 06/2013 - 12/2019
5.0 V8 5000 CCM 385 HP 10/2009 - 12/2019
5.0 SCV8 5000 CCM 510 HP 10/2009 - 12/2019
5.0 SCV8 R575 5000 CCM 575 HP 06/2017 - 12/2019
XK II Coupe (X150)
Description Cylinder Capacity Horse Power Year
5.0 XKR-S 5000 CCM 550 HP 01/2011 - 07/2014
5.0 XKR 5000 CCM 530 HP 09/2010 - 07/2014
5.0 XKR 5000 CCM 510 HP 01/2009 - 07/2014
XK II Convertible (X150)
Description Cylinder Capacity Horse Power Year
5.0 XKR-S 5000 CCM 550 HP 01/2011 - 07/2014
5.0 XKR 5000 CCM 510 HP 01/2009 - 07/2014

The Brembo 09.D433.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 36 mm brake disc thickness, 5 mounting holes, and 71 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 36
Number of Holes : 5
Height [mm] : 48
Centering Diameter [mm] : 71
Outer Diameter [mm] : 380
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 34
  • Vendor BREMBO
  • SKU 09.D433.11
  • Barcode 8020584238905
  • JAGUAR : C2D61076 C2P12622 T2R5940
  • APEC : DSK2817
  • BLUE PRINT : ADJ134316
  • BORG & BECK : BBD5947S
  • BOSCH : 0 986 479 J28
  • DELPHI : BG9102C
  • FEBI BILSTEIN : 44144
  • MEYLE : 18-83 521 0009/PD
  • NAPA : NBD5806
  • National : NBD2078
  • TRW : DF6651S
