BREMBO

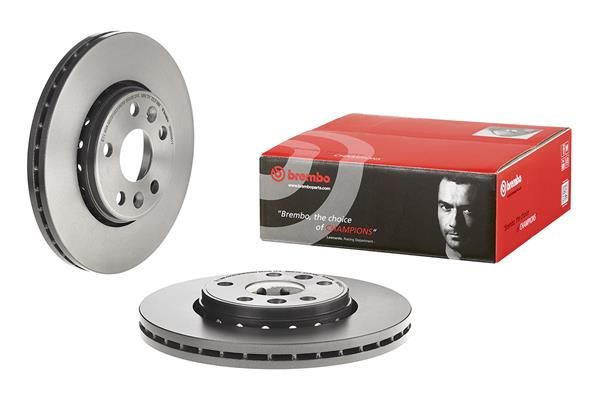

Brembo 09.D509.11 Brake Disc

SKU: 09.D509.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£99.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
CITAN Dualiner (W415)
Description Cylinder Capacity Horse Power Year
109 CDI (415.603, 415.605) 1461 CCM 90 HP 11/2012 - 08/2021
CITAN Traveliner (W415)
Description Cylinder Capacity Horse Power Year
108 CDI (415.703) 1461 CCM 75 HP 11/2012 - 08/2021
109 CDI (415.703) 1461 CCM 90 HP 11/2012 - 08/2021
CITAN Panel Van (W415)
Description Cylinder Capacity Horse Power Year
108 CDI (415.601, 415.603) 1461 CCM 75 HP 11/2012 - 08/2021
109 CDI (415.601, 415.603, 415.605) 1461 CCM 90 HP 11/2012 - 08/2021
108 CDI (415.603) 1461 CCM 80 HP 05/2019 - 08/2021
109 CDI (415.603, 415.605) 1461 CCM 95 HP 05/2019 - 08/2021
111 CDI (415.603, 415.605) 1461 CCM 116 HP 05/2019 - 08/2021
RENAULT
KANGOO / GRAND KANGOO II (KW0/1_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 110 (KW0C, KW0H) 1461 CCM 110 HP From 09/2010
1.6 (KW00, KW0Y, KW0E, KW0N, KW0P) 1598 CCM 87 HP From 02/2008
1.6 16V (KW03, KW09, KW0D, KW0U, KW0W, KW13) 1598 CCM 106 HP From 02/2008
1.5 dCi 70 (KW0V, KW0A) 1461 CCM 68 HP From 02/2008
1.5 dCi 85 (KW0K, KW0L, KW0B) 1461 CCM 86 HP From 02/2008
1.5 dCi 105 (KW0F) 1461 CCM 103 HP From 02/2008
1.6 16V FLEX (KW01) 1598 CCM 106 HP From 02/2008
1.2 TCe 115 (KW02, KW14) 1197 CCM 115 HP From 07/2013
1.5 dCi (KW0C, KW2C, KW4C) 1461 CCM 106 HP From 02/2008
1.5 dCi 75 (KW07, KW10, KW04) 1461 CCM 75 HP From 11/2012
1.5 dCi 90 (KW05, KW08, KW0G, KW11) 1461 CCM 90 HP From 06/2008
1.5 dCi 110 (KW06, KW12) 1461 CCM 110 HP From 03/2013
1.5 dCi 90 (KW18) 1461 CCM 91 HP From 08/2017
1.6 16V LPG (KW0U) 1598 CCM 106 HP From 12/2008
1.5 dCi 80 (KW15) 1461 CCM 80 HP From 03/2019
KANGOO Express (FW0/1_)
Description Cylinder Capacity Horse Power Year
Z.E. (FW0Z, FW1Z) 60 HP From 10/2011
1.5 dCi 75 (FW07, FW10, FW04) 1461 CCM 75 HP From 09/2010
1.5 dCi 110 (FW0C, FW0H) 1461 CCM 109 HP From 09/2010
1.6 (FW00, FW0E, FW0N, FW0P, FW0Y) 1598 CCM 87 HP From 02/2008
1.6 16V (FW03, FW09, FW0D, FW0U, FW0W, FW13) 1598 CCM 106 HP From 02/2008
1.5 dCi 70 (FW0A, KW0V) 1461 CCM 68 HP From 02/2008
1.5 dCi 85 (FW0K, FW0L, FW0B) 1461 CCM 86 HP From 02/2008
1.5 dCi 105 (FW0F) 1461 CCM 103 HP From 02/2008
1.5 dCi 90 (FW0G, FW05, FW08, FW11) 1461 CCM 90 HP From 06/2009
1.6 16V LPG (FW03, FW09, FW0W) 1598 CCM 106 HP From 02/2008
1.2 TCe 115 (FW02, FW14) 1197 CCM 115 HP From 07/2013
1.5 dCi 110 (FW06, FW12) 1461 CCM 110 HP From 09/2013
1.5 dCi 90 (FW18) 1461 CCM 91 HP From 08/2017
1.5 dCi 80 (FW15) 1461 CCM 80 HP From 10/2019
KANGOO BE BOP (KW0/1_)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 110 HP From 06/2009
1.5 dCi 75 1461 CCM 75 HP From 09/2010
1.6 (KW0D) 1598 CCM 106 HP 02/2009 - 12/2012
1.5 dCi (KW0F) 1461 CCM 103 HP 02/2009 - 12/2012
1.5 dCi (KW0G) 1461 CCM 90 HP 06/2009 - 12/2012

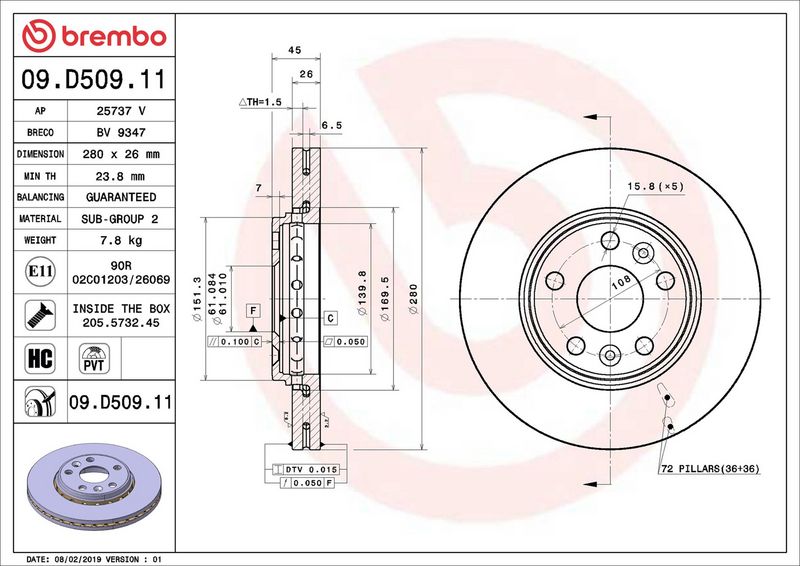

The Brembo 09.D509.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 61 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 45
Centering Diameter [mm] : 61
Outer Diameter [mm] : 280
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23.5
  • Vendor BREMBO
  • SKU 09.D509.11
  • Barcode 8020584234709
  • MERCEDES-BENZ : 4154210412
  • RENAULT : 402068234R 7701209989
  • BLUE PRINT : ADBP430104
  • BORG & BECK : BBD5323
  • BOSCH : 0 986 479 555
  • BOSCH : 0 986 479 576
  • BOSCH : 0 986 479 S66
  • DELPHI : BG5282C
  • FEBI BILSTEIN : 176658
  • FTE : 9072590
  • HELLA : 8DD 355 119-691
  • MINTEX : MDC2547
  • TEXTAR : 92257903
  • VALEO : 672783
