BREMBO

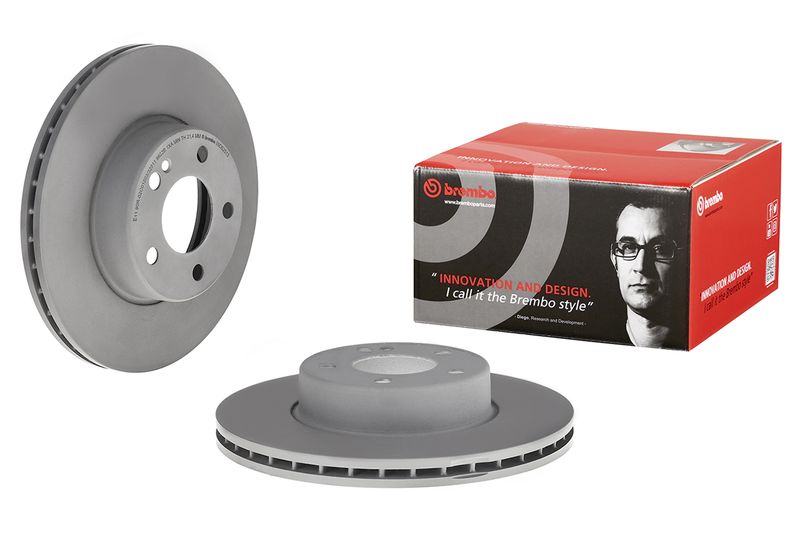

Brembo 09.D525.13 Brake Disc

SKU: 09.D525.13
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£184.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
C-CLASS (W205)
Description Cylinder Capacity Horse Power Year
C 180 (205.040, 205.140) 1595 CCM 156 HP 03/2014 - 03/2021
C 220 BlueTEC / d (205.003) 2143 CCM 163 HP 03/2014 - 05/2016
C 180 BlueTEC / d (205.036) 1598 CCM 116 HP 05/2014 - 05/2018
C 200 BlueTEC / d (205.037) 1598 CCM 136 HP 05/2014 - 05/2018
C-CLASS T-Model (S205)
Description Cylinder Capacity Horse Power Year
C 180 (205.240) 1595 CCM 156 HP 09/2014 - 08/2020
C 180 BlueTEC / d (205.236) 1598 CCM 116 HP 09/2014 - 05/2018
C 200 BlueTEC / d (205.237) 1598 CCM 136 HP 09/2014 - 05/2018
C 160 (205.244) 1595 CCM 129 HP 04/2015 - 11/2019
C-CLASS Coupe (C205)
Description Cylinder Capacity Horse Power Year
C 180 (205.340) 1595 CCM 156 HP 10/2015 - 08/2020
C-CLASS Convertible (A205)
Description Cylinder Capacity Horse Power Year
C 180 (205.440) 1595 CCM 156 HP 06/2016 - 08/2020

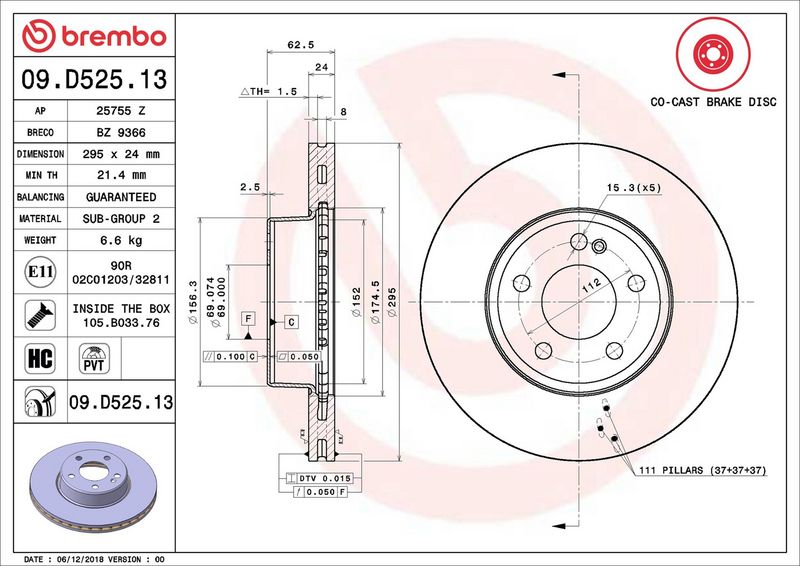

The Brembo 09.D525.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Steel Brake Disc Hub disc construction, 24 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Steel Brake Disc Hub
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 63
Centering Diameter [mm] : 69
Outer Diameter [mm] : 295
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 21.4
  • Vendor BREMBO
  • SKU 09.D525.13
  • Barcode 8020584232477
  • MERCEDES-BENZ : 0004212412 A0004212412
  • APEC : DSK3513B
  • BLUE PRINT : ADBP430291
  • BOSCH : 0 986 479 H45
  • DELPHI : BG9546BC
  • FEBI BILSTEIN : 1003477
  • National : NBD2020
  • SKF : VKBD 81346 V1
  • TEXTAR : 92343925
  • TRW : DF6644S
