BREMBO

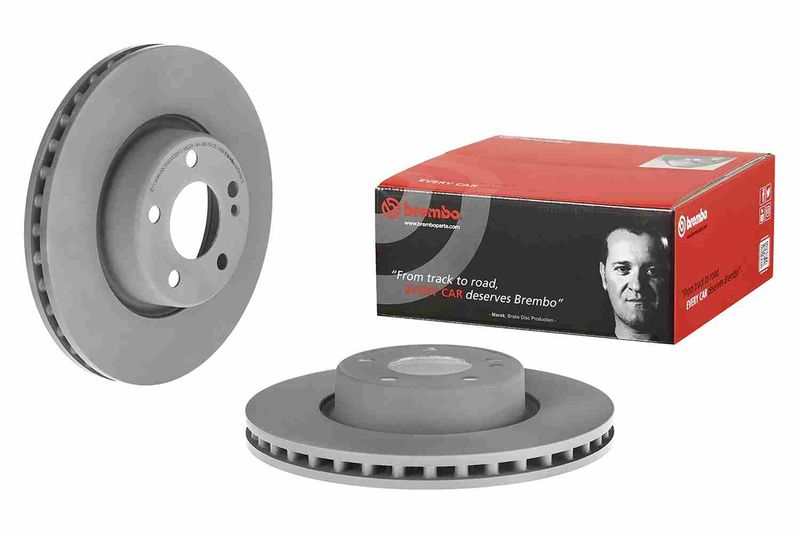

Brembo 09.D526.13 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.D526.13

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£205.42 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
C-CLASS (W205)
Description Cylinder Capacity Horse Power Year
C 200 (205.042) 1991 CCM 184 HP 12/2013 - 08/2018
C 220 BlueTEC / d (205.002, 205.004) 2143 CCM 170 HP 02/2014 - 05/2018
C 180 (205.040, 205.140) 1595 CCM 156 HP 03/2014 - 03/2021
C 220 BlueTEC / d (205.003) 2143 CCM 163 HP 03/2014 - 05/2016
C-CLASS T-Model (S205)
Description Cylinder Capacity Horse Power Year
C 220 BlueTEC / d (205.204) 2143 CCM 170 HP 09/2014 - 05/2018
C 200 (205.242) 1991 CCM 184 HP 09/2014 - 05/2018
C 220 BlueTEC / d (205.204) 2143 CCM 163 HP 09/2014 - 05/2018
C-CLASS Coupe (C205)
Description Cylinder Capacity Horse Power Year
C 220 d (205.304) 2143 CCM 170 HP 10/2015 - 05/2018
C 200 (205.342) 1991 CCM 184 HP 10/2015 - 05/2018
C 220 d (205.304) 2143 CCM 163 HP 10/2015 - 05/2018
C 220 d 4-matic (205.305) 2143 CCM 170 HP 04/2016 - 05/2018
C 200 4-matic (205.343) 1991 CCM 184 HP 04/2016 - 05/2018
C 220 d (205.314) 1950 CCM 194 HP 04/2018 - 04/2023
C-CLASS Convertible (A205)
Description Cylinder Capacity Horse Power Year
C 200 (205.442) 1991 CCM 184 HP 06/2016 - 05/2018
C 200 4-matic (205.443) 1991 CCM 184 HP 06/2016 - 05/2018
C 220 d (205.404) 2143 CCM 170 HP 06/2016 - 05/2018
C 220 d 4-matic (205.405) 2143 CCM 170 HP 06/2016 - 05/2018
C 220 d (205.404) 2143 CCM 163 HP 06/2016 - 05/2018
C 220 d (205.414) 1950 CCM 194 HP 04/2018 - 04/2023
C 200 EQ Boost (205.477) 1497 CCM 184 HP 05/2018 - 04/2023
E-CLASS (W213)
Description Cylinder Capacity Horse Power Year
E 200 (213.042) 1991 CCM 184 HP 01/2016 - 05/2019
E 220 d (213.004) 1950 CCM 194 HP 01/2016 - 10/2023
E 220 d (213.004) 1950 CCM 163 HP 01/2016 - 10/2023
E 200 4-matic (213.043) 1991 CCM 184 HP 07/2016 - 06/2019
E 200 d (213.013) 1950 CCM 150 HP 07/2016 - 06/2020
E-CLASS T-Model (S213)
Description Cylinder Capacity Horse Power Year
E 200 (213.242) 1991 CCM 184 HP 07/2016 - 06/2020
E 220 d (213.204) 1950 CCM 194 HP 07/2016 - 10/2023
E 220 d (213.204) 1950 CCM 163 HP 07/2016 - 10/2023
E 200 d (213.213) 1950 CCM 150 HP 10/2016 - 06/2019
E-CLASS Coupe (C238)
Description Cylinder Capacity Horse Power Year
E 220 d (238.314) 1950 CCM 194 HP From 12/2016
E 200 (238.342) 1991 CCM 184 HP From 12/2016
E 220 d (238.314) 1950 CCM 163 HP From 12/2016
E-CLASS Convertible (A238)
Description Cylinder Capacity Horse Power Year
E 220 d (238.414) 1950 CCM 194 HP From 06/2017
E 200 (238.442) 1991 CCM 184 HP From 06/2017
E 220 d (238.414) 1950 CCM 163 HP From 06/2017

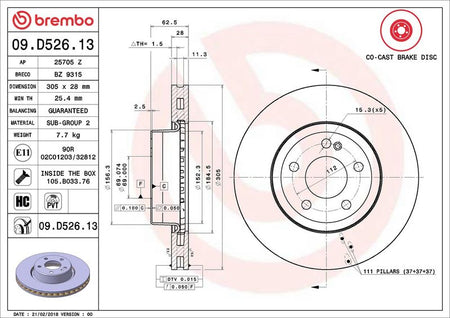

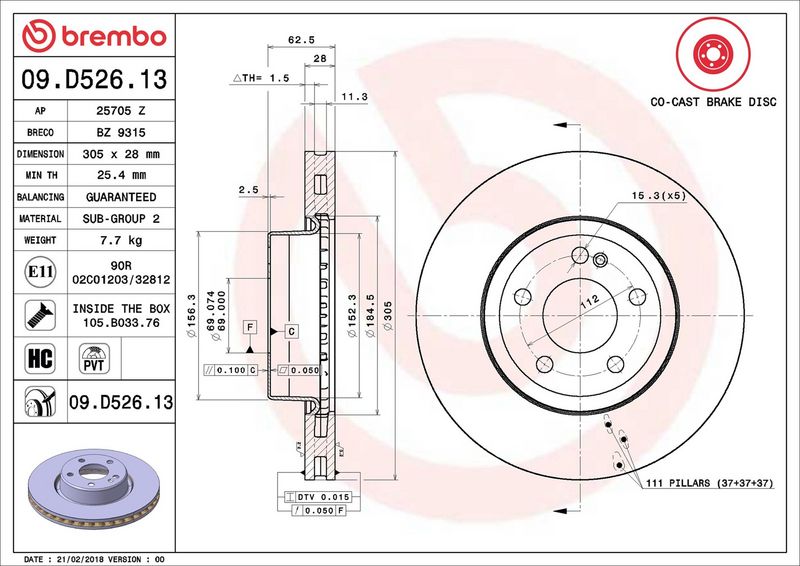

The Brembo 09.D526.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Steel Brake Disc Hub disc construction, 28 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Steel Brake Disc Hub
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 63
Centering Diameter [mm] : 69
Outer Diameter [mm] : 305
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 25.4
Tightening Torque [Nm] : 150
  • Vendor BREMBO
  • SKU 09.D526.13
  • Barcode 8020584226209
  • MERCEDES-BENZ : 0004212512 A0004212512
  • MERCEDES-BENZ (BBDC) : A0004212512
  • APEC : DSK3237B
  • BLUE PRINT : ADBP430091
  • BOSCH : 0 986 479 G41
  • BOSCH : 0 986 479 H46
  • DELPHI : BG9541BC
  • FEBI BILSTEIN : 175190
  • MEYLE : 083 521 1000/PD
  • National : NBD1972
  • SKF : VKBD 81113 V1
  • TEXTAR : 92343625
  • TEXTAR : 92357825
  • TRW : DF6085S
  • TRW : DF6641S
