Brembo 09.D527.13 Brake Disc - 1
Brembo 09.D527.13 Brake Disc - 2
Brembo 09.D527.13 Brake Disc - 1
Brembo 09.D527.13 Brake Disc - 2
BREMBO

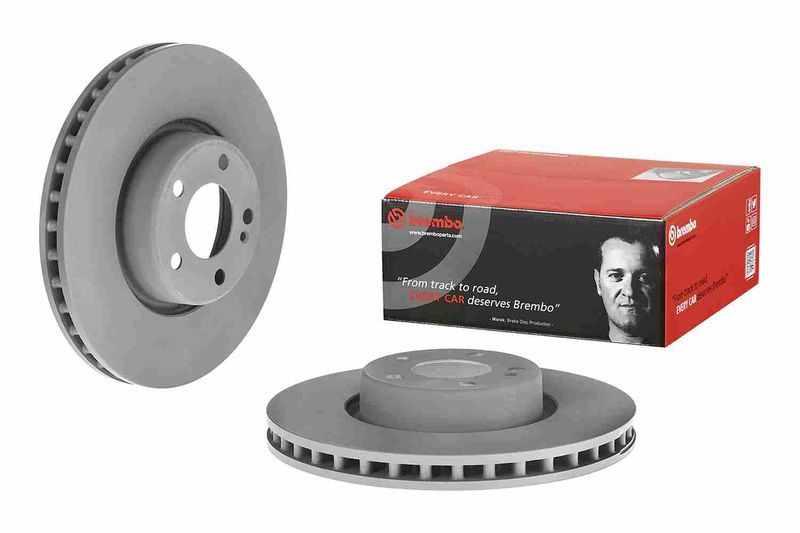

Brembo 09.D527.13 Brake Disc

SKU: 09.D527.13
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£229.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
C-CLASS (W205)
Description Cylinder Capacity Horse Power Year
C 200 (205.042) 1991 CCM 184 HP 12/2013 - 08/2018
C 220 BlueTEC / d (205.002, 205.004) 2143 CCM 170 HP 02/2014 - 05/2018
C 220 BlueTEC / d (205.003) 2143 CCM 163 HP 03/2014 - 05/2016
C 250 BlueTEC / d (205.008, 205.006) 2143 CCM 204 HP 02/2014 - 05/2018
C 250 (205.045) 1991 CCM 211 HP 03/2014 - 05/2018
C 300 BlueTEC Hybrid / h (205.012) 2143 CCM 231 HP 05/2014 - 05/2018
C 350 e (205.047) 1991 CCM 279 HP 02/2015 - 08/2018
C-CLASS T-Model (S205)
Description Cylinder Capacity Horse Power Year
C 220 BlueTEC / d (205.204) 2143 CCM 170 HP 09/2014 - 05/2018
C 250 BlueTEC / d (205.208) 2143 CCM 204 HP 09/2014 - 05/2018
C 200 (205.242) 1991 CCM 184 HP 09/2014 - 05/2018
C 250 (205.245) 1991 CCM 211 HP 09/2014 - 05/2018
C 300 BlueTEC Hybrid / h (205.212) 2143 CCM 204 HP 10/2014 - 05/2018
C 220 BlueTEC / d (205.204) 2143 CCM 163 HP 09/2014 - 05/2018
C-CLASS Coupe (C205)
Description Cylinder Capacity Horse Power Year
C 300 (205.348) 1991 CCM 245 HP 10/2015 - 12/2018

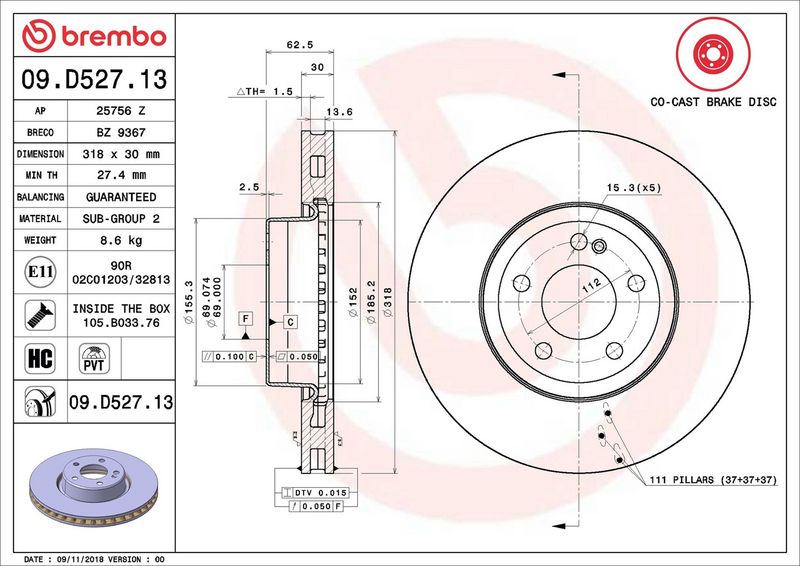

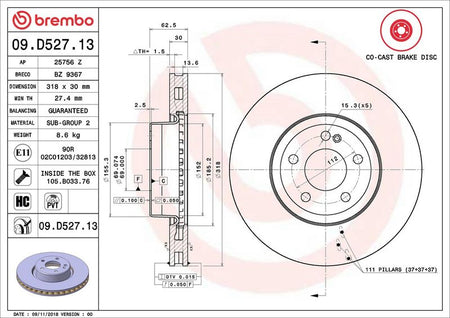

The Brembo 09.D527.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Steel Brake Disc Hub disc construction, 30 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Steel Brake Disc Hub
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 63
Centering Diameter [mm] : 69
Outer Diameter [mm] : 318
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 27.4
  • Vendor BREMBO
  • SKU 09.D527.13
  • Barcode 8020584232484
  • MERCEDES-BENZ : 0004212612 A0004212612
  • MERCEDES-BENZ (BBDC) : A0004212612
  • APEC : DSK3348B
  • BLUE PRINT : ADBP430085
  • BOSCH : 0 986 479 G42
  • BOSCH : 0 986 479 H47
  • FEBI BILSTEIN : 175135
  • MEYLE : 083 521 1011/PD
  • National : NBD2316
  • SKF : VKBD 81374 V1
  • TRW : DF6246S
  • User manual
