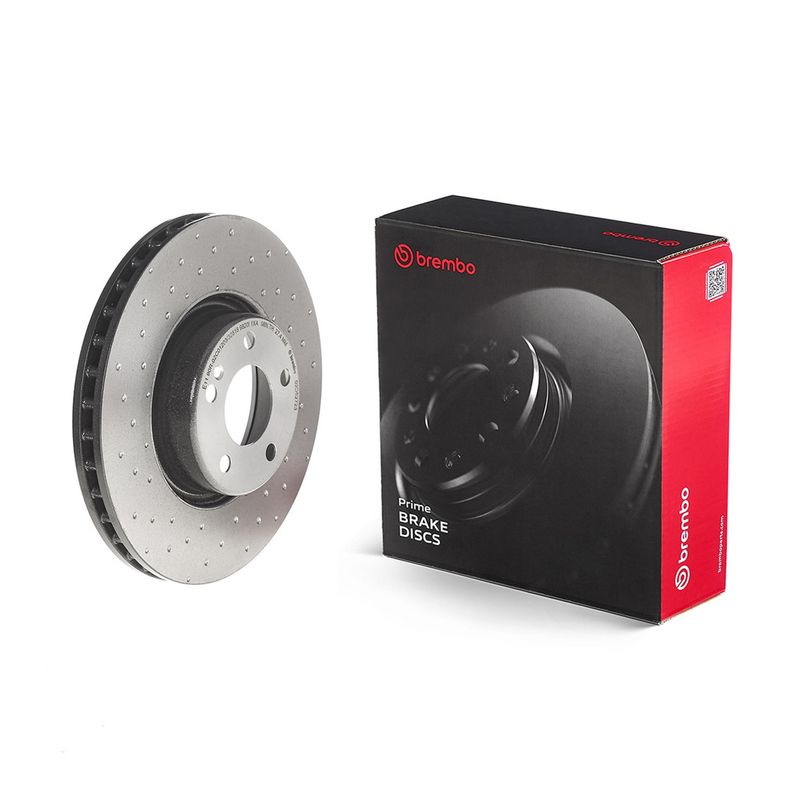

Brembo 09.D527.23 Brake Disc - 1

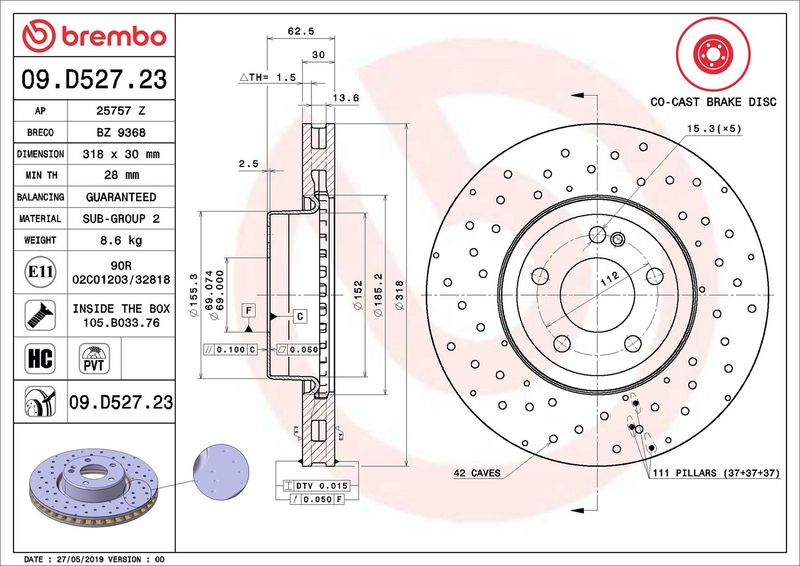

Brembo 09.D527.23 Brake Disc - 2
Brembo 09.D527.23 Brake Disc - 1
Brembo 09.D527.23 Brake Disc - 2
BREMBO

Brembo 09.D527.23 Brake Disc

SKU: 09.D527.23
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£121.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
C-CLASS (W205)
Description Cylinder Capacity Horse Power Year
C 200 (205.042) 1991 CCM 184 HP 12/2013 - 08/2018
C 220 BlueTEC / d (205.002, 205.004) 2143 CCM 170 HP 02/2014 - 05/2018
C 180 (205.040, 205.140) 1595 CCM 156 HP 03/2014 - 03/2021
C 220 BlueTEC / d (205.003) 2143 CCM 163 HP 03/2014 - 05/2016
C 180 BlueTEC / d (205.036) 1598 CCM 116 HP 05/2014 - 05/2018
C 200 BlueTEC / d (205.037) 1598 CCM 136 HP 05/2014 - 05/2018
C-CLASS T-Model (S205)
Description Cylinder Capacity Horse Power Year
C 220 BlueTEC / d (205.204) 2143 CCM 170 HP 09/2014 - 05/2018
C 180 (205.240) 1595 CCM 156 HP 09/2014 - 08/2020
C 200 (205.242) 1991 CCM 184 HP 09/2014 - 05/2018
C 180 BlueTEC / d (205.236) 1598 CCM 116 HP 09/2014 - 05/2018
C 200 BlueTEC / d (205.237) 1598 CCM 136 HP 09/2014 - 05/2018
C 220 BlueTEC / d (205.204) 2143 CCM 163 HP 09/2014 - 05/2018
C 160 (205.244) 1595 CCM 129 HP 04/2015 - 11/2019
C-CLASS Coupe (C205)
Description Cylinder Capacity Horse Power Year
C 220 d (205.304) 2143 CCM 170 HP 10/2015 - 05/2018
C 180 (205.340) 1595 CCM 156 HP 10/2015 - 08/2020
C 200 (205.342) 1991 CCM 184 HP 10/2015 - 05/2018
C 220 d (205.304) 2143 CCM 163 HP 10/2015 - 05/2018
C 220 d 4-matic (205.305) 2143 CCM 170 HP 04/2016 - 05/2018
C 200 4-matic (205.343) 1991 CCM 184 HP 04/2016 - 05/2018
C 220 d (205.314) 1950 CCM 194 HP 04/2018 - 04/2023
C-CLASS Convertible (A205)
Description Cylinder Capacity Horse Power Year
C 180 (205.440) 1595 CCM 156 HP 06/2016 - 08/2020
C 200 (205.442) 1991 CCM 184 HP 06/2016 - 05/2018
C 200 4-matic (205.443) 1991 CCM 184 HP 06/2016 - 05/2018
C 220 d (205.404) 2143 CCM 170 HP 06/2016 - 05/2018
C 220 d 4-matic (205.405) 2143 CCM 170 HP 06/2016 - 05/2018
C 220 d (205.404) 2143 CCM 163 HP 06/2016 - 05/2018
C 220 d (205.414) 1950 CCM 194 HP 04/2018 - 04/2023
C 200 EQ Boost (205.477) 1497 CCM 184 HP 05/2018 - 04/2023

The Brembo 09.D527.23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented, Drilled dimples, and Steel Brake Disc Hub disc construction, 30 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Brake Disc Type : Drilled dimples
Brake Disc Type : Steel Brake Disc Hub
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 63
Centering Diameter [mm] : 69
Outer Diameter [mm] : 318
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28
  • Vendor BREMBO
  • SKU 09.D527.23
  • Barcode 8020584236796
  • MERCEDES-BENZ : 0004212112 A0004212112
  • MERCEDES-BENZ (BBDC) : A0004212112
  • APEC : DSK3800B
  • BLUE PRINT : ADU174392
  • BOSCH : 0 986 479 G34
  • BOSCH : 0 986 479 H37
  • DELPHI : BG9581BC
  • FEBI BILSTEIN : 107223
  • MEYLE : 083 521 1005/PD
  • National : NBD2231
  • TRW : DF6699S
