Brembo 09.D532.13 Brake Disc - 1
Brembo 09.D532.13 Brake Disc - 2
Brembo 09.D532.13 Brake Disc - 1
Brembo 09.D532.13 Brake Disc - 2
BREMBO

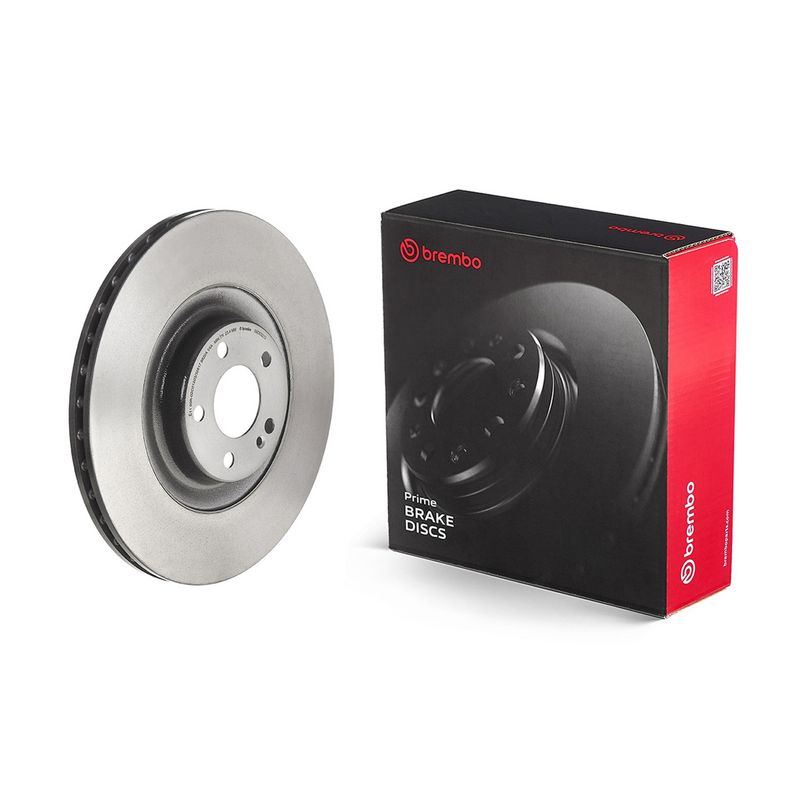

Brembo 09.D532.13 Brake Disc

SKU: 09.D532.13
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£126.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
CLS (C257)
Description Cylinder Capacity Horse Power Year
CLS 450 EQ Boost 4-matic (257.359) 2999 CCM 367 HP From 12/2017
AMG CLS 53 EQ Boost 4-matic+ (257.361) 2999 CCM 435 HP From 05/2018
E-CLASS (W213)
Description Cylinder Capacity Horse Power Year
E 400 4-matic (213.071) 3498 CCM 333 HP 07/2016 - 05/2018
AMG E 43 4-matic (213.064) 2996 CCM 401 HP 07/2016 - 05/2018
E-CLASS T-Model (S213)
Description Cylinder Capacity Horse Power Year
E 400 4-matic (213.271) 3498 CCM 333 HP 10/2016 - 05/2018
AMG E 43 4-matic (213.264) 2996 CCM 401 HP 10/2016 - 05/2018
E-CLASS Coupe (C238)
Description Cylinder Capacity Horse Power Year
E 400 4-matic (238.366) 2996 CCM 333 HP From 12/2016
AMG E 53 EQ Boost 4-matic+ (238.361) 2999 CCM 435 HP From 05/2018
E 450 4-matic (238.368, 238.359) 2996 CCM 367 HP From 08/2018
E-CLASS All-Terrain (S213)
Description Cylinder Capacity Horse Power Year
E 450 EQ Boost (213.260) 2999 CCM 367 HP 08/2020 - 08/2023
E-CLASS Convertible (A238)
Description Cylinder Capacity Horse Power Year
E 400 4-matic (238.466) 2996 CCM 333 HP From 06/2017
AMG E53 EQ Boost 4-matic+ (238.461) 2999 CCM 435 HP From 05/2018
E 450 4-matic (238.468) 2996 CCM 367 HP From 08/2018
EQC (N293)
Description Cylinder Capacity Horse Power Year
EQC 400 4-matic (293.890) 408 HP 05/2019 - 07/2023
GLC (X253)
Description Cylinder Capacity Horse Power Year
250 d 4-matic (253.909) 2143 CCM 204 HP 06/2015 - 04/2019
220 d (253.914) 1950 CCM 194 HP 04/2019 - 06/2022
220 d 4-matic (253.915) 1950 CCM 194 HP 04/2019 - 06/2022

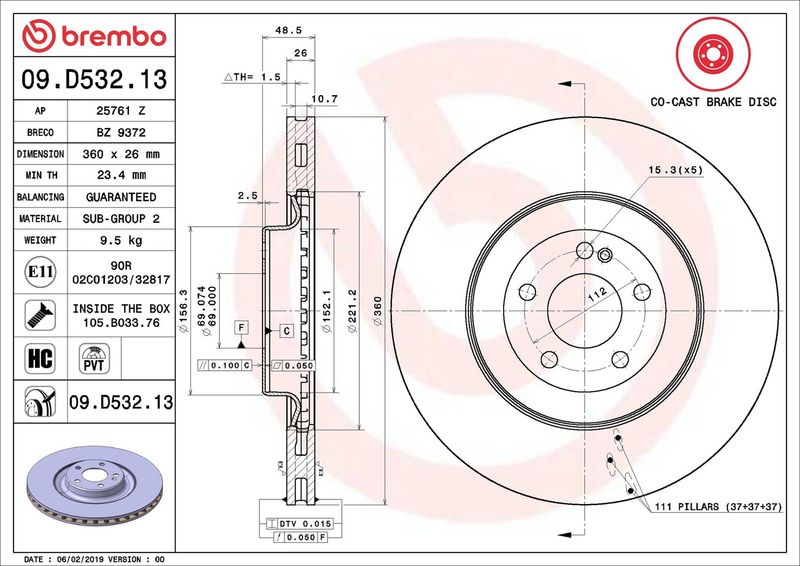

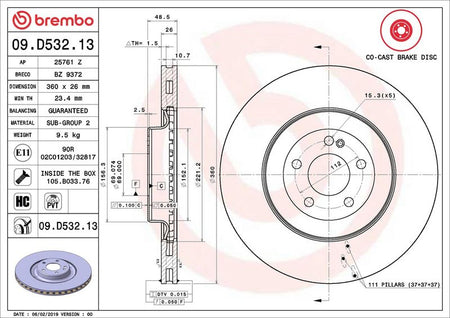

The Brembo 09.D532.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Steel Brake Disc Hub disc construction, 26 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Steel Brake Disc Hub
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 49
Centering Diameter [mm] : 69
Outer Diameter [mm] : 360
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23.4
  • Vendor BREMBO
  • SKU 09.D532.13
  • Barcode 8020584233764
  • MERCEDES-BENZ : 0004231712 A0004231712
  • MERCEDES-BENZ (BBDC) : A0004231712
  • BLUE PRINT : ADBP430090
  • FEBI BILSTEIN : 175186
