Brembo 09.D549.23 Brake Disc - 1
Brembo 09.D549.23 Brake Disc - 2
Brembo 09.D549.23 Brake Disc - 1
Brembo 09.D549.23 Brake Disc - 2
BREMBO

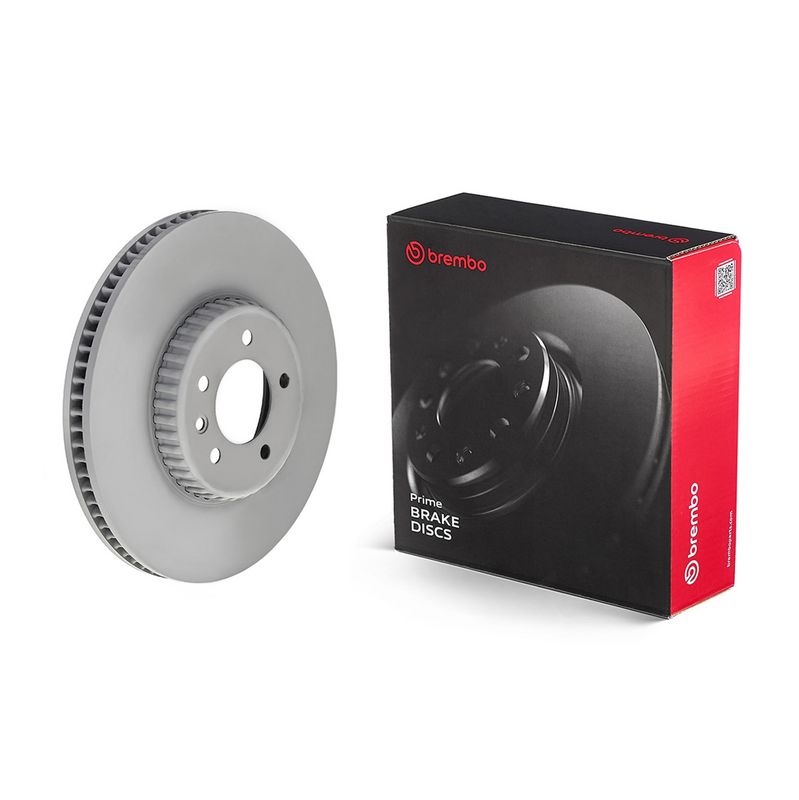

Brembo 09.D549.23 Brake Disc

SKU: 09.D549.23
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£168.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
DEFENDER Station Wagon (L663)
Description Cylinder Capacity Horse Power Year
P300 Si4 4x4 1997 CCM 300 HP From 09/2019
P400 I6 MHEV 4x4 2996 CCM 400 HP From 09/2019
D200 SD4 4x4 1999 CCM 200 HP From 09/2019
D240 SD4 4x4 1999 CCM 241 HP From 09/2019
D250 MHEV 4x4 2997 CCM 249 HP From 09/2020
D300 MHEV 4x4 2997 CCM 300 HP From 09/2020
P400e Hybrid 4x4 1997 CCM 404 HP From 09/2020
D200 MHEV 4x4 2997 CCM 200 HP From 09/2020
P525 4x4 5000 CCM 525 HP From 05/2021
P300 MHEV 4x4 2996 CCM 300 HP From 05/2022
P500 4x4 5000 CCM 500 HP From 04/2023
P300 MHEV 4x4 1997 CCM 300 HP From 07/2023
P425 4x4 5000 CCM 426 HP From 05/2024
D350 MHEV 4x4 2997 CCM 350 HP From 05/2024
P635 OCTA MHEV 4x4 4395 CCM 635 HP From 05/2024
DEFENDER Van (L663)
Description Cylinder Capacity Horse Power Year
2.0 P300 Si4 4x4 1997 CCM 300 HP From 02/2020
3.0 P400 I6 MHEV 4x4 2996 CCM 400 HP From 02/2020
2.0 D200 SD4 4x4 1999 CCM 200 HP From 02/2020
2.0 D240 SD4 4x4 1999 CCM 241 HP From 02/2020
3.0 D250 MHEV 4x4 2997 CCM 249 HP From 09/2020
3.0 D300 MHEV 4x4 2997 CCM 300 HP From 09/2020
3.0 D200 MHEV 4x4 2997 CCM 200 HP From 09/2020
2.0 P400e Hybrid 4x4 1997 CCM 404 HP From 09/2020
3.0 D350 MHEV 4x4 2997 CCM 351 HP From 05/2024

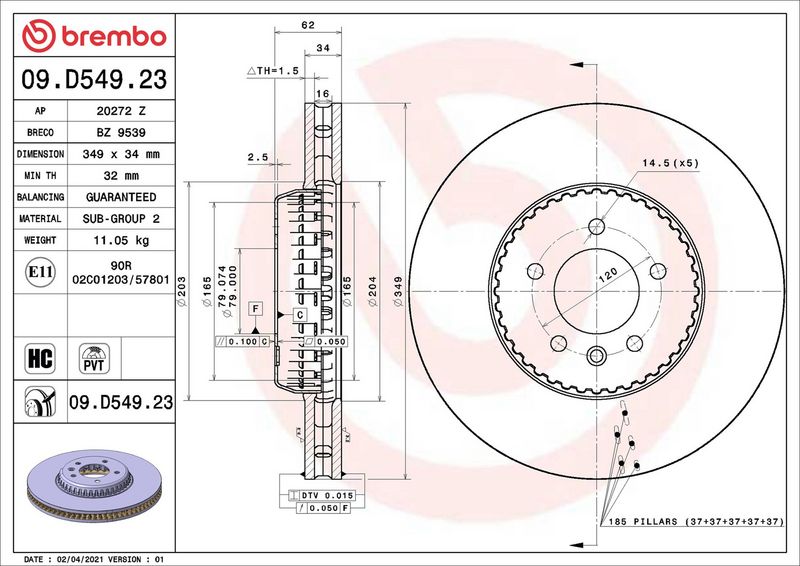

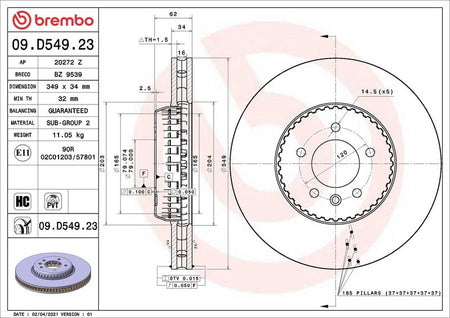

The Brembo 09.D549.23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Steel Brake Disc Hub disc construction, 34 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Steel Brake Disc Hub
Brake Disc Thickness [mm] : 34
Number of Holes : 5
Height [mm] : 62
Centering Diameter [mm] : 79
Outer Diameter [mm] : 349
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 32
  • Vendor BREMBO
  • SKU 09.D549.23
  • Barcode 8020584316016
  • LAND ROVER : LR132808 LR161895 LR187240
