Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.D576.11 Brake Disc - 1
Brembo 09.D576.11 Brake Disc - 2
Brembo 09.D576.11 Brake Disc - 1
Brembo 09.D576.11 Brake Disc - 2
BREMBO

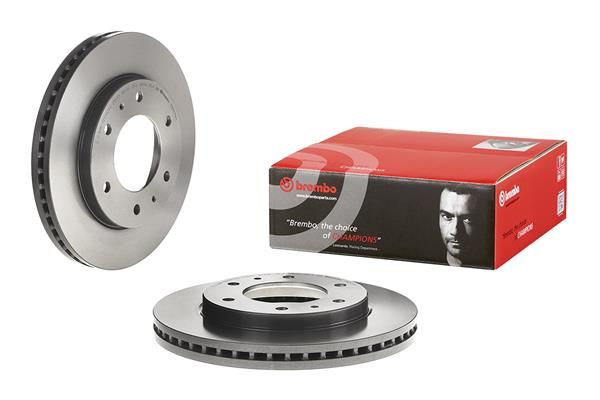

Brembo 09.D576.11 Brake Disc

SKU: 09.D576.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£94.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FIAT
FULLBACK Pickup (502_, 503_)
Description Cylinder Capacity Horse Power Year
2.4 D (KT0T) 2442 CCM 154 HP From 04/2016
2.4 D 4x4 (KT0T) 2442 CCM 154 HP From 04/2016
2.4 D 4x4 (KT0T) 2442 CCM 181 HP From 04/2016
2.4 D 4x4 (KT0T) 2442 CCM 150 HP From 04/2016
MITSUBISHI
L200 / TRITON (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 167 HP 08/2007 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 167 HP 10/2007 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 128 HP 04/2010 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 178 HP 04/2010 - 12/2015
2.5 DI-D 16V 4WD 2477 CCM 133 HP 04/2007 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 178 HP 01/2010 - 12/2015
2.5 TD (KA4T) 2477 CCM 90 HP 08/2011 - 12/2015
2.5 D 2477 CCM 75 HP 08/2011 - 12/2015
2.5 D 4WD 2477 CCM 75 HP 08/2011 - 12/2015
L200 / TRITON Platform/Chassis (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 128 HP 08/2007 - 12/2015
L200 / TRITON (KJ_, KK_, KL_)
Description Cylinder Capacity Horse Power Year
2.4 DI-D 4WD (KL1T) 2442 CCM 181 HP From 11/2014
2.4 DI-D 4WD (KJ0T) 2442 CCM 154 HP From 09/2015
2.4 DI-D (KJ0T) 2442 CCM 154 HP From 09/2015
2.2 DI-D 4WD 2268 CCM 150 HP From 07/2019
2.2 DI-D 2268 CCM 150 HP From 07/2019

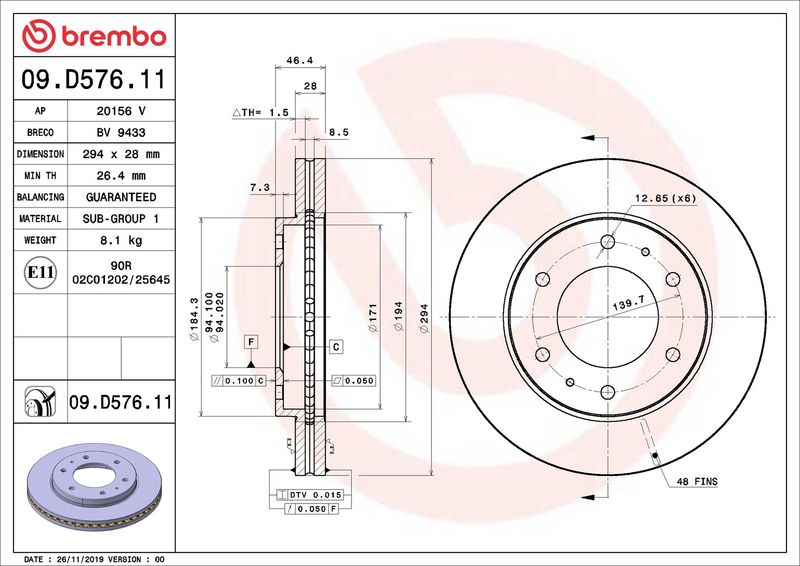

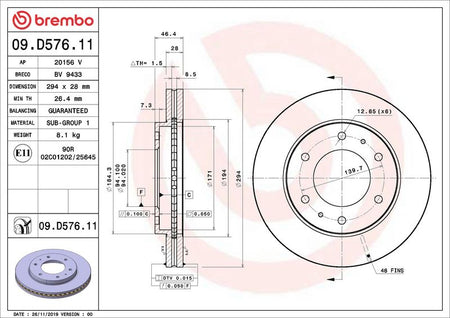

The Brembo 09.D576.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 94 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 6
Height [mm] : 46
Centering Diameter [mm] : 94
Outer Diameter [mm] : 294
Surface : Coated
Minimum thickness [mm] : 26.4
  • Vendor BREMBO
  • SKU 09.D576.11
  • Barcode 8020584311714
  • FIAT : 6000611049 6000622983
  • MITSUBISHI : 4615A147 4615A203
  • BLUE PRINT : ADC443107
  • BLUE PRINT : ADC443133
  • BORG & BECK : BBD4692
  • BOSCH : 0 986 479 704
  • BOSCH : 0 986 479 E93
  • BOSCH : 0 986 479 S63
  • DELPHI : BG4257
  • FEBI BILSTEIN : 170044
  • FEBI BILSTEIN : 28437
  • FTE : 9072563
  • FTE : 9082783
  • HELLA : 8DD 355 115-731
  • MEYLE : 32-15 521 0028
  • MEYLE : 32-15 521 0028/PD
  • MINTEX : MDC1960
  • TEXTAR : 92180203
  • TEXTAR : 92180205
