Brembo 09.D608.11 Brake Disc - 1
Brembo 09.D608.11 Brake Disc - 2
Brembo 09.D608.11 Brake Disc - 1
Brembo 09.D608.11 Brake Disc - 2
BREMBO

Brembo 09.D608.11 Brake Disc

SKU: 09.D608.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£81.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
INSIGNIA B Grand Sport (Z18)
Description Cylinder Capacity Horse Power Year
1.5 (68) 1490 CCM 140 HP From 03/2017
1.5 (68) 1490 CCM 165 HP From 03/2017
1.6 CDTi (68) 1598 CCM 110 HP From 03/2017
1.6 CDTi (68) 1598 CCM 136 HP From 03/2017
2.0 CDTi (68) 1956 CCM 170 HP From 03/2017
2.0 CDTi 4x4 (68) 1956 CCM 170 HP From 03/2017
1.6 Turbo (68) 1598 CCM 200 HP From 06/2018
1.5 CDTi (68) 1496 CCM 122 HP From 02/2020
1.4 Turbo (68) 1342 CCM 145 HP From 04/2020
2.0 (68) 1998 CCM 200 HP From 04/2020
2.0 CDTi 1995 CCM 174 HP From 04/2021
INSIGNIA B Sports Tourer (Z18)
Description Cylinder Capacity Horse Power Year
1.5 (35) 1490 CCM 140 HP From 03/2017
1.5 (35) 1490 CCM 165 HP From 03/2017
1.6 CDTi (35) 1598 CCM 110 HP From 03/2017
1.6 CDTi (35) 1598 CCM 136 HP From 03/2017
2.0 CDTi (35) 1956 CCM 170 HP From 03/2017
2.0 CDTi 4x4 (35) 1956 CCM 170 HP From 03/2017
1.6 Turbo (35) 1598 CCM 200 HP From 06/2018
1.5 CDTi (35) 1496 CCM 122 HP From 02/2020
INSIGNIA B Country Tourer (Z18)
Description Cylinder Capacity Horse Power Year
1.5 (47) 1490 CCM 165 HP From 06/2017
2.0 CDTi (47) 1956 CCM 170 HP From 06/2017
2.0 CDTi 4x4 (47) 1956 CCM 170 HP From 06/2017
1.6 Turbo (47) 1598 CCM 200 HP From 06/2018
VAUXHALL
INSIGNIA Mk II (B) Country Tourer (Z18)
Description Cylinder Capacity Horse Power Year
2.0 D (47) 1956 CCM 170 HP From 03/2017
2.0 D 4x4 (47) 1956 CCM 170 HP From 09/2017
INSIGNIA Mk II (B) Sports Tourer (Z18)
Description Cylinder Capacity Horse Power Year
1.5 (35) 1490 CCM 140 HP From 03/2017
1.5 (35) 1490 CCM 165 HP From 03/2017
2.0 D (35) 1956 CCM 170 HP From 03/2017
1.6 D (35) 1598 CCM 110 HP From 03/2017
1.6 D (35) 1598 CCM 136 HP From 03/2017
1.6 Turbo (35) 1598 CCM 200 HP From 06/2018
INSIGNIA Mk II (B) Hatchback (Z18)
Description Cylinder Capacity Horse Power Year
1.5 (68) 1490 CCM 140 HP From 03/2017
1.5 (68) 1490 CCM 165 HP From 03/2017
1.6 D (68) 1598 CCM 110 HP From 03/2017
1.6 D (68) 1598 CCM 136 HP From 03/2017
2.0 D (68) 1956 CCM 170 HP From 03/2017
1.6 Turbo (68) 1598 CCM 200 HP From 06/2018
1.5 CDTi 1496 CCM 122 HP From 02/2020
2.0 T 1998 CCM 200 HP From 04/2020
2.0 D (68) 1995 CCM 174 HP From 02/2020
2.0 D 4x4 (68) 1995 CCM 174 HP From 02/2020

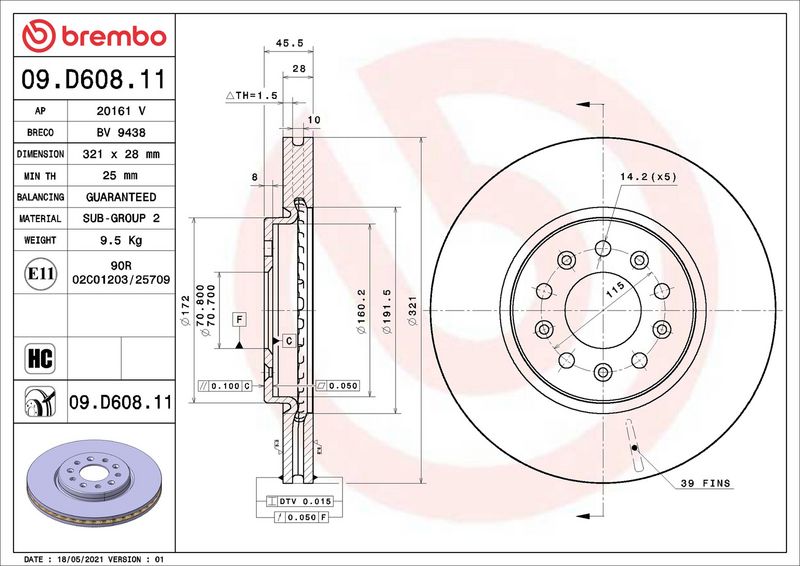

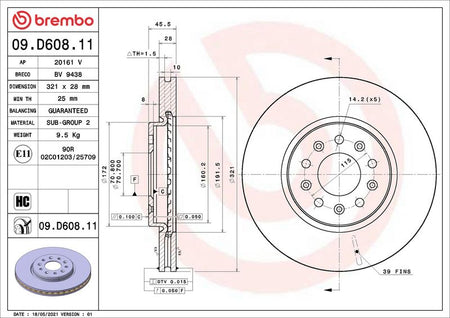

The Brembo 09.D608.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 71 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 46
Centering Diameter [mm] : 71
Outer Diameter [mm] : 321
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 25
  • Vendor BREMBO
  • SKU 09.D608.11
  • Barcode 8020584317686
  • GMC : 13518653
  • OPEL : 13517853 13521005
  • VAUXHALL : 13517853 13521005
  • CHEVROLET : 13514539 13517850 13518653
  • BUICK : 13518653
  • BUICK (SGM) : 13517847 13583718
  • CHEVROLET (SGM) : 13517847
  • CADILLAC (SGM) : 13518653
  • APEC : DSK3413
  • APEC : SDK6971
  • BLUE PRINT : ADW194331
  • BORG & BECK : BBD6192S
  • BOSCH : 0 986 479 F03
  • DELPHI : BG9238C
  • FEBI BILSTEIN : 105851
  • FTE : 9082890
  • HELLA : 8DD 355 132-171
  • MEYLE : 615 521 0035/PD
  • MINTEX : MDC2880C
  • NAPA : NBD5870
  • National : NBD2096
  • SKF : VKBD 81394 V1
  • TEXTAR : 92305505
  • VALEO : 673432
