BREMBO

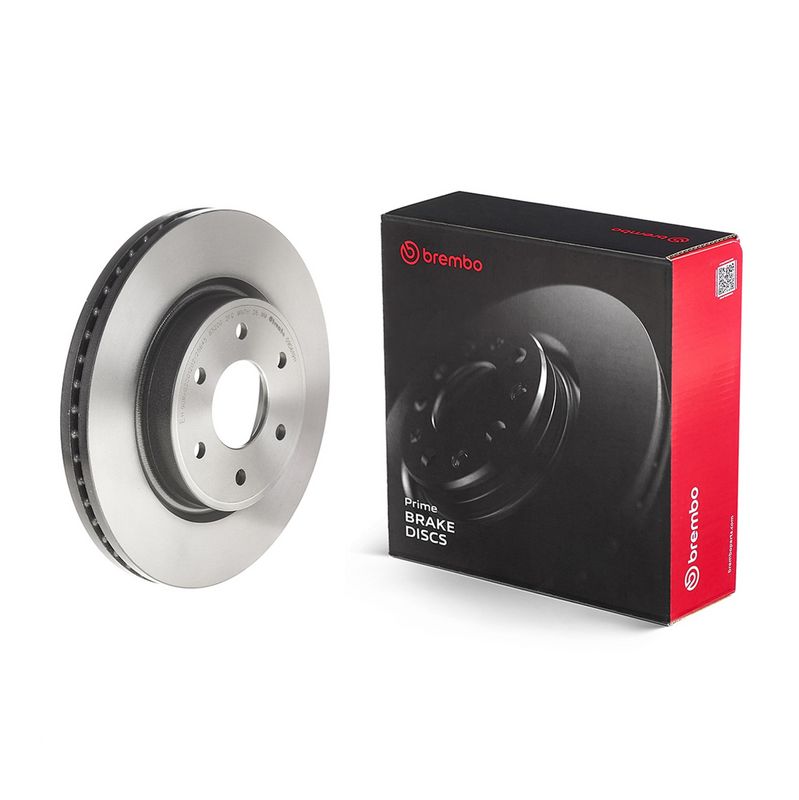

Brembo 09.D619.11 Brake Disc

SKU: 09.D619.11

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£47.68 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN

NAVARA NP300 Pickup (D23, D23T)

Description	Cylinder Capacity	Horse Power	Year
2.5 dCi 4x4	2488 CCM	190 HP	From 07/2014
2.3 dCi (D231)	2298 CCM	163 HP	From 01/2015
2.3 dCi 4x4 (D231)	2298 CCM	163 HP	From 01/2015
2.3 dCi 4x4 (D231, D23T)	2298 CCM	190 HP	From 10/2015
2.3 dCi	2298 CCM	190 HP	From 01/2015

NAVARA NP300 Platform/Chassis (D23)

Description	Cylinder Capacity	Horse Power	Year
2.3 dCi 4x4	2298 CCM	163 HP	From 01/2015

RENAULT

ALASKAN

Description	Cylinder Capacity	Horse Power	Year
2.3 dCi 190 4x4 (U3MD)	2298 CCM	190 HP	From 09/2017
2.3 dCi 163 4x4 (U3MB)	2298 CCM	163 HP	From 09/2017

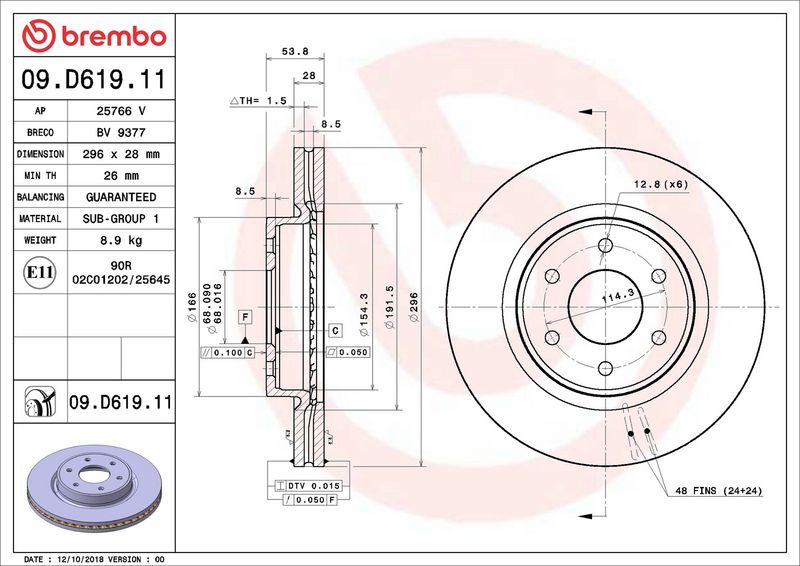

The Brembo 09.D619.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 28

Number of Holes : 6

Height [mm] : 54

Centering Diameter [mm] : 68

Outer Diameter [mm] : 296

Surface : Coated

Minimum thickness [mm] : 26

BLUE PRINT : ADN143172
BOSCH : 0 986 479 E35
DELPHI : BG4941
FEBI BILSTEIN : 170041
FTE : 9082650
HELLA : 8DD 355 126-841
MEYLE : 36-83 521 0046/PD
MINTEX : MDC2828C
SKF : VKBD 81313 V1
TEXTAR : 92285800
TEXTAR : 92285803
TRW : DF7458S

Brembo 09.D619.11 Brake Disc
