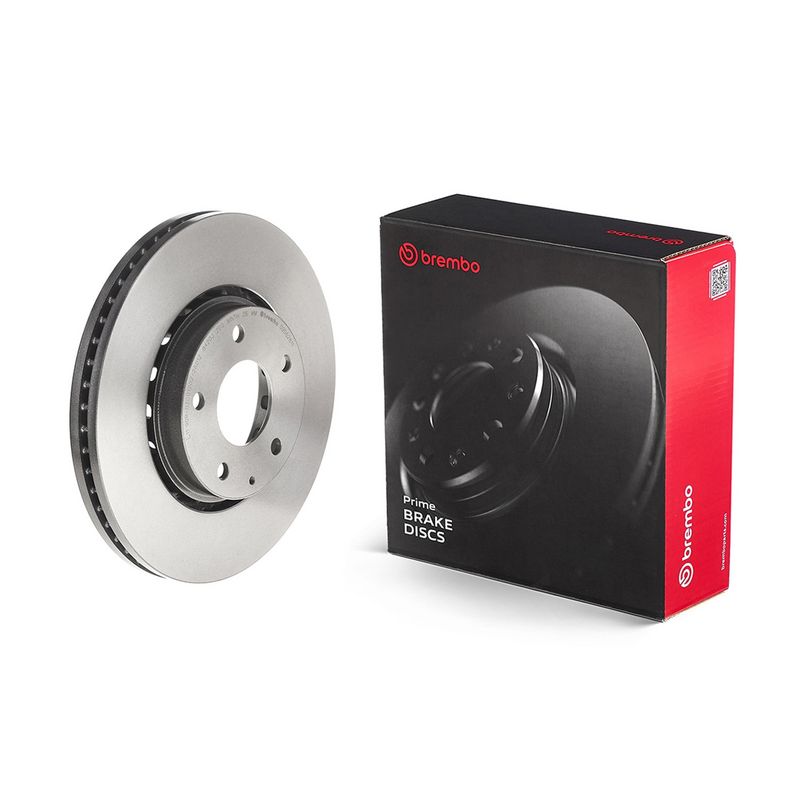

Brembo 09.D628.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.D628.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£86.47 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MAZDA
6 Estate (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.0 (GJEFW) 1998 CCM 146 HP From 01/2013
2.0 (GJEFW) 1998 CCM 165 HP From 01/2013
2.5 2488 CCM 194 HP From 03/2018
6 Saloon (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.0 (GJ2, GL2, GL6) 1998 CCM 146 HP From 01/2013
2.0 (GJEFP) 1998 CCM 165 HP From 01/2013
2.2 D (GJ2FP) 2191 CCM 150 HP 12/2012 - 11/2020
2.5 2488 CCM 194 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 231 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 190 HP From 03/2018
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.0 AWD (KEEAW) 1998 CCM 160 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
2.5 AWD 2488 CCM 192 HP 02/2015 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.5 AWD 2488 CCM 194 HP From 05/2017
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018

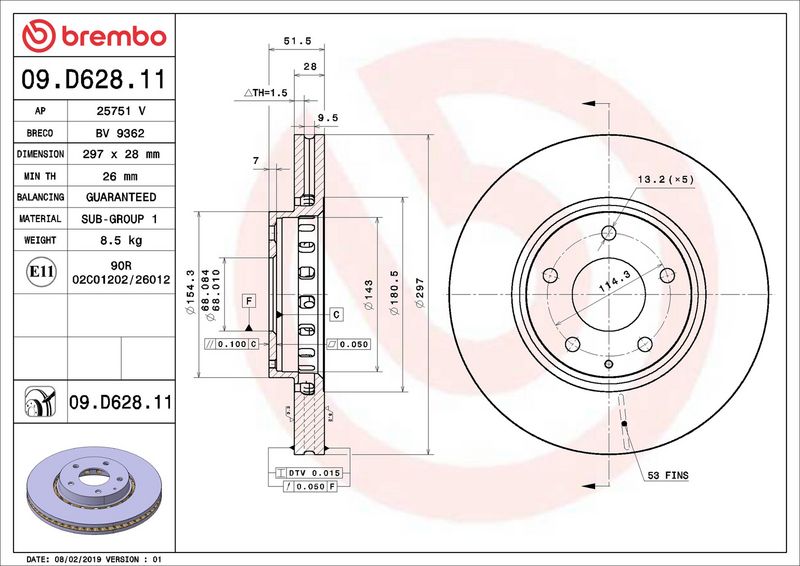

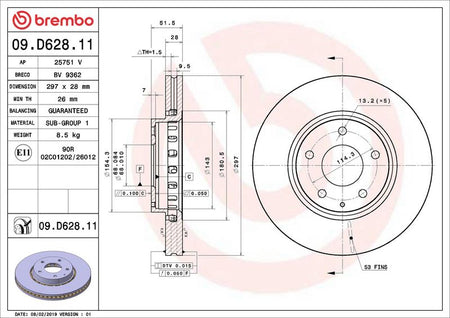

The Brembo 09.D628.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 52
Centering Diameter [mm] : 68
Outer Diameter [mm] : 297
Surface : Coated
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.D628.11
  • Barcode 8020584237359
  • MAZDA : GBFT33251 GBFT33251A KD4533251
  • APEC : DSK3365
  • APEC : SDK6940
  • BORG & BECK : BBD5519
  • BOSCH : 0 986 479 B15
  • DELPHI : BG4562C
  • FTE : 9082631
  • HELLA : 8DD 355 126-981
  • MEYLE : 35-83 521 0044/PD
  • MINTEX : MDC2837C
  • NAPA : NBD5556
  • SKF : VKBD 81352 V1
  • TEXTAR : 92295003
  • VALEO : 673072
