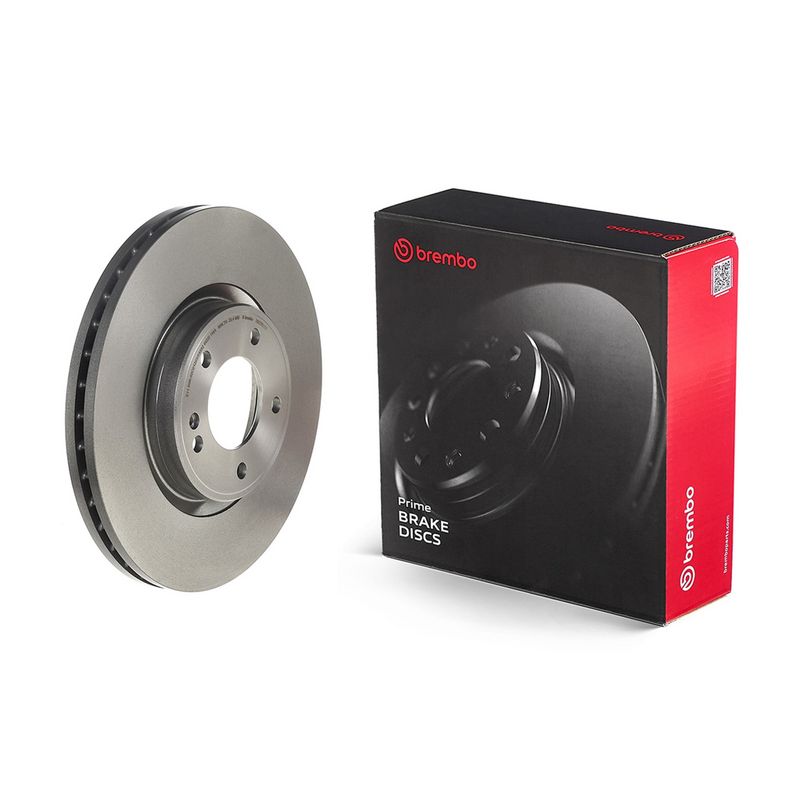

Brembo 09.D761.11 Brake Disc

SKU: 09.D761.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£101.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
G-CLASS (W463)
Description Cylinder Capacity Horse Power Year
G 500 (463.260, 463.261) 3982 CCM 422 HP From 01/2018
G 350 d 4-matic (463.349) 2925 CCM 286 HP 01/2019 - 11/2022
G 400 d 4-matic (463.350) 2925 CCM 330 HP From 07/2019
G-CLASS Closed Off-Road Vehicle (W465)
Description Cylinder Capacity Horse Power Year
G 500 Mild Hybrid 4-matic (465.210) 2999 CCM 449 HP From 04/2024
G 450 D Mild Hybrid 4-matic (465.310) 2989 CCM 367 HP From 04/2024

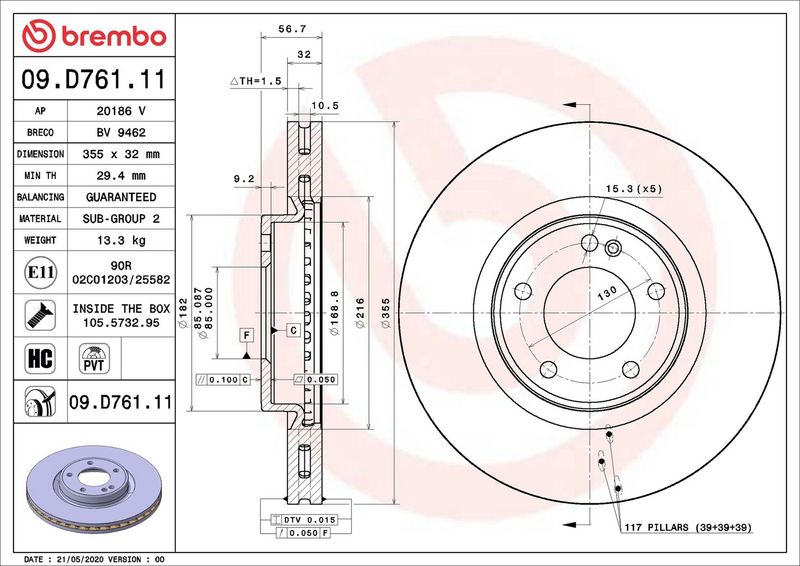

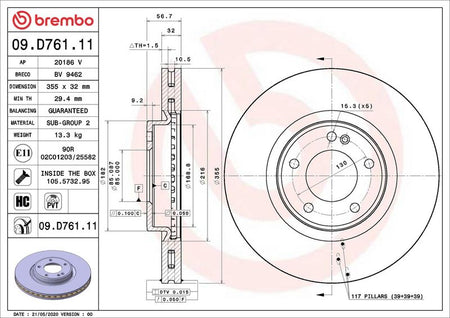

The Brembo 09.D761.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 85 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 56.7
Centering Diameter [mm] : 85
Outer Diameter [mm] : 355
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 29.4
  • Vendor BREMBO
  • SKU 09.D761.11
  • Barcode 8020584313121
  • MERCEDES-BENZ : 4634210000 4634211200 A4634210000 A4634211200
  • BORG & BECK : BBD6355S
  • BOSCH : 0 986 479 J04
  • DELPHI : BG9624C
  • TRW : DF4638S
