Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

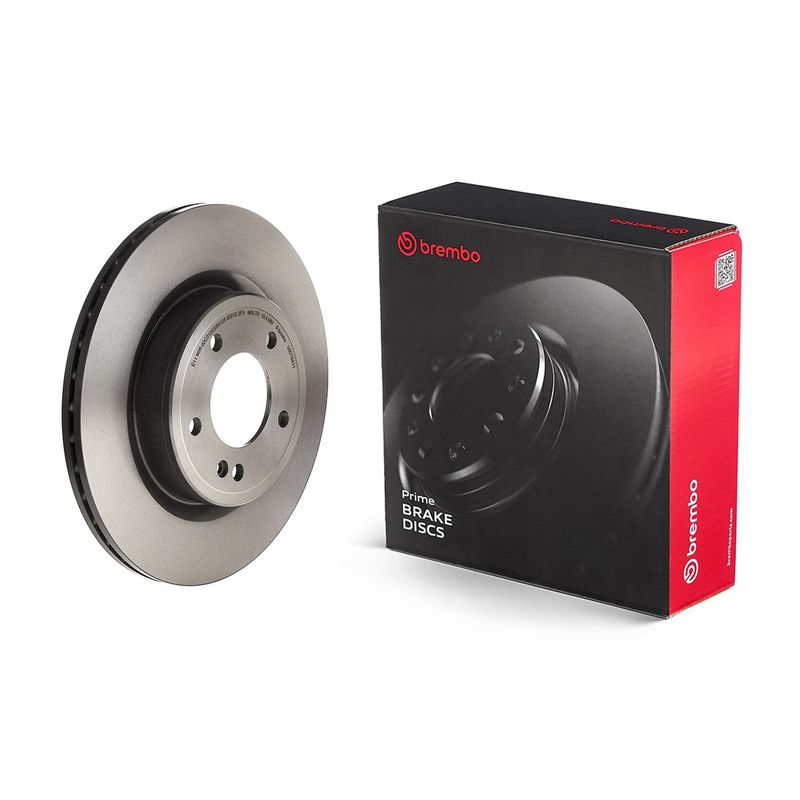

Brembo 09.D764.11 Brake Disc - 1

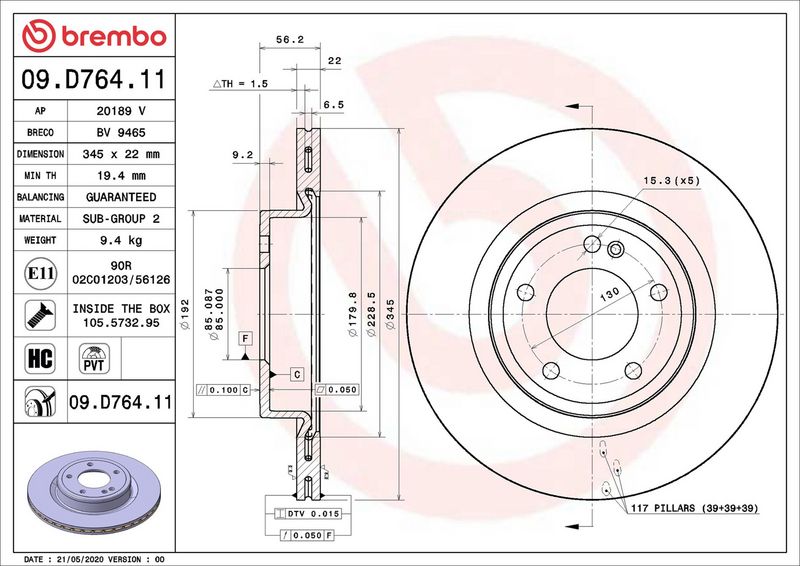

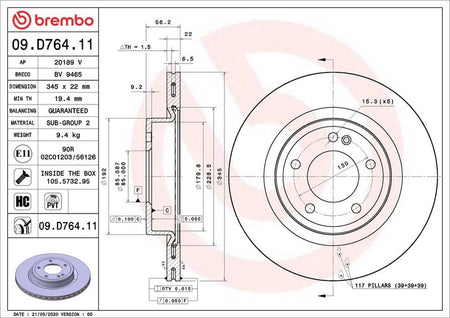

Brembo 09.D764.11 Brake Disc - 2
Brembo 09.D764.11 Brake Disc - 1
Brembo 09.D764.11 Brake Disc - 2
BREMBO

Brembo 09.D764.11 Brake Disc

5.0/5 65 reviews
SKU: 09.D764.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£75.16 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

MERCEDES-BENZ
G-CLASS (W463)
Description Cylinder Capacity Horse Power Year
G 500 (463.260, 463.261) 3982 CCM 422 HP From 01/2018
G 350 d 4-matic (463.349) 2925 CCM 286 HP 01/2019 - 11/2022
G 400 d 4-matic (463.350) 2925 CCM 330 HP From 07/2019
G-CLASS Closed Off-Road Vehicle (W465)
Description Cylinder Capacity Horse Power Year
G 500 Mild Hybrid 4-matic (465.210) 2999 CCM 449 HP From 04/2024
G 450 D Mild Hybrid 4-matic (465.310) 2989 CCM 367 HP From 04/2024

The Brembo 09.D764.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 85 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 56
Centering Diameter [mm] : 85
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 19.4
  • Vendor BREMBO
  • SKU 09.D764.11
  • Barcode 8020584313152
  • MERCEDES-BENZ : 4634230100 A4634230100
  • DELPHI : BG9604C
  • HELLA : 8DD 355 135-171
  • MINTEX : MDC3183C
  • TEXTAR : 92345705
