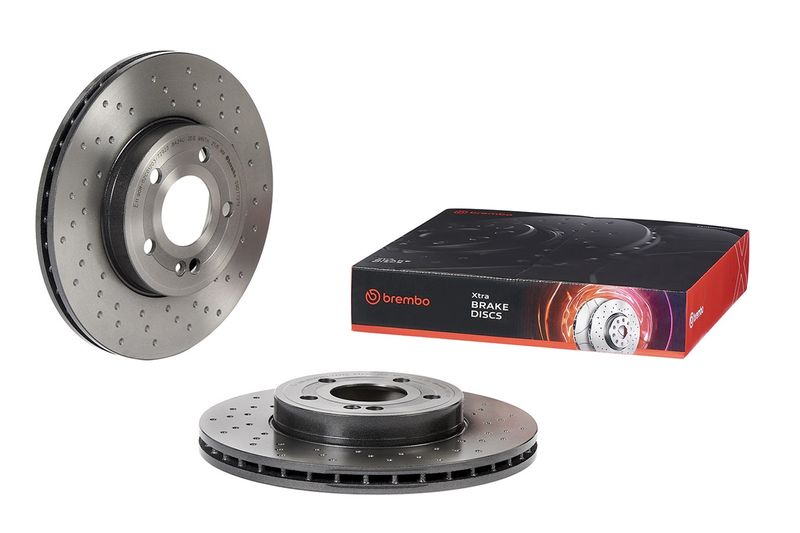

Brembo 09.D772.1X Brake Disc - 1

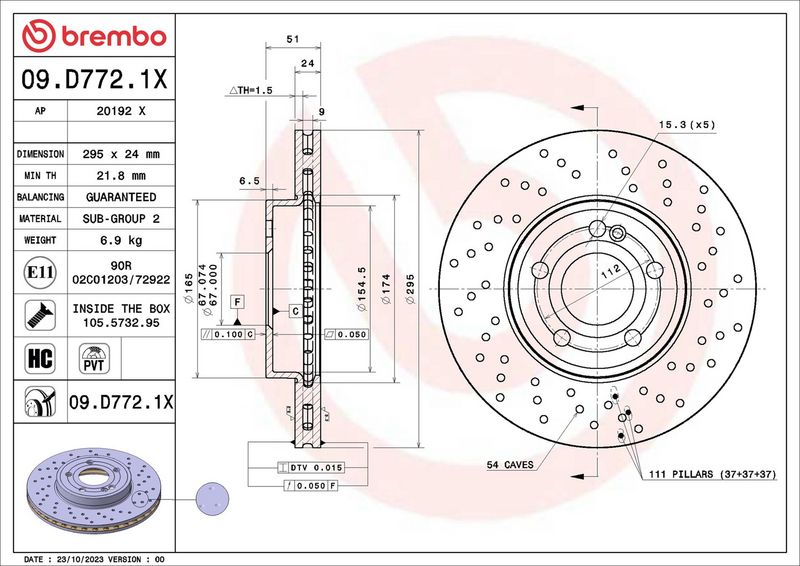

Brembo 09.D772.1X Brake Disc - 2
Brembo 09.D772.1X Brake Disc - 1
Brembo 09.D772.1X Brake Disc - 2
BREMBO

Brembo 09.D772.1X Brake Disc

SKU: 09.D772.1X
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£246.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W177)
Description Cylinder Capacity Horse Power Year
A 180 d (177.003) 1461 CCM 116 HP From 03/2018
A 180 (177.084) 1332 CCM 136 HP From 06/2018
A 160 (177.082) 1332 CCM 109 HP From 06/2018
A 160 d (177.002) 1461 CCM 95 HP From 05/2019
A-CLASS Saloon (V177)
Description Cylinder Capacity Horse Power Year
A 180 d (177.103) 1461 CCM 116 HP From 09/2018
A 180 (177.184) 1332 CCM 136 HP From 04/2019
A 160 d (177.102) 1461 CCM 95 HP From 10/2019
B-CLASS Sports Tourer (W247)
Description Cylinder Capacity Horse Power Year
B 180 (247.084) 1332 CCM 136 HP From 12/2018
B 180 d (247.003) 1461 CCM 116 HP From 12/2018
B 160 (247.082) 1332 CCM 109 HP From 04/2019
B 160 d (247.002) 1461 CCM 95 HP From 05/2019
CLA (C118)
Description Cylinder Capacity Horse Power Year
CLA 180 (118.384) 1332 CCM 136 HP From 03/2019
CLA 180 d (118.303) 1461 CCM 116 HP From 03/2019
CLA Shooting Brake (X118)
Description Cylinder Capacity Horse Power Year
CLA 180 (118.684) 1332 CCM 136 HP From 06/2019

The Brembo 09.D772.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 51
Centering Diameter [mm] : 67
Outer Diameter [mm] : 295
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 21.8
  • Vendor BREMBO
  • SKU 09.D772.1X
  • Barcode 8020584326152
  • MERCEDES-BENZ : 2474210312 247421031207 A2474210312
  • MERCEDES-BENZ (BBDC) : A2474210312
  • BLUE PRINT : ADU1743112
  • BOSCH : 0 986 479 H74
  • FEBI BILSTEIN : 107509
  • FTE : 9082880
  • HELLA : 8DD 355 133-381
  • MINTEX : MDC2980C
  • TEXTAR : 92323505
  • TRW : DF6769
  • VALEO : 673252
