BREMBO

Brembo 09.D773.11 Brake Disc

SKU: 09.D773.11

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£105.51 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

TESLA

MODEL S

Description	Horse Power	Year
85	367 HP	09/2012 - 02/2016
P85	421 HP	11/2013 - 12/2014
60	306 HP	11/2013 - 09/2014
85D AWD	376 HP	10/2014 - 02/2016
60D AWD	376 HP	10/2014 - 04/2015
P85D AWD	700 HP	10/2014 - 02/2016
60	385 HP	From 10/2014
85	385 HP	02/2015 - 02/2016
70D AWD	334 HP	From 04/2015
85D AWD	421 HP	01/2014 - 02/2016
P85D AWD	772 HP	09/2015 - 02/2016
70D AWD	525 HP	From 09/2015
85D AWD	525 HP	10/2014 - 02/2016
85	388 HP	09/2012 - 02/2016
70	388 HP	From 09/2015

MODEL X

Description	Horse Power	Year
90D AWD	525 HP	From 09/2015
P90D AWD	772 HP	From 09/2015
75D AWD	525 HP	From 06/2016
P100D AWD	772 HP	From 10/2016
60D AWD	525 HP	From 06/2016
100D AWD	525 HP	From 08/2017
EV AWD	573 HP	From 09/2019
EV AWD	670 HP	From 01/2021
Plaid AWD	1020 HP	From 01/2021

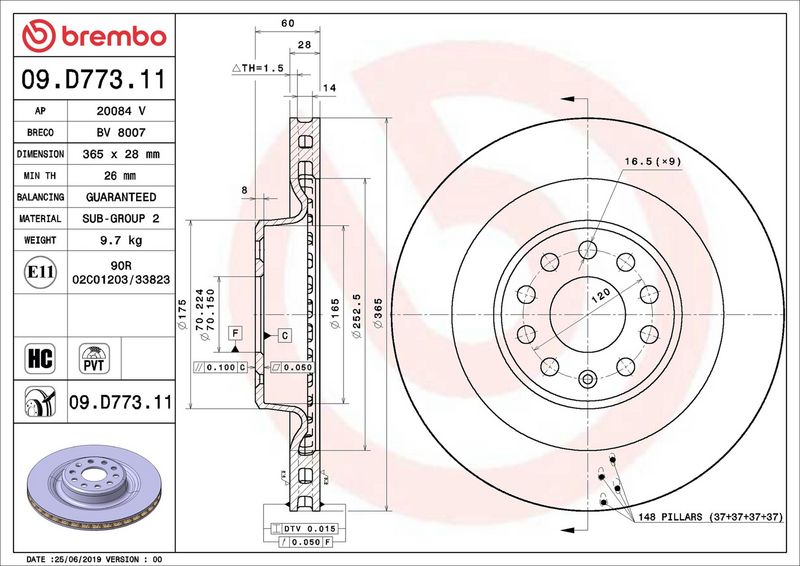

The Brembo 09.D773.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 9 mounting holes, and 70 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 28

Number of Holes : 9

Height [mm] : 60

Centering Diameter [mm] : 70

Outer Diameter [mm] : 365

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 26

Brembo 09.D773.11 Brake Disc
